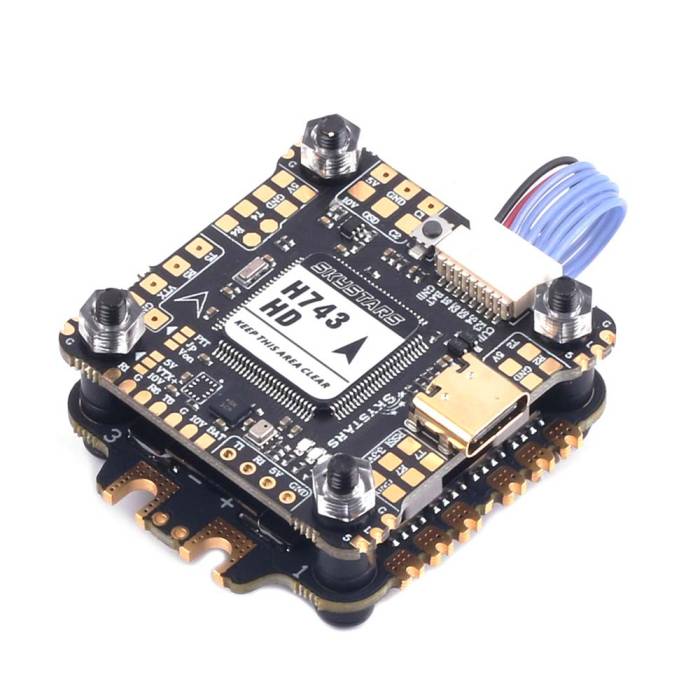

The SkyStars Fly Stack features a H743 Single Gyro HD Flight Controller and a KO60 BLHeli_32 4-in-1 ESC with a 30x30 mounting pattern.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• 24 high-quality 5x6 MOSFETs
• latest BLHeli_32 firmware
• 128K PWM output
• Best performance available

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

H743 HD FC

• MCU: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash
• Gyro: BMI270 single
• Baro: BMP280
• OSD: AT7456E
• Blackbox: 16M
• 8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
• 8x PWM outputs
• 1x I2C
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
• USB Type-C(USB2.0)
• 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
• 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
• Dual Camera Inputs switch
• VTX 10V/Vbat filtered power ON/OFF switch
• DJI FPV OSD is supported by any spare UART
• Vbat Input: 7~25V (2~6S LiPo)
• BEC: 5V 2A Continuous (Max 3A)
• LDO 3.3V: Max 250mA
• Firmware: Betaflight - SKYSTARSH7HD
• Mounting: 30.5 x 30.5mm
• Dimensions: 39.5 x 39.5 x 7.8 mm
• Weight: 10.1g

KO60 60A BLHeli_32 4-in-1 ESC - 30x30

• Mount: 30.5mm x 30.5mm
• Supports 3-6S
• ESC weight: 14.1g
• Continuous current: 60A
• 32-bit ARM Cortex MCU 32F051 48MHz Processor
• Telemetry: YES
• Current Sensor: YES
• Drive signal: DSHOT150, DSHOT300, DSHOT600 / Proshot1000 / Oneshot / Multishot
• PWM: Up to 128K
• Firmware: BLHeli_32
• BEC: No

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Skystars Fly Stack - H743 Single Gyro HD FC + KO60 60A BLHeli_32 4-in-1 ESC - 30x30
