Skystars Fly Stack - F722 Mini HD Pro FC + KM35 PRO 35A BLHeli_32 3-6S 4-in-1 ESC - 20x20

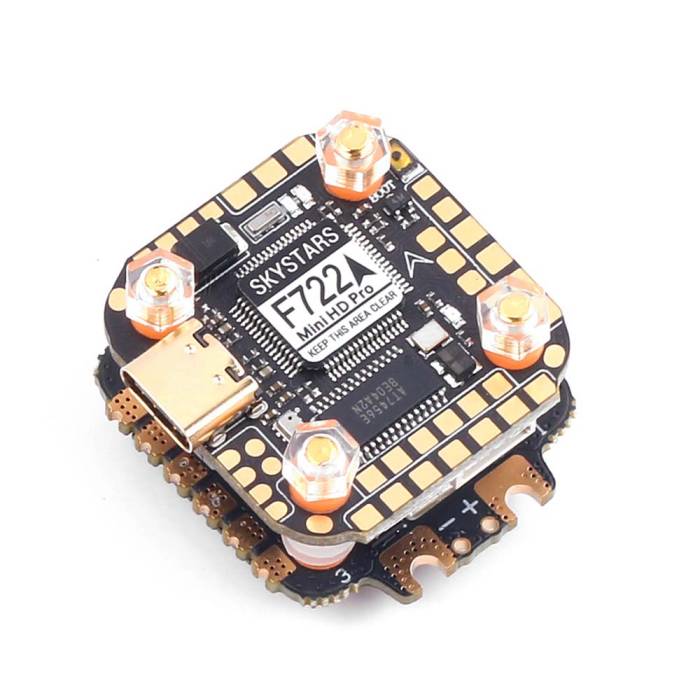

The SkyStars Fly Stack features an F722 Mini HD Pro Flight Controller and a Kramam PRO 35A BLHeli_32 4-i-n1 ESC with a 20x20 mounting pattern!

About this product

The SkyStars Fly Stack features an F722 Mini HD Pro Flight Controller and a Kramam PRO 35A BLHeli_32 4-i-n1 ESC with a 20x20 mounting pattern!

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

Features

  • Designed the LED installation position in the four corners, supporting WS2812 Programable LED.
  • Supports serial receivers (CRSF, SBUS, iBus, Spektrum). Support 3.3V Satellite Receiver.
  • High-performance / low-noise / high-sensitivity IMU. BMI270 with 6-axis gyro and accelerometer.
  • Support connect DJI HD air module.
  • Input voltage10V-26V (3-6S)
  • Automatic voltage monitoring.
Skystars Fly Stack - F722 Mini HD Pro FC + KM35 PRO 35A BLHeli_32 4-in-1 ESC - 20x20

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

F722 Mini HD Pro FC

  • MCU:  STM32F722RGT6 216MHz
  • IMU: BMI270 (SPI)
  • OSD: Betaflight OSD &  DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6)
  • Barometer: YES
  • Buzzer Pad: YES
  • 5V 2A & 10V 2A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 16MB
  • Firmware: SKYSTARS F7HDPRO
  • Dimensions: 31x30x7.8mm
  • Mounting Holes: Standard 20mm/M3 or M2 square to the center of holes
  • Weight: 6g

KM35 PRO 35A BLHeli_32 4-in-1 ESC

  • Input voltage: 3-6S LiPo
  • Con.Current: 35A
  • Peak Current: 45A≥ 10S
  • Firmware: BLHeli_32
  • Support: Dshot 600/1200
  • Mounting hole : 20X20 mm/M3
  • BEC: No
  • Product size: 31*36*3.9mm
  • Weight: 7.8g

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x Skystars Fly Stack - F722 Mini HD Pro FC + KM35 PRO 35A BLHeli_32 4-in-1 ESC - 20x20

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS

More Information

SKU 19717
Manufacturer SkyStars
Mounting Pattern 20x20mm (Micro)
UPC (GTIN) 724376345694
Item Returns This item can be returned
