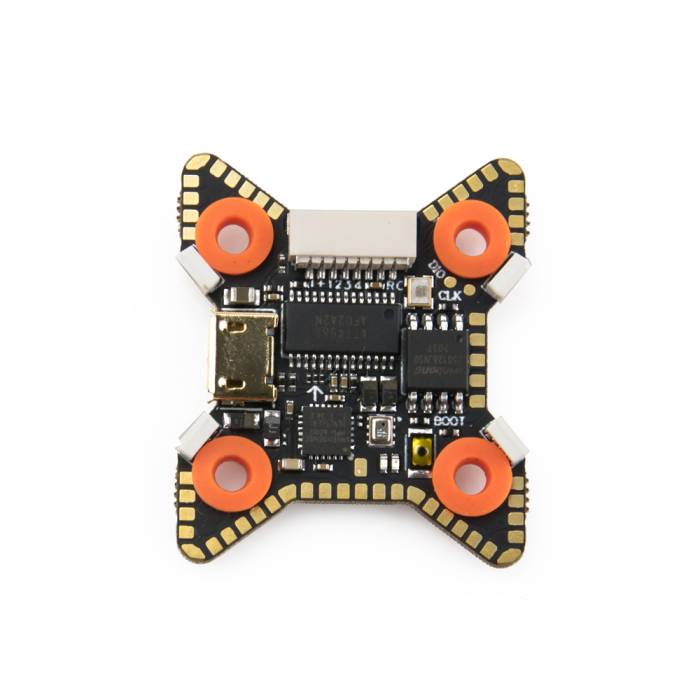

SkyStars F7 3-6S 20x20 HD Flight Controller

SkyStars F7 3-6S 20x20 HD Flight Controller

SkyStars F7 3-6S 20x20 HD Flight Controller
The SkyStars F7 3-6S 20x20 HD Flight Controller features 6 hardware UARTS (UART1,2,3,4,5,6), STM32F722RGT6 216MHz MCU, buzzer pad, barometer, Betaflight OSD & DJI HD OSD and supports DJI!

About this product

The SkyStars F7 3-6S 20x20 HD Flight Controller features 6 hardware UARTS (UART1,2,3,4,5,6), STM32F722RGT6 216MHz MCU, buzzer pad, barometer, Betaflight OSD & DJI HD OSD and supports DJI!

Specifications

  • MCU: STM32F722RGT6 216MHz
  • IMU: MPU6000 (SPI)
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6)
  • Barometer: YES
  • Buzzer Pad: YES
  • 5V 2A & 10V 2A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 16MB
  • Firmware: SKYSTARS F7HD
  • Dimensions: 35x28x7mm
  • Mounting Holes: Standard 20mm/M3 square to the center of holes
  • Supports DJI
  • Weight: 4.2g

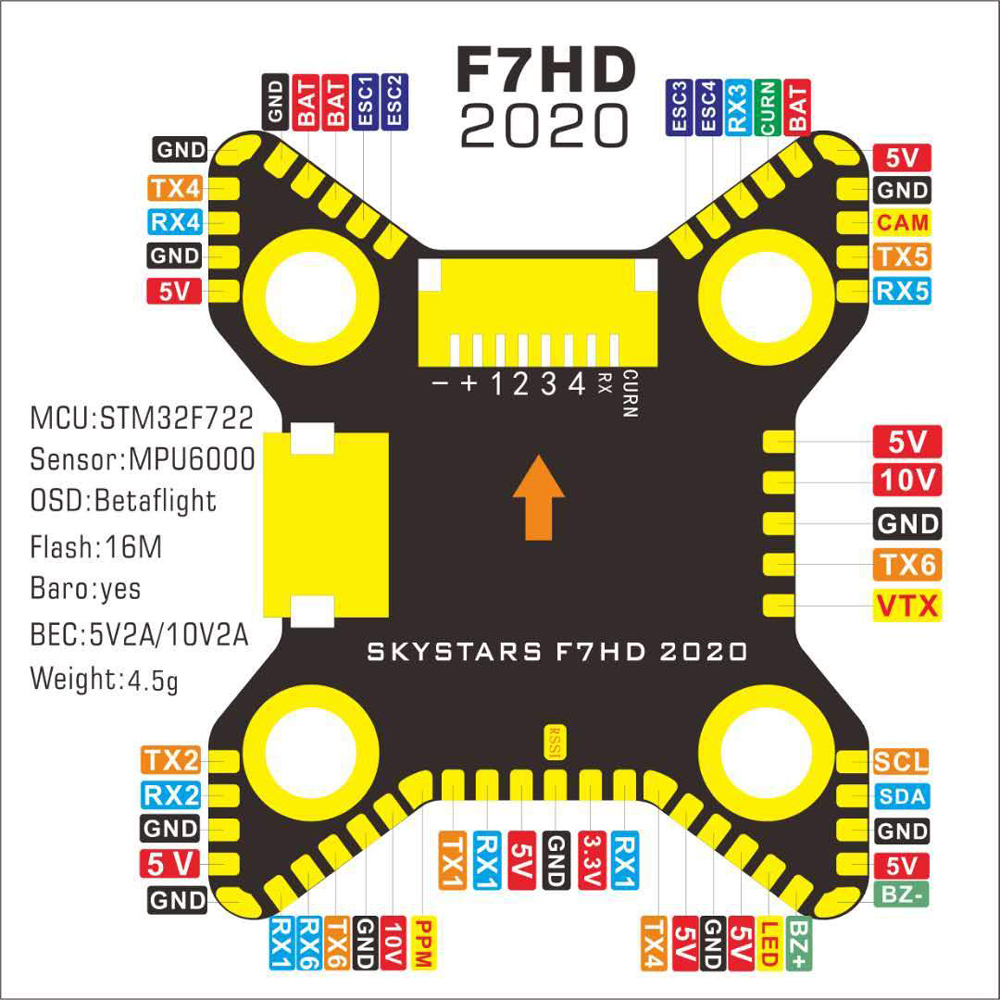

Diagram

Includes

  • 1 x SkyStars F7 3-6S 20x20 HD Flight Controller


More Information

SKU 14884
UPC (GTIN) 789862854982
Manufacturer SkyStars
Mounting Pattern 20x20mm (Micro)
NDAA Compliant No
Item Returns This item can be returned
