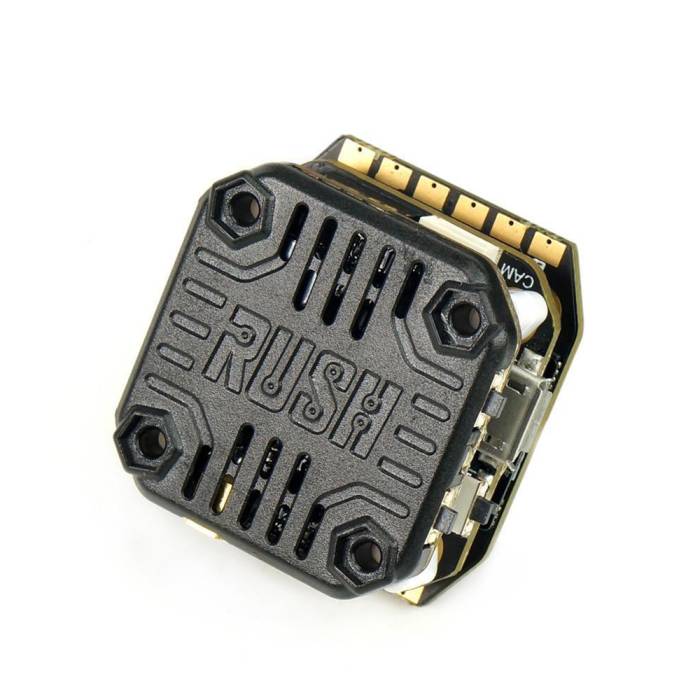

The Rush Mini Stack + F35 35A Stack from RUSHFPV brings BIG power all in a 20x20 mounting size! This stack includes the latest F7 processor and can push 30A all while bringing you the latest features!

Video

Features

• Compact size, superpower
• Available with an external mic

Specifications

RUSH CORE 7 Flight Controller

• Firmware: RUSHCORE7 (BETAFLIGHT)
• FC Programming: Supported
• Programming via: Betaflight configurator or Others
• Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300/600/1200, Proshot1000 and etc.
• Compatible with (Trabsmitter): PPM, Spektrum1024/2048, SBUS, SYMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
• OSD: Built-in, NTSC/PAL Supported
• MCU: STM32F722RET6 @216MHz
• BLACKBOX: Built-in ,16MB
• Voltage Monitoring: Supported
• Current Monitoring: Supported
• External Buzzer: Supported
• LED Control: Supported
• BEC: 5V@2A
• USB Port: MicroUSB
• Size: 28x29mm
• Weight: 5.6g
• Applications: 110-260mm FPV Drone

RUSH Matrix 30A BLHELI32 4-in1 ESC

• Cont. Current: 30A
• Peak Current: 40A
• BEC: N/A
• LiPo Cells: 3-5S (Recommend)
• Firmware: RUSH_MATRIX_30A Firmware
• Weight: 6.5g
• Size: 32x31.5x5.4mm
• Mounting Hole: 20x20mm

Rush Tank Mini VTX

• Input Voltage: 7-36V DC
• Output Voltage: 5V 1A
• 12V Input Current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
• Channels: 48CH RaceBand / LowRace
• Power: PIT/25/200/500/800 mW
• Installation Hole: 20*20mm
• Dimensions: 28*28*3.3 mm
• Weight: 4.46g(without dust cover), 5.4g(with dust cover)

Wiring Diagram

Includes

• 1 x RUSH CORE 7 Flight Controller
• 1 x RUSH MATRIX 30A Blheli_32 4 in 1 Brushless ESC
• 1 x Rush Tank Mini VTX
• 4 x M2 Nut
• 4 x M2 x25mm Screw
• 5 x Short Lsolation column
• 5 x Long Lsolation column
• 2 x SH1.0 3Pin Lock connection cable (60mm For receiver and LED strip)
• 2 x SH1.0 4Pin Lock connection cable (30mm/65mm For camera)
• 1 x MT30 Power plug (with cable)
