RunCam Split 2S FPV / HD Camera
The RunCam Split 2S takes the Split 2 and refines it even further, making this the best RunCam Split camera yet!
Share

About this product

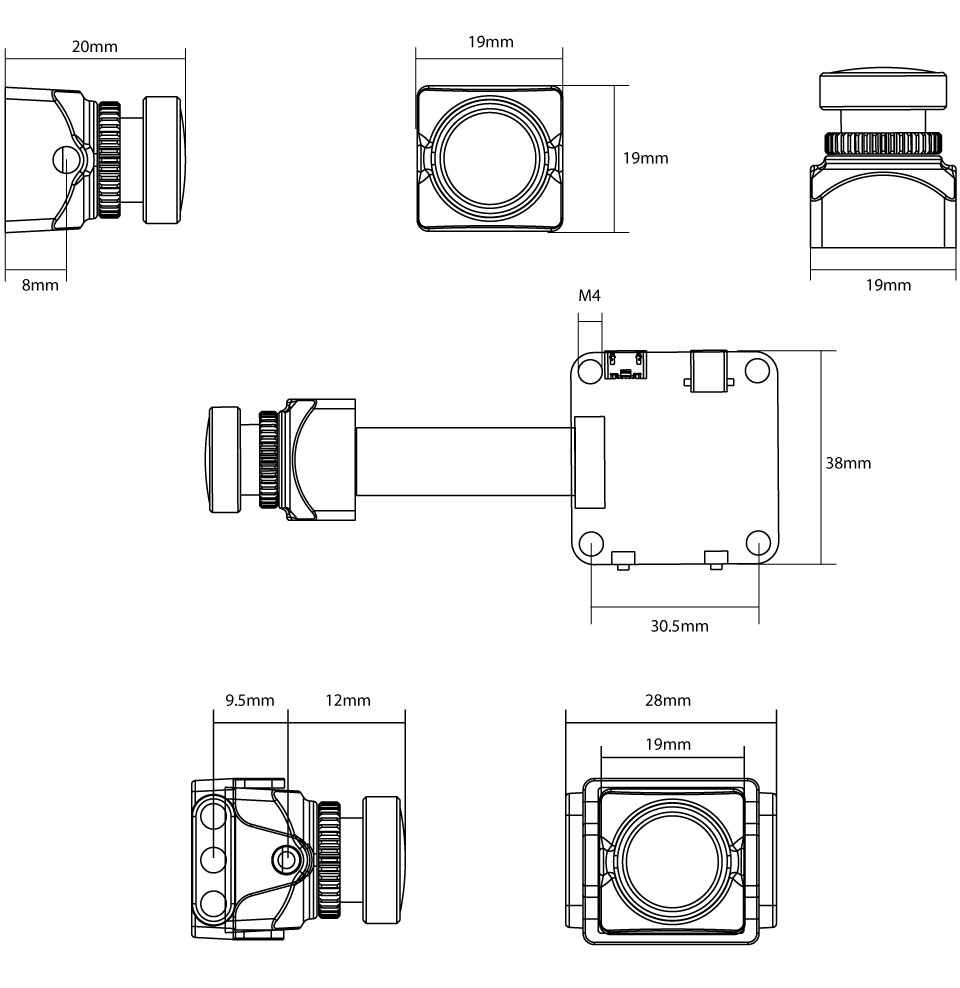

The RunCam Split 2S takes the Split 2 and refines it even further, making this the best RunCam Split camera yet! Some of the most notable changes are the reduction in size to the camera module. Going from 22 x 20mm to now at 19 x 19mm "micro" size. The PCB is 38 x 38mm with a standard 30 x 30 mm mounting pattern for universal mounting on standard sized mounting holes.

It also was reworked to give a slightly larger FOV compared to the Split 2 and even comes a few grams lighter!

The Split 2S comes equipped with the same great HD recording capability as before. Capturing full HD at 60fps.

Note: No longer includes WiFi module.

Features

  • 1080P/60fps HD recording & WDR FPV camera
  • Super WDR FPV image with low latency
  • Simultaneous HD recording and FPV output
  • Increased Field of View (FOV): FPV 140° / HD 170°
  • Replaceable lens
  • Wide voltage range

Specifications

Field of View(FOV) FPV FOV 4:3@140°, 16:9@170°/HD Recording 170°
Lens Thread Size M12*0.5
Video Resolution 1080@60fps/1080@50fps /1080@30fps/720@60fps
Video File Format MOV
Image Resolution 2 Megapixels
TV Mode NTSC (720*480)/PAL (720*576) Switchable
Interface Micro USB / UART
Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
WiFi Module No
Dimensions PCB 38*38mm/Lens Module 19*19mm
Power Input DC 5-15V / DC 5V(USB)
Working Current 650mA @5V / 270mA @12V
Net Weight 19g

Includes

  • 1x Camera
  • 1x SD Card Protector
  • 1x ABS Bracket
  • 1x 3pin FPV Silicone Cable (male)
  • 1x 3pin Silicone Cable (female)
  • 1x Set of Screws w/ Rubber Grommets
  • 1x Manual


More Information

SKU 9465
UPC (GTIN) 721248874900
Manufacturer RunCam
NDAA Compliant No
