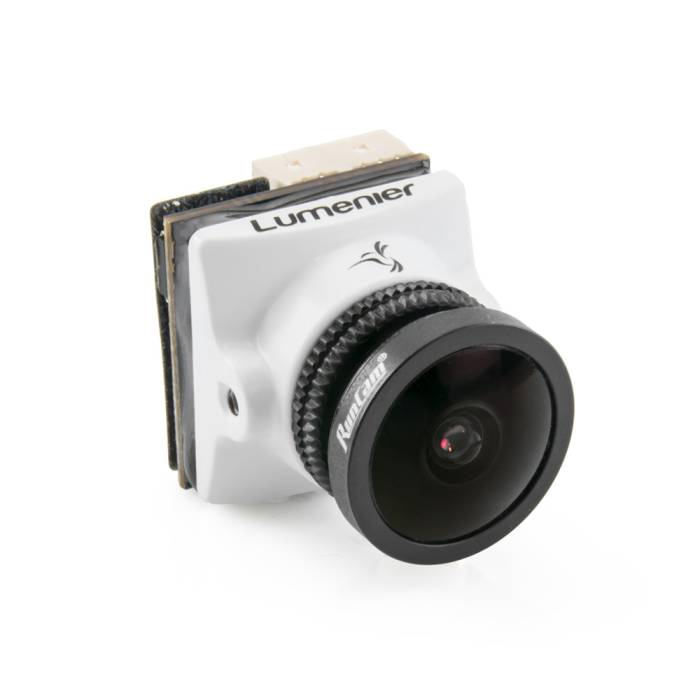

RunCam Micro Eagle - Lumenier Edition (White)

RunCam Micro Eagle - Lumenier Edition (White)

RunCam Micro Eagle - Lumenier Edition (White)
Check out the newer Runcam Phoenix 1000TVL CMOS FPV Camera - Lumenier Edition (White)

About this product

The shrinking FPV Camera trend continues with RunCam's newest addition to the micro series, the Eagle Micro! The Eagle Micro takes all of the amazing specs of the Eagle and has stuffed them in a tiny 8.9g camera. The Eagle Micro includes all the features that made the Eagle great, such as 6 levels of adjustable WDR and switchable 4:3 or 16:9 aspect ratio - even the same M12 lens, giving you amazing clarity rarely found in a micro camera!

Adaptability is important in FPV, that's why the Lumenier Edition comes with a full-size camera bracket, allowing you to use this micro-sized camera on full-size camera mounts. Additionally, if you mount your camera upside down or reverse, the Micro Eagle has vertical image flip and mirror.

The Lumenier Edition comes in a custom white camera shell for not only a cool look but also a great way to keep your camera cool from absorbing too much heat.

Note: RunCam is now shipping these with Key-boards. They have removed the remote control feature from most of their cameras from now on.

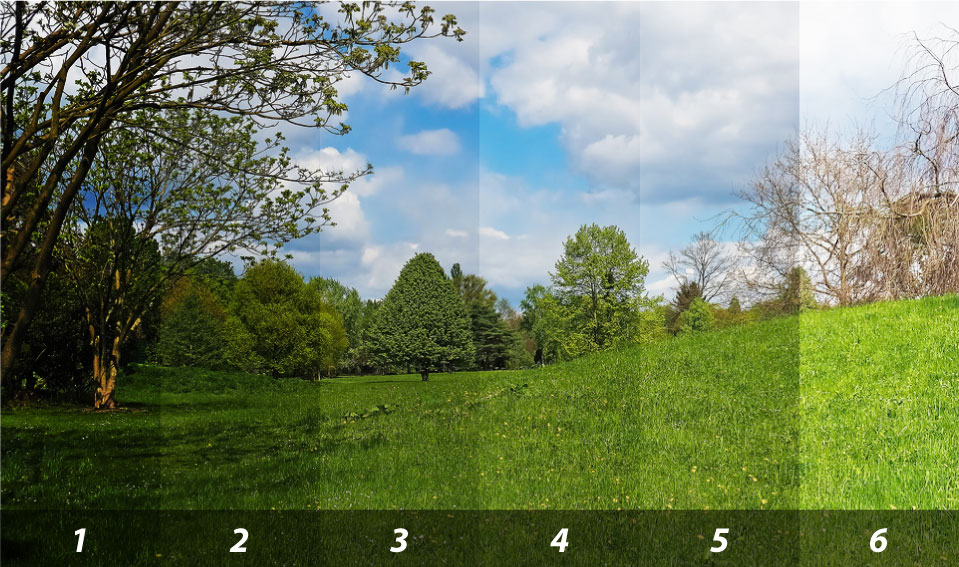

6 levels of WDR


Image Sensor 1/1.8" CMOS Sensor
Horizontal Resolution 800TVL
FOV 170 @ 16:9 FOV 140 @ 4:3
Screen Format 16:9 / 4:3 Switchable on OSD menu
Signal System NTSC / PAL Switchable on OSD menu
Mirror/Flip Yes
S/N Ratio >50dB
Electronic Shutter Speed Auto
Max Gain 1-9 Level
Min. Illumination [email protected]
WDR Level 1-6 available
Day/Night Auto/External/Color/B&W
Power DC 5-36V
Current 200mA@5V / 90mA@12V
Housing Material ABS
Net Weight 8.9g
Dimensions L19mm*W19mm*H22mm


User Manual


  • 1 x RunCam Micro Eagle Lumenier Edition FPV Camera
  • 1 x Aluminum bracket
  • 1 x Key-board
  • 1 x Set of screws
  • 1 x 3pin FPV silicone cable

More Information

SKU 8919
UPC (GTIN) 652118491579
Manufacturer RunCam
NDAA Compliant No
Item Returns This item can be returned
