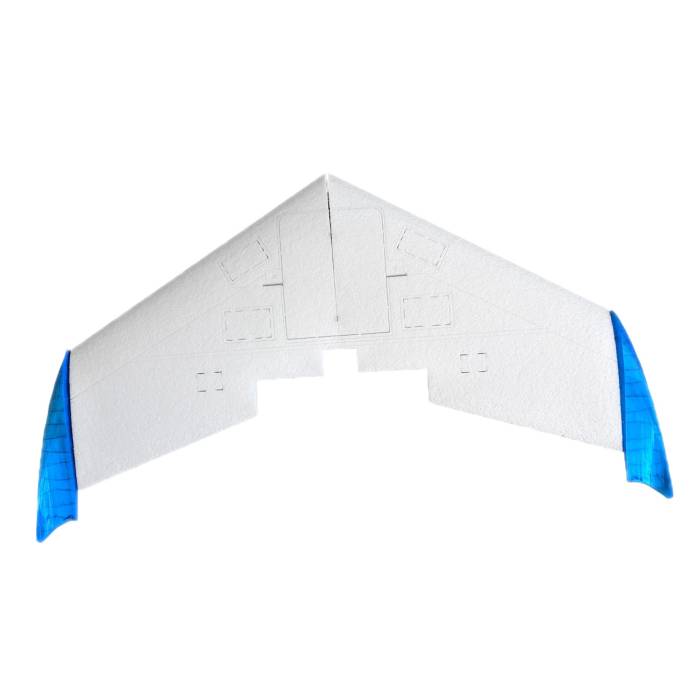

Ritewing Scout 45" Wing Kit

Ritewing Scout 45" Wing Kit

The Ritewing Scout is a high performance blended airfoil wing for long flight time and long-range flight. The little brother to the Ritewing Recon.

In Stock
$139.99
Description

This is the little brother of the newly introduced Recon. Same plane, same high performance, many of the same amazing features just in a slightly smaller form factor.

A new blended airfoil wing designed for long range and long flight times. The Scout delivers on performance and is taking advantage of all the latest technology from RiteWing Aeroworks. Incorporating new 3d printed winglets and the latest airfoil research, the Scout and its big brother the Recon are yet another set of high performing planes from RiteWing RC.

From Mr. Ritewing; Chris Klick, "Hey, guys here is my answer to the butter smooth crazy efficient long-range wing line up. These are blended foil master pieces...On the Scout which is the smaller version, the foam without the winglets sits at 36-inch wingspan. On the larger Recon, the foam before the winglets is at 45. You could use standard winglets or the new molded winglets. We still have a couple of new molded winglets in the works that will be releasing with these aircraft. The molded winglets right now on the 45 Recon take it up to about 54 inches. On the smaller Scout, it takes the 36 up to about 45 in."

"You can also see we have a little bit of a skid on the bottom below the winglet that has helped from them from getting damaged. In the picture, you can see how large the battery base are and all the equipment Bays for all your different gear. In this picture, you can see we have 12700 of 4 S. Depending on what cameras you put on the nose and what motors you go with you could easily go up to 17,000 milliamps of 4S. Basically 4S 4p 17000. The single cells are 4250. Or you can see in the other pictures at there is 10400 milliamps of 4S multi-star in there...You can see on the tri-blade propeller we have made custom acetyl prop stops. The pictures here are just a mock-up to show you what I have. You can see where the motor mount plate would need to be snapped off the back. This is The New Abs motor mount and the motor in the plane is a CP 2814 1150 KV."

"The goal is to have super durable long-range efficient aircraft that will fly longer fly farther and be more efficient than anything in its class. There is tons of room for your gear major capabilities and everything is wide open. We are trying to get away from fragile launch breaking and landings that stop your whole day of fun. We want something that is tough and keeps on coming back for more. Center fins are very low profile to keep the efficiency to the maximum. Winglets are very slick to keep all of the yaw minimalized. As far as the build goes it's pretty straightforward, builds exactly like a Hardcore series aircraft. The camera nose capabilities will be able to hold multiple different types of cameras."

Specifications

  • Wingspan 36" without wingtips
  • 45" with molded wingtips

Suggested Parts

  • 32g Metal servo kit
  • Wing100small control rod/horn kit (stock)
  • Wing250CF control rod / horn kit (upgrade)
  • 3D printed Winglet kit for Scout
  • Recon / Scout 3D printed GoPro Session Nose
  • Recon / Scout Laminate package
  • 28mm 3d printed motor mount
  • 2814 x 1250 kv / 60  amp esc COMBO
  • 2821 x 1250 kv / 60 amp esc COMBO (hotter setup)

Includes

  • EPP foam wing cores and beds
  • Coroplast/plastic fins and bays
  • 3D landing skids
  • 3D printed blended winglets (Color May Vary)
  • Balsa stock for control surfaces
  • Fiberglass spars
  • Aluminum/ABS motor mount

Required to complete build

  • Lamination film
  • Control hardware
  • All electronics, motor, propeller

Recommended building supplies

  • Amazing Goop glue
  • 3M Hi-Strength 90 Spray Adhesive
  • Spray paint of your choice (Rustoleum 2x Paint and Primer is our favorite!)
  • Sealing/Laminating Iron
  • A sharp snap-blade!
Additional Information
SKU 9014
Manufacturer Ritewing
UPC (GTIN) 721248872234
