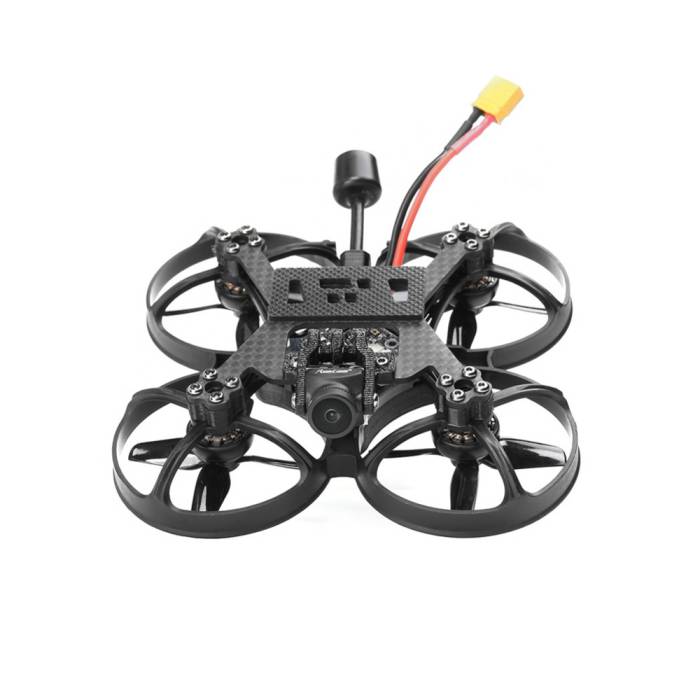

iFlight took their Alpha A85 and converted it to a pusher-style cinewhoop configuration, able to carry a naked GoPro or similar camera! This 2-inch BNF version comes equipped with a RunCam Nano 2. Able to nimbly fly thanks to its SucceX-D 20A F4 AIO Board and XING NANO 1303 5000KV motors!

Record incredible footage with the super lightweight and powerful Alpha C85 whoop!

Note: Batteries, Action Cameras, and Action Camera Mounts not included.

Features

• Butter smooth XING NANO 1303 5000KV (more torque and efficiency with longer flight times compared to 1105 motors)
• Ducts to protect the sensitive environment or yourself
• Pre-tuned with smooth cinematic settings
• Weight is 103.2 grams (without battery)
• Pusher configuration style frame kit
• Universal camera mount
• Pre-tuned and Pre-setup

Specifications

• Flight time cruising (including naked Hero8): 3-4 min (4S 450mAh), 5-6min (4S 650mAh)
• Receiver: TBS Crossfire or FrSky XM+ options available
• VTX: 5.8G SucceX Micro Force VTX 300mW
• Ducted propeller size: 2 inches (85mm)
• SucceX-D 20A Whoop F4 AIO Board
• Motors: XING NANO 1303 5000KV
• Weight: 103.2g (without battery)
• Camera: RunCam Nano 2
• FC pattern: 25.5*25.5mm
• FPV cam spacing: 14mm
• Body size: 60*60mm
• Wheelbase: 85mm

FC // SucceX-D 20A F4 Whoop AIO

• Mounting pattern：25.5*25.5mm/φ3mm
• Constant current：20A，25A（Burst）
• Target：IFLIGHT_F411_PRO
• ESC Firmware：G-H-30 BLS
• BEC output：5V 2A/10V 2A
• INA pad：UART2 (nR2)
• Connector：Micro-USB
• Current sensor：yes
• Size：30.5*30.5mm
• ESC Telemetry：no
• MCU：STM32F411
• BLHeli：BLHeli-S
• Gyro：MPU6000
• Blackbox：8MB
• Barometer：no
• Input：2-5S

5.8GHz SucceX Micro 300mW VTX

• Mini VTX size: 20x20mm, 2mm hole, total weight (incl. VTX): 3.4g
• Power: PIT/25/100/200mW/300mW
• Antenna interface: IPEX (UFL)
• VTX protocol: IRC Tramp
• Size: 13.5x14.5mm
• Weight: 1.4g

FACTORY SETUP, WIRING DIAGRAM, and ANGLE MODE

This BNF comes pre-built and set up with all necessary parameters to bind and fly. We also added a basic filter and PID tuning as well as some Betaflight tweaks to enhance the flight experience.

Reflashed your drone but didn't back up the setup? Messed up the whole tune and want our factory tune back?

No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK

Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"

Recommended Parts (Not Included)

• Battery 4S 450mAh

Includes

• 1x iFlight Alpha C85 BNF Analog Whoop /w RunCam Nano 2 (pre-built and tested)
• 2x HQProp 2" 4-blade Propellers (Set of 4 - Color May Vary)
• 1x Micro USB Charging Cord
• 1x USB-C Charging Cord
• 1x iFlight Lipo Strap
• 1x Hardware Kit

Note: Batteries, Action Cameras, and Action Camera Mounts not included.
