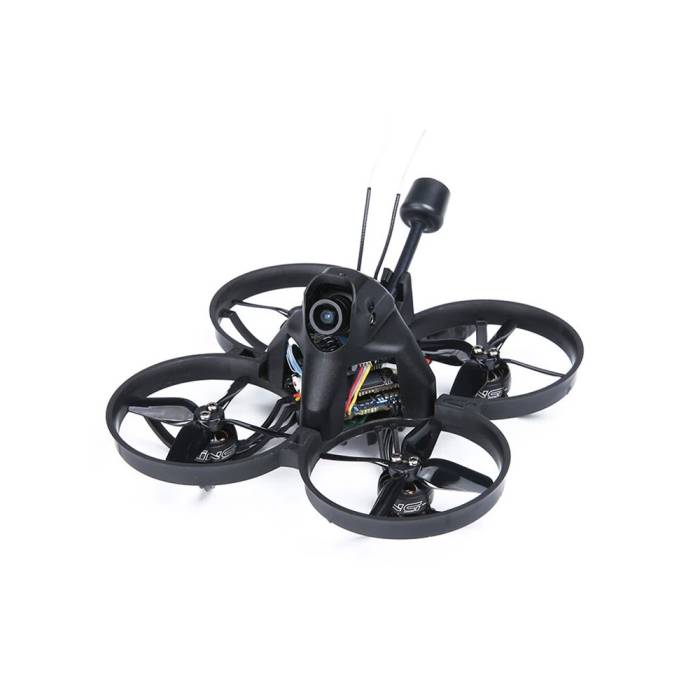

iFlight Alpha A85 Whoop - HD w/ Caddx Loris 4K
iFlight Alpha A85 Whoop - HD w/ Caddx Loris 4K
Select options for stock status
About this product
Let's welcome the iFlight Alpha series, a new way to fly FPV. This 2-inch quad is the analog version of the Alpha A85 HD Whoop. The A85 Whoop w/Caddx Loris 4K features the SucceX-D 20A Whoop F4 AIO Board and XING NANO 1303 5000KV Motors.
Record incredible 4K HD footage with the Alpha A85 super lightweight and powerful whoop!
Features
- 76 grams (without battery)
- Butter smooth XING NANO 1303 5000KV (more torque and efficiency with longer flight times compared to 1105 motors)
- Ducts to protect the sensitive environment or yourself
- Pre-tuned with smooth cinematic settings
- iFlight Albatross 5.8G RHCP light antenna upgrade (included)
- iFlight Albatross 900mhz light micro antenna upgrade (included with every Crossfire Nano RX)
Specifications
- SucceX-D 20A Whoop F4 AIO Board
- XING 1303 5000KV FPV Micro Motor
- Wheelbase: 85mm
- Body size: 125*125mm
- Ducted propeller size: 2 inch
- FC pattern: 25.5*25.5mm
- FPV cam spacing: 14mm
- Weight: 76.5g (without battery)
- Flight time: 5-7 min cruising (4S 450mAh)
FACTORY SETUP and WIRING DIAGRAM
This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some Betaflight tweaks to enhance the flight experience.
Reflashed your drone but didn't backup the setup? Messed up the whole tune and want our factory tune back?
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK
FC // SucceX-D 20A F4 Whoop AIO
- Size：30.5*30.5mm
- Mounting pattern：25.5*25.5mm/φ3mm
- Connector：Micro-USB
- MCU：STM32F411
- Gyro：MPU6000
- Blackbox：8MB
- BEC output：5V 2A/10V 2A
- INA pad：UART2 (nR2)
- Barometer：no
- Constant current：20A，25A（Burst）
- Input：2-5S
- Current sensor：yes
- BLHeli：BLHeli-S
- ESC Telemetry：no
- Target：IFLIGHT_F411_PRO
- ESC Firmware：G-H-30 BLS
Recommended Parts (Not Included)
Includes
Alpha A85 w/Caddx Loris Quad BNF Included Components and Parts
- Prebuilt and tested Quadcopter
- 1 x Alpha 85mm Frame
- 1 x Caddx Loris 4K Camera
- 1 x 5.8G SucceX Micro Force VTX 300mW
- 1 x iFlight Albatross RHCP 5.8g light antenna
- 2sets HQ 2 inch 4-blades (Set of 4 - Color May Vary)
- 1 x iFlight Lipo Strap
iFlight Support
More Information
| SKU | 14421 |
|---|---|
| Manufacturer | iFlight |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
