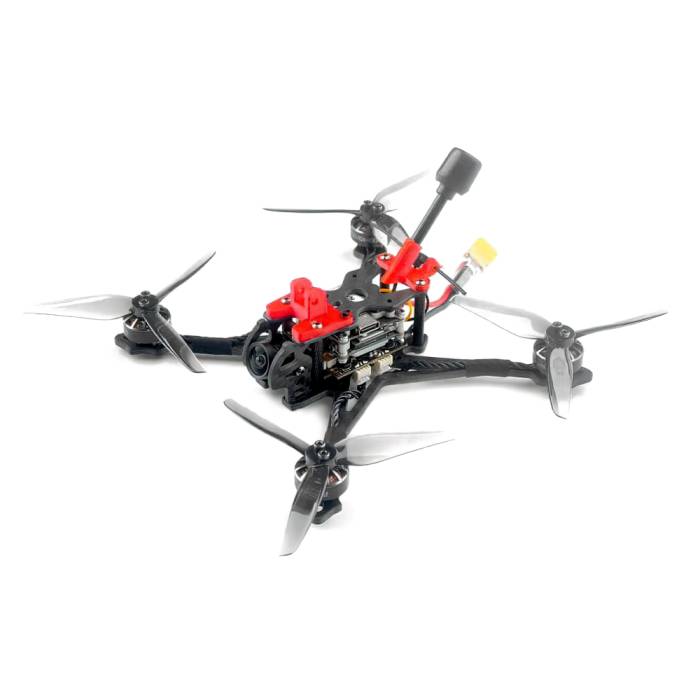

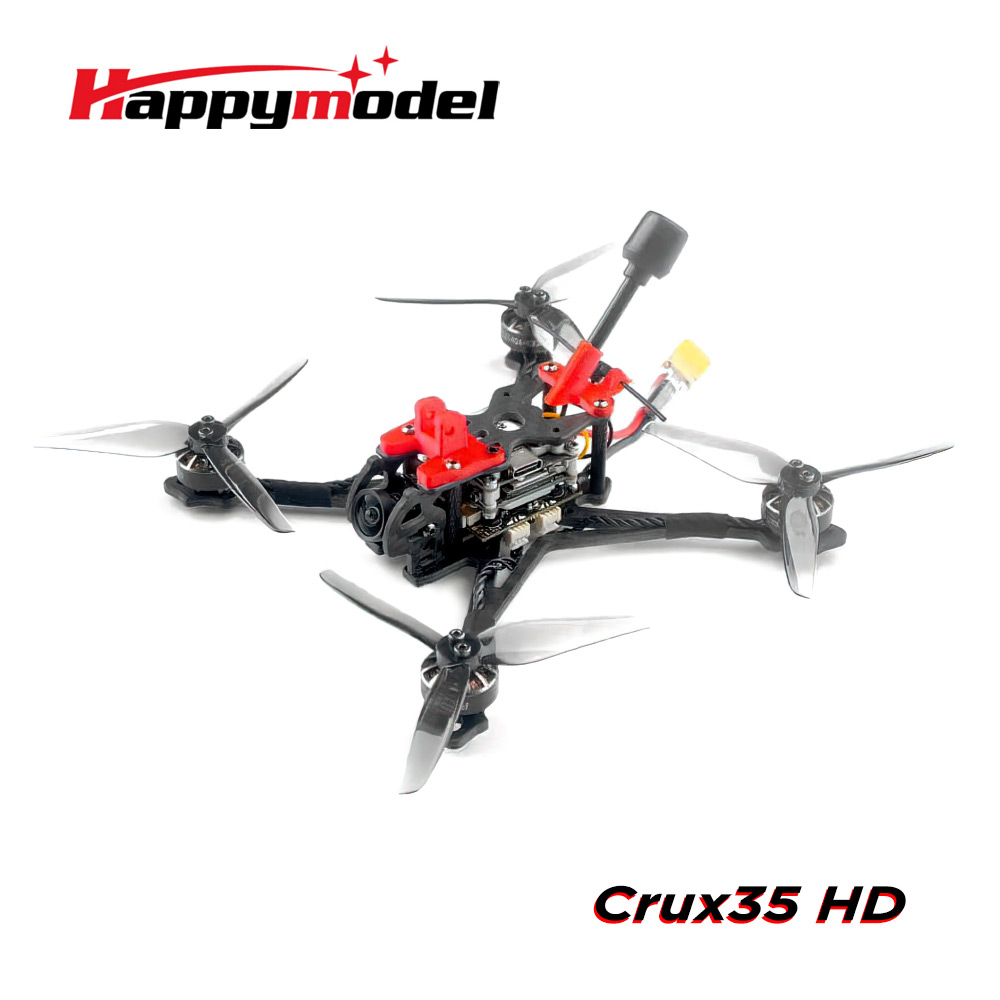

The Happymodel Crux35 V2 is an ultra-lightweight 3.5" drone by Happymodel is an excellent micro racing drone that comes with the CrazyF411 flight controller, EX1404 brushless motors, and the Caddx Nebula Nano Vista to give you a great flying experience! The HQPROP 3.5-inch three-blade propellers ensure the largest thrust-to-weight ratio.

Receiver options: Integrated SPI ELRS or SPI FrSky D8/D16

Note: SPI FrSky version comes with Betaflight 3.5.7 firmware in order to get a better RSSI range. Bind code is “Frsky_bind” in the CLI Command.

VIDEO: Long Flight time Rippin // Crux35 // Super Agile!!

Features

• Integrated ExpressLRS SPI receiver or Frsky SPI D8/D16 receiver
• Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
• Can be equipped with Naked Gopro or SMO4K
• High efficiency EX1404 power system
• HD video transmission
• Supports 3-4S battery

Specifications

• Receiver option: SPI ExpressLRS 2.4GHz or SPI Frsky D8/D16 (S-FHSS compatible)
• Size: 130mmx130mmx45mm (without propellers)
• Camera option: HD version Nebula Nano +Vista
• Flying time: 9min~15min 4s 750mah battery
• Weight: Crux35 HD 108gram
• Product name: Crux35 HD
• Wheelbase: 150mm
• Brand: Happymodel

CADDX NEBULA NANO VISTA KIT

• Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
• Hardware included:Vista/Nebula nano/Coaxial cable/Antenna
• Dimensions: Vista Kit: 30x29x13mm Camera: 14x14x21mm
• Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
• Operating Temperature Range: 32° to 104° F (0℃ ~40℃)
• Weight: Vista KIT(camera included):24g/Antenna:2.5g
• Power output: 25mW/200mW/500mW/700mW
• Supported Flight Control System: F3,F4,F7
• Min. Latency (end-to-end):720p 60fps: 32ms
• Operating Frequency: 5.725-5.850GHz
• I/O Interface: USB-C,IPEX,3-in-1 Port
• Goggles: work with DJI goggles
• Coaxial Cable:80mm/120mm
• Camera:Sensor: 1/3''CMOS
• FOV: 150°[D],122°[H],93°[V]
• Input Power: 7.4-26.4V
• Shutter: Rolling shutter
• Lens: 2.1mm,f/2.1
• Model: Vista Kit

CrazyF411 FC

• Power supply: 2-4S battery input (DC 8V-17V)
• Built-in Frsky D8/D16 SPI receiverBuilt-in 2.4G Power Amplification
• Built-in voltage detectionFirmware target: MATEKF411RX
• Built-in 20A(each) Blheli_S 4in1 ESC Dshot600 ready
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: MPU-6000(SPI connection)
• Built-in Betaflight OSD(SPI Control)
• Board size: 28.5 * 28.5MM
• Built-in Current meter
• Built-in 5V 1.5A BEC

ONBOARD ESC

• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Factory firmware: O_H_5_REV16_8.HEX
• Support BLHeliSuite programmable
• MCU upgraded to EFM8BB21
• Default protocol: DSHOT300

PROPELLERS

• Propeller Diameter: 3.5 inch
• Material : Poly Carbonate
• Hub Diameter : 10mm
• Hub Thickness:4.7mm
• Shaft :1.9/1.5/1.9mm
• Adaptor Rings : NO
• Weight : 1.5g
• Blades : 3
• Pitch : 2

MOTORS

• Motor Dimension(Dia.*Len):Φ15mm*15mm
• Shaft Diameter: Φ1.5mm
• Configu-ration:9N12P
• Stator Diamter:14mm
• KV options: KV3500
• Stator Length:4mm
• Mode: EX1404
• Weight(g):9g

Recommended (Not Included)

• Battery: 4S 750mAh or maximum 4S 1100mAh

Includes

• 1X Happymodel Crux35 4S HD Freestyle Racing Drone w/ Caddx Nebula Nano ( ELRS or FrSky Options)
