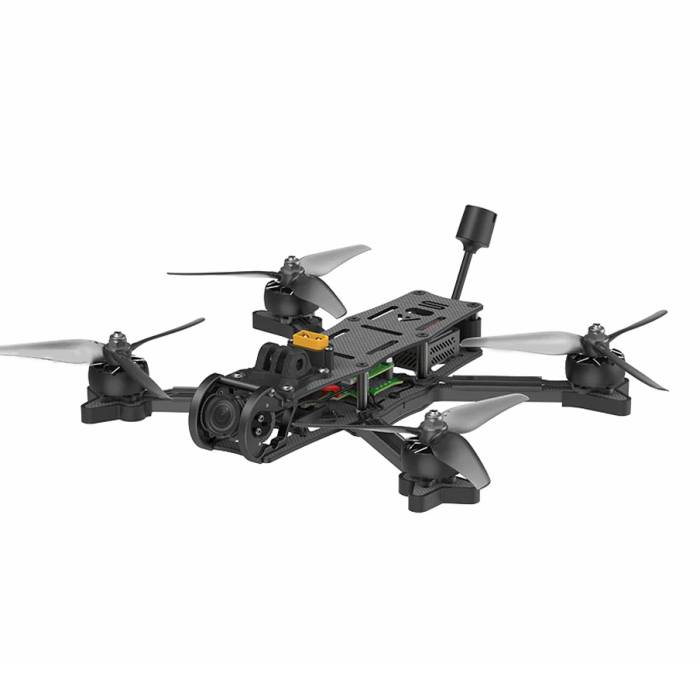

AOS RC V5 Drone HD w/ DJI 03 - 6S
AOS RC V5 Drone HD w/ DJI 03 - 6S
Select options for stock status
About this product
Note: (Insert any product options here in black text with options in bold.)
Example: "Choose from two KV's: 1800KV (4S) or 2500KV (6S)."
VIDEO: The BEST OF EVERYTHING in a 5" Bind and Fly?!?! The AOS 5 V2 BNF.
Features
- Secured Battery Plug with Anti-Spark Filter
- Topology-optimized truss Design Arms
- Low-Latency Digital Transmission
- 2.5mm Top and Bottom Plates
- Optimized Camera Protection
- 32x32 GoPro Mounting
- Built by iFlight
- Low Vibration
ADVANCED PATENT PENDING ANTI-VIBRATION TECHNOLOGY
Say goodbye to unwanted vibrations that can hinder your drone's performance. The AOS RC V5 boasts the new patent-pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50% (compared to AOS 5 EVO). This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.
DURABLE AND VERSATILE 7075 ALUMINUM CAMERA CAGE
The AOS RC V5 has an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount designed for the DJI O3 camera, fully supporting ND filters.
FLEXIBLE BATTERY MOUNTING
Experiment with different battery configurations by choosing lengthwise or "toilet tank" battery mounting options. This flexibility allows you to optimize your drone's balance and performance based on your flying style and preferences.
IMMERSIVE 155° FPV EXPERIENCE
Immerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 users and guarantees an immersive flight experience for professionals and enthusiasts.
REINFORCED ARM AND STACK MOUNTING
Say goodbye to stripping threads! The arm and stack mounts on the AOS RC V5 are reinforced with steel press-nuts for easy assembly, rock-solid mounting, and enhanced durability.
THE MOTORS
Exhilarating speed, silky smooth flight after flight. iFlight's XING2 2207 motors provide power and durability with a 7075 Aluminium unibell design, 5mm titanium shaft, Japanese NSK bearings, N52H center slotted arc magnets, and an integrated o-ring for bearing protection.
THE ELECTRONICS
Blazing fast with less filter delay for a more locked-in flight feel. The F7 flight controller takes maximum advantage of the vibration performance of the frame with a custom filter tune to reduce latency and improve prop wash handling. With OSR4 mode enabled in BF4.3, the BMI270 gyro delivers latency and noise performance that matches or exceeds that of the MPU6000. A BLHeli32 ESC smoothly delivers power to the motors and the massive 55A rating ensures the motors will have all the power they could ever need.
Specifications
- Operating Temperature Range: -10°C to 40°C (14°F to 104°F)
- Max Hover Time: Approx. 7.5 mins with 1400mAh
- Dimensions (L×W×H): 175×135×32.5 mm
- iFlight AOS V5 Drone HD w/ DJI O3 - 6s
- Max Speed: 190 km/h (Manual Mode)
- Max Wind Speed Resistance: Level 7
- Video Transmission: DJI O3 Air Unit
- Maximum Takeoff Altitude: 6000 m
- Takeoff Weight: Approx. 1000 g
- ESC: BLITZ Mini E55 4-IN-1 ESC
- Prop: Nazgul 5-inch propellers
- Motor: XING2 2207 motors
- Frame: 220 mm wheelbase
- Product Name: AOS RC V5
- Max Flight Distance: 5 km
- Antennas: 1 Antenna
- FC: BLITZ Mini F722
- GNSS: N/A
VIDEO TRANSMISSION
- Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
- Communication Bandwidth: Max 40 MHz
- Live View Quality and Latency
WITH DJI FPV GOGGLES V2:
- 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms
- 810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms
WITH DJI GOGGLES 2:
- 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms
- 1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms
TRANSMISSION
- Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
- Max Video Transmission Bitrate: 50 Mbps
- Audio Transmission: N/A
- Power Input 7.4 - 26.4 V
IMPORTANT NOTES
- Don't worry about tuning; we've already done that for you! A basic PID and filter tuning have been applied to ensure a great flight experience.
- To restore lost tunes or updates, please check out our linked article on "Firmware/Factory Dumps."
- By default, angle mode (self-balancing level mode) is enabled to ensure your first flight doesn't end in a mess!
- Please check out our article "How to disable Angle-Mode and activate Acro-Mode."
Links
- (Insert links such as manuals, firmware, etc)
Includes
1x AOS RC V5 Drone HD w/ DJI O3 - 6S
2x Battery Pads
2x Prop (Pairs)
Featured Videos
VIDEO: The best 5" freestyle drone just got better. AOS5 bind-n-fly from iFlight
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 21894 |
---|---|
UPC (GTIN) | 724376358786 |
Manufacturer | AOS RC |
NDAA Compliant | No |
Item Returns | This item can be returned |
