iFlight Chimera7 LR 7" Freestyle Quadcopter - HD w/ DJI Digital System

iFlight Chimera7 LR 7" Freestyle Quadcopter - HD w/ DJI Digital System

Select options for stock status

Only left for same day shipping. Order now!
iFlight Chimera7 LR 7" Freestyle Quadcopter - HD w/ DJI Digital System
The Chimera7 comes with the DJI FPV Digital HD System and can carry bigger batteries to give you a longer flight time while getting HD footage!

About this product

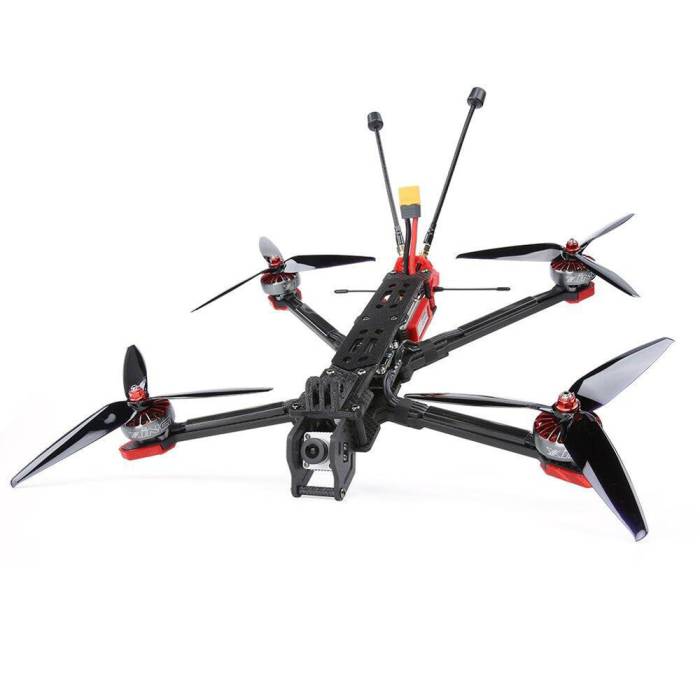

Introducing the iFlight Chimera7 7" 6S LR HD Freestyle Quadcopter! This 7" long-range can fly places never seen before, and can carry bigger batteries to give you a longer flight time! The Chimera7 comes with the DJI FPV Digital HD System, and is mounted into a super-stiff frame for minimum resonance, and includes 2806.5 motors for maximum 7" prop control. You can fly big batteries (top-mounted) or even bigger batteries (bottom-mounted), 6 cells recommended, or 5 cells for slow cruising, but whatever style you fly - a Lipo or Lion pack will just do the job.

This freestyle quadcopter comes with a GPS functionality to help you find your way back when flying, and also Betaflight GPS Rescue mode (default OFF to prevent unexpected behavior. Setup instructions included).

 Get incredible HD footage, all while capturing incredible footage at high speeds!



  • 6mm rigid arm design for more stiffness
  • Top- and bottom battery mount option
  • XING 2806.5 efficient wide stator motors
  • GPS pre-installed for more safety at a distance
  • GoPro TPU bottom stand (GoPro protector not included)
  • 360° TPU protection, DJI cam protection, and antenna mounts
  • DJI FPV Air Unit, buttery-smooth 720p\120fps FPV feed (TPU soft mounted)
  • No props in view (DJI Air unit record in 1080p/60fps)
  • Battery voltage LED status light (illuminated IF logo on the bottom)



  • Wheelbase: 320mm
  • Main body dimension: 285*199mm
  • Bottom to top distance: 20mm
  • Arm thickness: 6mm
  • Bottom plate thickness: 3mm
  • Top plate thickness: 2mm
  • Upper(middle) plate thickness: 3mm
  • Camera plate thickness: 3mm (included TPU inserts)

SucceX-D F7 V2.1 Stack (50A 4-in-1 ESC)

SucceX-D F7 V2.1 TwinG

  • MCU: 216MHz STM32F722
  • Gyro:2x ICM20689
  • Baro: YES
  • Blackbox:32MB
  • Betaflight OSD: YES
  • BEC: 5V 2.5A / 9V 2.5A
  • Current sensor scale: 100
  • Inverter for SBUS input (UART2-RX)
  • Smart audio & Tramp VTX protocol supported
  • Beeper pad: Yes
  • RSSI input pad: No
  • UARTs:5
  • Motor outputs: 8
  • 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
  • 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)
  • BLHeli32 Telemetry:RX5
  • Input voltage:recommended 2-6S, MAX 8S
  • Firmware Target: IFLIGHT_F722_TWING
  • Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ3mm
  • Dimensions: 36*36mm
  • Weight: 7.5g
  • USB Type-C

SucceX 50A ESC

  • MCU: STM32F051
  • Up to 48kHz PWM frequency
  • Capacitance: 470uF/50V
  • Current Sensor: Yes
  • Input: 2-6S LIPO
  • Constant: 50A / Burst: 60A
  • BlHeli32 telemetry: Yes
  • BEC: No
  • Supports up to Dshot1200, Proshot, Oneshot, Multishot
  • Target: iFlight-BL32-4IN1
  • Weight: 14.4g
  • Mounting pattern: 30.5*30.5mm/Φ3mm
  • Dimensions: 43*39mm (including the power pads)

Pre-Tuned & Pre-Setup

  • Don't worry about tuning, iFlight did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
  • To restore lost tunes or updates, please check iFlight's linked article on "Firmware/Factory Dumps"
  • Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
  • GPS Rescue is OFF by default to prevent from unwanted or unexpected drone behavior.
  • Please check iFlight's linked article on "GPS Rescue Mode // Setup"

Additional Suggested Parts (Not Included)

  • DJI HD FPV Goggles
  • Radio Controller - Based on Receiver Choice
  • 5S 3000mAh above (slow cruising)
  • 6S 2500mAh above
  • GoPro Mounts


The DJI Remote Controller is recommended for beginners since you won't need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don't choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.


  • 1 x Chimera7 frame
  • 1 x GoPro TPU bottom stand incl. lock screw
  • 1 x DJI FPV camera
  • 1 x DJI FPV Air Unit Module
  • 2 x Albatross LHCP RP-SMA 5.8g 150mm antenna
  • 2 x Gemfan tri-blade 7040 props (Set of 4 - Color may vary)
  • 4 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
