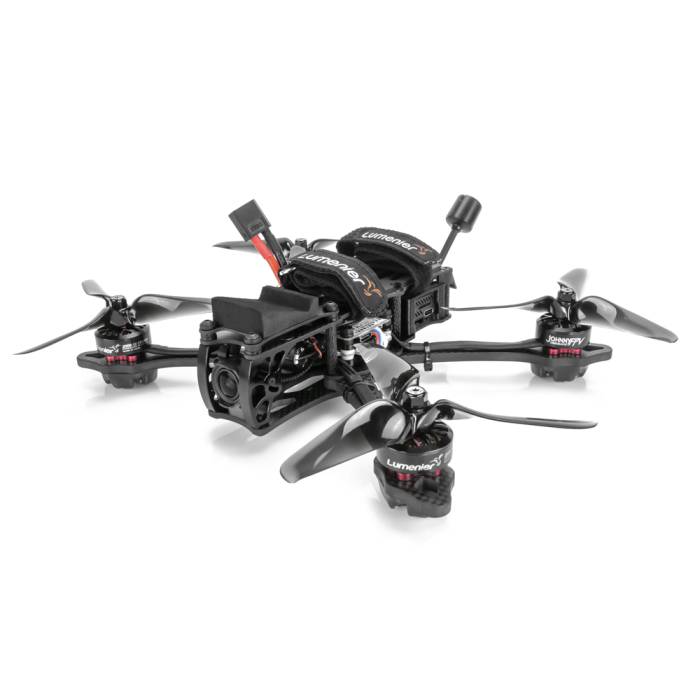

Lumenier QAV-S JohnnyFPV SE 5" FPV Freestyle Drone RTF w/ DJI O3 HD FPV System - 6S
Lumenier QAV-S JohnnyFPV SE 5" FPV Freestyle Drone RTF w/ DJI O3 HD FPV System - 6S
About this product


The Lumenier QAV-S JohnnyFPV Special Edition 6S RTF features the amazing new DJI O3 HD FPV System! This quad makes flying FPV truly breathtaking. With the 1080p video shown at 120fps through the DJI Goggles 2, DJI has set the bar at a new high for clarity and image quality in an FPV system. In addition to flying this system with the Lumenier QAV-S JohnnyFPV Special Edition 5" FPV Freestyle Drone and our popular JohnnyFPV V2 Cinematic motors, you're in for super smooth and locked-in flying all while seeing the world in HD!
You'll gain a new appreciation for grass, branches, and power lines - all things that were almost invisible with an analog setup, but not with the DJI O3 HD FPV system.
No worrying about making sure you set up everything correctly... our build teams do all the hard work for you, and the DJI system makes it easier than ever to fly FPV. You want to fly this thing as soon as you get it right? That's our intent!
Add any product notes here in Bold red.
Example: "Note: This is the Ready to Fly version of the stock frame kit. The optional Cine Camera Kit is sold separately. Please add it in addition to your RTF order if you would like that kit as well."
VIDEO: Lumenier QAV-S JohnnyFPV Special Edition 5" FPV Freestyle Drone Airframe
Features
- Easy arm swaps - swap arms by removing only 1 screw without touching your stack!
- Equipped with the DJI O3 HD FPV System - all set up and ready to go
- RTF is fully built and test flown by our technicians at our Florida facility
- "Bumpers" on the end of the arms to protect the motor during a crash
- Vibration-isolated HD camera plate for smooth HD recording
- Advanced and future-proof Lux HD F4 Flight Controller
- Fly in style with this RTF's sleek blacked-out look
- Easy-grip knurled 35mm black anodized spacers
- Premium Lumenier JohnnyFPV V2 6S motors
- Full 3K Carbon Fiber JohnnyFPV Airframe
- Pre-tuned with smooth freestyle settings
- Buttery-smooth 1080p 120fps FPV feed
- Black Oxide steel screws

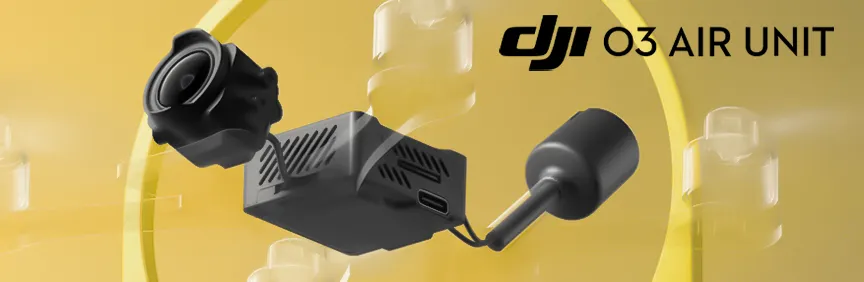

DJI O3 AIR UNIT
The DJI O3 Air Unit is finally here! Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight, compact design. See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels!
ADD FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
ADD FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
ADD FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
PRE-TUNED AND PRE-SETUP
This RTF is fully built and test-flown by build technicians at our Florida facility.
Specifications
- VTX/ Camera: DJI O3 HD FPV Air Unit (FPV Camera + Air Unit Module)
- Motors:Â Lumenier 2306-12 JohnnyFPV Cinematic V2 6S 1750KV
- ESC:Â Lumenier Razor LED 55A 4-in-1 F3 BLHeli_32 2-6s ESC
- Props:Â Lumenier 5x5.3x3 - Gate Breaker Propeller
- FC: Lumenier LUX F4 HD Ultimate Flight Controller
- AUW Weight: 415g (with props / excluding battery)
- Airframe Weight:Â 129g (airframe + hardware)
- Capacitor Holder: 3D Printed TPUÂ
- Frame Material: 3K Carbon Fiber
- Capacitor:Â 1000uf
- Arm Size: 5"
IMPORTANT NOTES
- The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won't need to set up another receiver. If you don't have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
- If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
- Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.Â
Recommended (Not Included)
- Bundle: Lumenier QAV-S JohnnyFPV Special Edition 5" FPV Freestyle Drone RTF Bundle w/ DJI O3 HD FPV System Bundle
- Frame Kit for DIY build: Lumenier QAV-S JohnnyFPV Special Edition 5" FPV Freestyle Drone Airframe
- Radio Controller:Â DJI FPV Remote Controller 2
- FPV Goggles: DJI Goggles 2
Links
- Find the customized tune and config settings used on this RTF build in case you need to flash or recover the settings the drone had at shipment: Settings txt file for MatekF722HD FC version. (BF 4.2.11)
- Lumenier QAV-S JohnnyFPV Special Edition User Manual / Assembly Guide
Includes
- 1x Lumenier QAV-S JohnnyFPV SE 5" FPV Freestyle Drone RTF w/ DJI O3 HD FPV System - 6S
- 1x Lumenier Indestructible Kelvar Battery Strap (20x250mm)
- 1x Lumenier Indestructible Kelvar Battery Strap (16x250mm)
- 2x Lumenier 5x5.3x3 - Gate Breaker Propeller (Set of 4)
- 1x Lumenier 3D XT60 Strap Mount
- 1x Lumenier Soft Zipper Case
