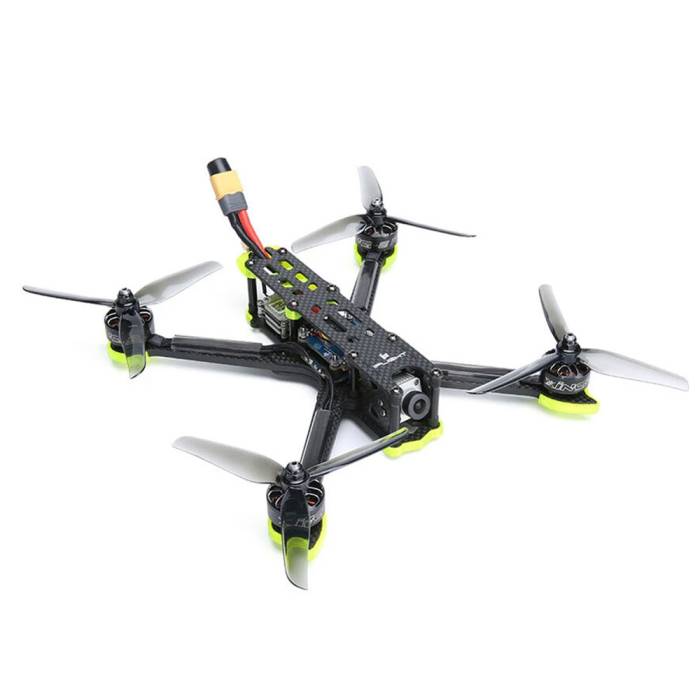

The Nazgul 5" BNF/ HD RTF by iFlight comes with the Caddx Nebula Pro HD FPV System. Featuring the new iFlight XL5 V5 FPV Frame, popular XING-E 2207 FPV Motors (6S 1800KV / 4S 2750KV), SucceX-E F4 Flight Controller, and SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC. You can choose between Crossfire or no additional receiver if you are going to use the DJI FPV Radio. Pre-tuned and set up, everything you need is just bind-and-fly!

Features

• 5mm arm design for more durability
• Easy-Swap arms
• LED illuminated Logo
• XING-E 2207 motors and NAZGUL 5140 props
• 5" version also fits 5.1" style propellers
• Popular True-X configuration
• TPU crash-guards
• Fits both 30.5x and 20x stacks

Specifications

• SucceX-E F4 45A flight stack
• XING-E 2207 FPV Motor （6S 1800KV / 4S 2750KV)
• Wheelbase: 240mm*240mm
• Body size: 170*170mm
• Propeller size: 5 inch /5.1 inch
• FC pattern: 30.5*30.5/20*20 mm
• FPV cam spacing: 19mm
• Weight: 400.8g (without battery)

SucceX-E F4 Flight Controller

• MCU：STM32F405
• Gyro：MPU6000
• Betaflight OSD：YES
• Blackbox：8MB
• 4X Uarts（1 2 3 6 )
• 8 x Dshot/Proshot/Oneshot output
• 8 x individual ESC power/ signal pads
• 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
• VTX telemetry: YES
• WS2812 led Strip：YES
• Baro：No
• Beeper：YES
• Input：2-6S（Max 8S）
• BEC：5V/2.5A cont
• Firmware target: BETAFLIGHTF4
• Mounting：30.5*30.5mm，φ4mm with Grommets φ3mm
• Dimensions：36*36mm
• Weight：7.6g

SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC

• Dimension: 40*43mm
•  Mounting Holes: 30.5*30.5mm/Φ3mm
• Weight: 14.4g
• Supports 2-6S Lipo input
• STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware
• Current sensor: YES
• BEC: NO
• Supports: DShot150/300/600/1200/MultiShot/OneShot etc.
• Target: G-H-30 BLS 16.7

FACTORY SETUP and WIRING DIAGRAM

This BNF comes pre-built and set up with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some Betaflight tweaks to enhance the flight experience.

Reflashed your drone but didn't back up the setup? Messed up the whole tune and want our factory tune back?
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK

Additional Suggested Parts (Not Included)

• DJI HD FPV Goggles
• Radio Controller - Based on Receiver Choice
• Battery 4S 1550mAh
• Battery 6S 1300mAh
• GoPro Mounts

Important

The DJI Remote Controller is recommended for beginners since you won't need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don't choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.

Includes

• 1 x iFlight Nazgul HD 5" FPV Freestyle RTF
• 1 x XL5 V5 Frame
• 1 x Caddx Nebula Pro FPV System
• 1 x Albatross LHCP RP-SMA 5.8g antenna
• 2 x Nazgul 5 inch 3-blades (Set of 4 - Color may vary)
• 1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
• 1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
