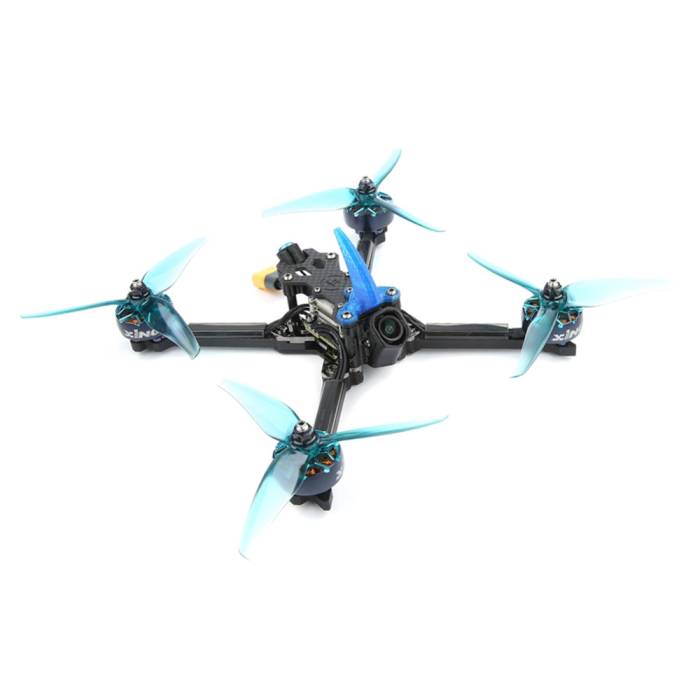

iFlight Mach R5 5" HD BNF Racing Quadcopter w/ Caddx Polar Vista Digital HD System - 6S
iFlight Mach R5 5" HD BNF Racing Quadcopter w/ Caddx Polar Vista Digital HD System - 6S
Select options for stock status
About this product
Introducing... the iFlight Mach R5 HD! iFlight's 5" Racing BNF with quick-swap arm assembly.
The Mach R5 HD is equipped with the Beast F7 AIO on board coupled with the XING2 2506 motors, Caddx Polar Vista Digital HD System, and more!
In response to customer needs, this is iFlight's answer for all the racers out there: The iFlight Mach R5 BNF! Equipped with XING2 2506 motors for more torque and efficiency as well as high speed and consistent lap times. We use Beast F7 55A AIO, the most powerful of our iFlight AIOs available currently. Quick-swap arm assembly for easy repair on your flying spot or race day. Enhanced canopy design with low wind resistance for maximum speed and efficiency.
VIDEO: BEST FREESTYLE RACING DRONE - iFlight MACH R5 Racing Freestyle Drone - REVIEW & FLIGHTS
Features
- Super lightweight but superpower with our newest XING2 2506 motors
- Super durable design, 6mm arms, and 7075 CNC middle plate
- 55A powerful Beast AIO power at small footprint
- Caddx Polar Vista Digital HD System
- XING2 2506 1850KV motors
- Beast F7 55A AIO board
Specifications
- Camera/VTX: Caddx Polar Vista Digital HD System
- Board: Beast F7 55A AIO board
- Motors: XING2 2506 1850KV
FRAME // Mach R5
- Middle Plate thickness: 2.5mm CNC 7075 aluminum alloy
- FPV Cam: 14mm /19mm Micro / 20mm
- FC: 30.5*30.5/25.5*25.5mm/20*20mm
- Main body dimension: 152*152mm
- Bottom plate thickness: 3mm
- Top plate thickness: 2.5mm
- Arm thickness: 6mm
- Wheelbase: 215mm
- TPU Camera plate
FC // Beast F7 AIO
- Mounting pattern: 25.5x25.5mm /3mm
- FC Firmware: IFLIGHT_F745_AIO
- Blackbox: 8Mb Onboard Flash
- Dimensions: 32.5*32.5mm
- MCU: BGA-STM32F745
- Connector: Micro-USB
- BEC output: 5V 2.5A
- Barometer: BMP280
- Gyro: MPU6000
- OSD: AT7456E
- Weight: 8.5g
ESC // 55A 2-6S
- Mounting pattern: 25.5x25.5mm/3mm
- ESC Firmware: BlheliS G-H-30 BLS
- Dimensions: 32.5x32.5mmg
- Constant: 55A / Burst: 60A
- Current Sensor: Yes
- Current scale: 200
- BLHeli: BLHeli-S
- Input: 2-6S LIPO
- Telemetry: no
- UARTs: 5
Pre-Tuned & Pre- Setup
- First time using one of our BNFs? We carefully prepared an article on General BNF Guide to make your entry as easy as possible!
- Don't worry about tuning, iFlight did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
- Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
- To restore lost tunes or updates, please check out this linked article: "Firmware/Factory Dumps"
- Please check out this linked article on "How to disable Angle-Mode, activate Acro-Mode"
- Please check our linked article on "GPS Rescue Mode // Setup"
Recommended ( Not Included)
Includes
- 1x iFlight Mach R5 HD BNF Racing Quadcopter w/ Caddx Polar Vista Digital HD System - 6S
- 1x 20x250mm Microfiber PU Leather Battery Strap (Color May Vary)
- 2x Nazgul R5 3-Blade (Set of - Color May Vary)
- 1x iFlight Mach R5 Polar Vista Accessories Kit
- 1x Sigma LHCP Ipex/ UFL 5.8gHz antenna
- 1x Set 3DPrinted Parts
- 1x Hardware Kit
- Note: GoPro not included
