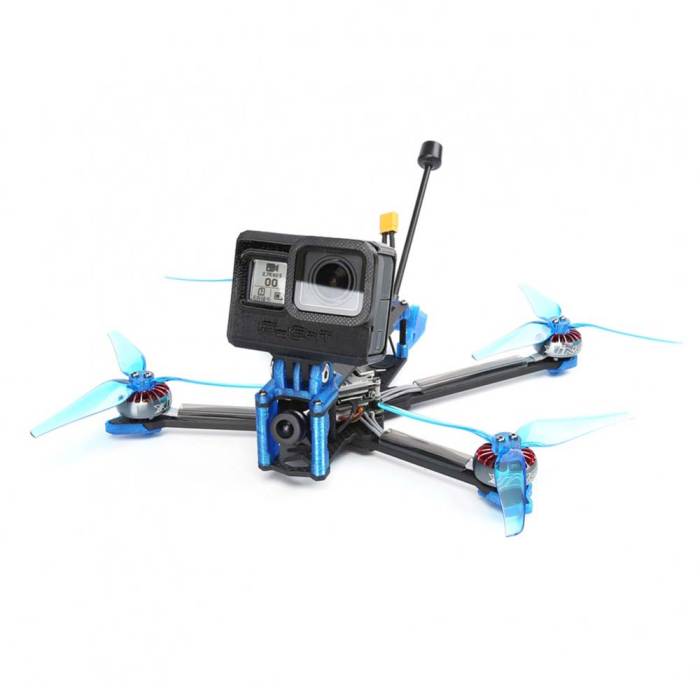

iFlight Chimera5 5" LR 4S HD Quadcopter w/ Caddx Nebula Pro Digital HD System
iFlight Chimera5 5" LR 4S HD Quadcopter w/ Caddx Nebula Pro Digital HD System
Select options for stock status
About this product
Introducing iFlight's first ultra-light Long Range 5" Chimera5 5" BNF. The Chimera5 is equipped with the Beast F7 AIO on board coupled with the XING 2005 motors, GPS, CaddX Nebula Pro, and more!
GPS Rescue ready for easy recovery in case of signal loss, or even if you've been surfing those mountains and suddenly can't find the way back home. Betaflight OSD pre-setup GPS elements will show you the way! Custom iFlight 150mm LR antenna for best signal coverage even at long distances.
Go crazy and strap a Li-On 4S and get a flight time above 25min using at least Li-On 4S 3000mAh packs!
Video
Features
- Mini long-range quad
- XING 2005 2550KV Ultralight motors (Prop mount pattern currently only compatible with iFlight Nazgul Props)
- DC (DeadCat geometry) bottom plate, No props in view
- GPS pre-installed for more safety at a distance
- Beast F7 45A AIO board
- Naked GoPro and Full GoPro ready (included TPU base mounts)
- 360° TPU protection, Vista cam protection, and antenna mounts
- Caddx Nebula Pro Digital HD System
Specifications
FRAME // :Chimera5
- Wheelbase: 219mm
- Main body dimension: 135*173mm
- Bottom to top distance: 28mm
- Arm thickness: 4mm
- Bottom plate thickness: 2mm
- Top plate thickness: 2mm
- Middle Plate thickness: 2.5mm
- TPU Camera plate
- FC: 25.5*25.5mm/20*20mm
- FPV Cam: 19mm Micro / 20mm
FC // Beast F7 AIO
- MCU: BGA-STM32F745
- Gyro: MPU6000
- Blackbox: 8Mb Onboard Flash
- BEC output: 5V 2.5A
- Barometer: BMP280
- Connector: Micro-USB
- OSD: AT7456E
- FC Firmware:IFLIGHT_F745_AIO
- Mounting pattern: 25.5*25.5mm φ3mm
- Dimensions: 32.5*32.5mm
- Weight: 8.5g
ESC // 45A 2-6S
- Uarts: 5
- Current Sensor: Yes
- Input: 2-6S LIPO
- Current scale: 200
- Constant: 45A / Burst: 50A
- BLHeli: BLHeli-S
- Telemetry: no
- ESC Firmware: BlheliS G-H-30
- Mounting pattern: 25.5*25.5mm/Φ3mm
- Dimensions: 32.5*32.5mm
Additional Suggested Parts (Not Included)
- Naked GoPro Hero8 Case
- DJI HD FPV Goggles V2
- Recommended battery: 4S 1300mAh and above!
- Without GoPro: 11-13min // 4S 1300mAh, 14-15min // 4S 3000mAh Lion pack, 22-24min
- With naked GoPro: 4S 1300mAh, 12-13min // 4S 3000mAh Lion pack, 20-22min
- With full GoPro Hero8: 4S 1300mAh, 4-6min
ULTIMATE RANGE with full GoPro: 4S 4000mAh, 13-16min (iFlight FULLSEND INR21700, iFlight 5V BEC instead of GoPro battery)
CAUTION: Flying LIPOs like 850mAh and below might exceed your battery's max power output on high throttle, might overheat the battery cells and shorten the battery lifespan drastically. Please fly with care!
CAUTION: Li-ion battery packs offer longer flight times (more capacity with less battery weight) but don't have as much current output as LiPo batteries and tend to get hot if overloaded! Please read the specs and stay within limits!
Includes
- 1 x Chimera5 DC Frame
- 1 x Nebula Pro Digital HD HD System Kit
- 1 x Albatross LHCP RP-SMA 5.8g antenna
- 2sets x Nazgul 5030 inch 3-blades (Set of 4 - Color may vary)
- 1 x naked GoPro TPU base mount (installed)
- 1 x full GoPro TPU base mount
- 1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
- 1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
