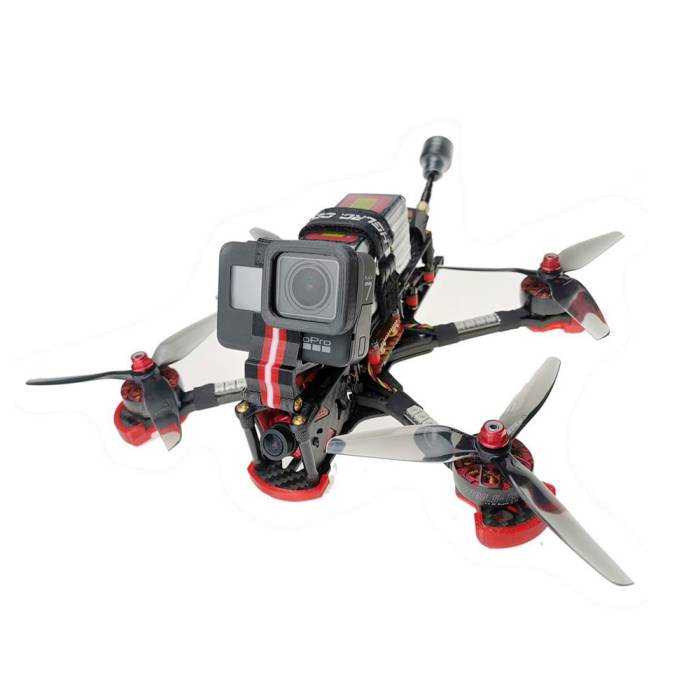

The HGLRC Sector 5 V3 5" Freestyle FPV Racing Drone features Caddx Ratel Micro FPV Camera plus GPS! Features cool specs like the F722 Flight Controller, Zeus 48A BLHeli_S 3-6S 4in1 ESC, HGLRC 2306.5 Brushless Motors, MT VTX 800MW, built-in LEDs, and more!

Two motor KVs to choose from: 1900KV (6S) / 2550KV (4S)

NOTE: The GoPro camera and TPU print camera mount are NOT included.

Features

• Pre-installed LEDs and GPS.
• Control the LED lights easily with the press of a button on the Zeus F722 FC. The Sector5 V3 also supports GPS-rescue with one of the most stable GPS - HGLRC M80 installed.
• No Props in view
• No more props in view with the V3. Enjoy the clear view of flying!
• Adjustable camera mount angle
• Adjust the angle of the camera mount from 25°, 30°, 35° to 40° to suit your needs.
• Capacitor slot to hide the capacitor for a neater look
• Cannot find the capacitor in the drone? it is "hidden" somewhere :)
• A complete range of TPU parts
• All the STL files of the TPU parts used in this drone will be available for free! You can always print spare parts by yourself if you have a 3D printer. Check the files here
• Plug-and-Play DJI support

Plug-and-Play DJI support with our new Zeus F722 flight controller.

Specifications

HGLRC Sector5 V3 Freestyle FPV Racing Drone DJI HD Version

• Net Weight:471g(Weight without receiver)

Sector 5 V3 Freestyle Frame 5 inch

• Type:5" frame
• Wheelbase:218mm
• Support for propellers: up to 5.2 inches
• Overall size:172.5 * 136.7mm
• Weight:177.9g（contain TPU）

F722 Flight Controller

• MPU: MPU6000
• CPU:STM32F722 RET6
• Input Voltage:3-6S Lipo
• BEC Output:5V/3A,9V/2A
• Weight:7.6g

48A BLHeli_S 3-6S 4in1 ESC

• CPU:STM32F051
• Input Voltage:3-6S Lipo
• Steady Current:48A
• Peak Current:55A（10 Sec）
• Weight:18g

Caddx Ratel FPV Camera

• Image Sensor:1/1.8 " 1200TVL CMOS
• Lente:2.1mm
• Input Power:DC 5V
• Dimensions:19mm*19mm*19mm
• Net weight:8g

HGLRC 2306.5 Brushless Motor

• 1900KV (6S) / 2550KV (4S)
• No.of Cells(Lipo):16.8 V
• Recommended Prop(inch):5Inch

M80 GPS

• Power Supply:5V
• Size:18.5mm x 18.5mm x 7.1mm
• Weight:9.4g

W554A LED Lightboard

• Motor Voltage:2-6S
• LED Voltage:5V
• Overcurrent:50A
• Size:34.8x7.9mm
• Weight:5.2g（4 pcs）

Recommend Parts (Not included)

• Battery: 1300mAh~1800mAh 4S XT60
• Battery: 1300mAh~1800mAh 6S XT60

Manual

Video

Includes

• 1 x F722 Flight Controller
• 1 x 60A BL32 3-6S 4in1 ESC
• 1 x MT VTX 800mW
• 1 x Caddx Ratel FPV Camera
• 1 x Sector 5 V3 Freestyle Frame Kit
• 4 x 2306.5 1900KV Motor
• 1 x M80 GPS
• 4 x W554A LED Light board
• 8 x EthixS5 propeller
• 1 x Hammer Antenna
• 4 x Battery Strap
