The X-Knight 360 FPV Quadcopter (HD Digital VTX) is an invisible FPV drone that supports the Insta360 ONE R Camera.

360 drones are known to capture airborne 360 views and hide the drone entirely from sight, and what makes the X-Knight 360 FPV Quadcopter special is that it comes with the Caddx Nebula Nano HD Digital VTX System. The X-Knight 360 HD Digital VTX flies smoothly, which is great for filming HD footage due to stability. Pilots can now enjoy both superb image quality and minimum latency. It also features the F722 35A AIO FC, lightweight 2004 3000KV 4S Motor, and HQ 5025 3-Blade Props!

Note: Insta360 ONE R Camera and batteries NOT included.

Features

• X-Knight 360 HD Digital VTX is an invisible FPV Digital VTX drone that is specially designed to carry an Insta360 ONE R Camera. Combined with the ONE R camera, this drone can capture airborne 360 views and hide the drone entirely from sight.
• Equipped with the nebula Nano HD System, it brings a stable FPV picture and a long transmission distance. Pilots can enjoy both superb image quality and minimum latency.
• X-Knight 360 adopts a flat design, combined with the customized 4S 1000mAh that is only 23mm in height, when paired with the Insta360 ONE R, you simply won’t see the X-Knight 360 in the sight, just like a flying camera.
• BETAFPV specially designed the BEC board to build a direct charge power system, not only convenient to power the Insta360 ONE R Camera during the flight, but also reduced the huge weight of the quad, pilots can feel a better FPV flying experience.
• Specially designed this innovative, versatile, and functional X-knight 360 frame, is made of carbon fiber, and is durable and maintaining lightweight, which provides you a more durable and smoother flight experience.
• With the perfect match of lightweight 2004 3000KV motor and HQ 5025 3-Blade Props, pilots can get an excellent racing flight experience.

Specifications

• Item: X-Knight 360 FPV Quadcopter (HD Digital VTX)
• Weight: 211.9g (without battery)
• FC&ESC: F722 2-6S 35A AIO FC (BLHeli_S)
• Motors: 2004 3000KV Brushless Motors
• Props: HQ 5025 3-Blade Props
• HD digital camera & VTX: Caddx Nebula Nano HD System

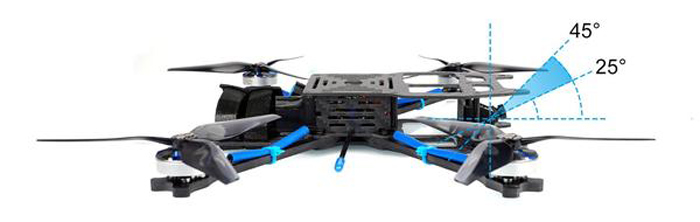

• FPV Camera Degree: 25°-45°
• Battery: 4S 1000mAh Battery(Not Included)
• Connector: XT60
• Frame: X-Knight 360 Carbon Frame Kit
• Receiver Option: Frsky XM+ / TBS Crossfire/ PNP
• Flight time: 7min smooth flight or 5min flight of FPV freestyle tricks with 4S 1000mAh battery

Caddx Nebula Digital VTX

The Caddx Nebula Nano HD System can perfectly support with DJI goggles. With DJI goggles, it can provide 720p/60fps digital high-definition picture and a transmission range up to 4km. Users can choose 25mW/200mW/500mW/700mW from DJI goggle settings. The total weight (excluding antenna) is 24g only, about 26g lighter than the DJI FPV unit. Besides, it is smaller and designed for whoop drones.

Flight Controller

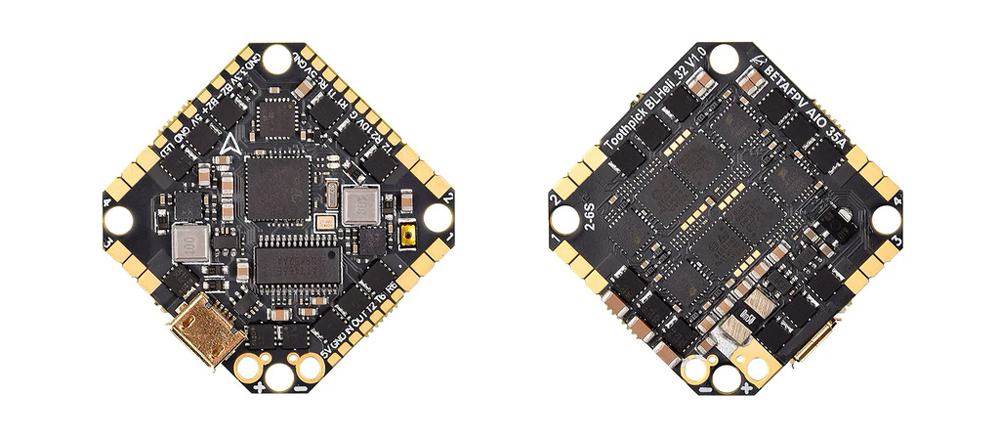

F4 35A AIO Brushless FC- The board is the first BLHeli_32 ESC 35A All-in-one FC on the current market. It can handle 35A continuous current(40A burst) and provide with massive levels of performance capability, but it still maintains ultralight only 7g. In addition, this board supports a 2-6S Lipo battery, perfectly suitable for the 4''-5'' drone.

Motors & Props

2004 3000KV Brushless Motors is a lightweight 4S motor. It only weights 16.4g / 1pc. Best matched with the HQ 5025 3-Blade Props, the motor is very efficient in use and has an excellent racing flight experience. Combined with F4 35A AIO Brushless FC, it will provide you enough output power.

Recommended Battery (Not Included)

4S 1000mAh Battery with XT60 connector is the best option to power the X-Knight 360 FPV Quadcopter. This battery is specially customized for X-Knight 360 FPV Quadcopter. With the flat design, the battery is only 23mm height, perfectly hides the battery from the camera's sight. With a 4S(14.8V) high voltage and 75C discharge rate, it gives the drone a stronger flight performance for short bursts

X-Knight 360 Carbon Frame Kit

X-Knight 360 Carbon Frame Kit is an innovative, versatile, and functional design frame, which adopts carbon material becomes ultimate durability while maintaining minimal weight. With this special-designed frame, pilots can capture an aerial 360 video without any limitation - hide the drone entirely from sight.

Includes

• 1 x X-Knight 360 FPV Quadcopter (HD Digital VTX)
• 1 x Spare HQ 5025 3-Blade Props (2CW+2CCW)
• 1 x Screw Pack
