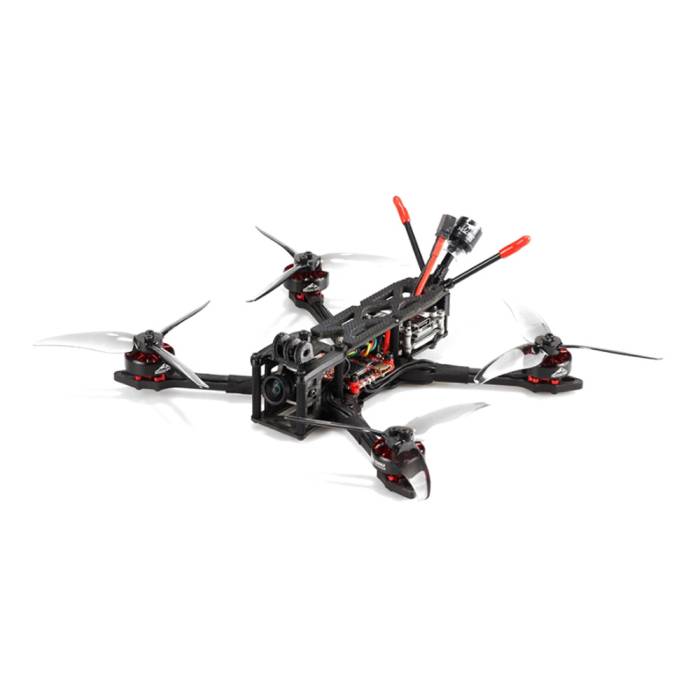

The Rekon4 FR HD is a 4" BNF Quad with a robust frame, quick-swap arms, and a Sub250 weight goal. This quad was designed to create a sub 250g freestyle platform that gets as close as possible to a “classic” five-inch quad. And while performance was the main objective, Rekon FPV still wanted it to be practical for everyday use.

The motor and propeller configuration was crucial to achieving the desired flight characteristics. After weeks of testing, Rekon FPV finally settled for an intermediate stator size with an aggressive kV. A stator larger than 1804 (e.g. 1606, 2004, 2204) didn’t seem to offer any noticeable improvement in flight characteristics while adding a significant amount of weight. Anything smaller than 1804 just did not have enough torque to make the quad feel locked and snappy enough.

The best-performing props were the Gemfan 4023 tribades. They are more on the aggressive side in comparison to the HQ T4x2x3 and while they can be pretty amp hungry on the relatively high kV 1804 motors, they ensure the quad has an impressive punch!

VIDEO: Rekon 4 FR - My take on Sub250 Freestyle

• A robust frame with quick swap arms that can take hard crashes and offers good component protection.
• Margin towards the sub 250g goal, so you do not have to worry about every gram
• Compatibility with a widely available battery sized (650-850mah 4S)
• Option to carry light HD cameras (Naked GoPro, SMO, Insta 360)
• RunCam Phoenix Camera and Link VTX

• Camera/VTX: RunCam Phoenix + Link VTX
• Motors: Rekon 1804 3500KV
• Model: Rekon4 4inch Frame
• Propellers: Gemfan 4023
• Motor Input voltage:3-4S
• Wheelbase:180 mm
• Size:180x140 mm
• Weight: 161.2g

ZEUS25 V2 AIO 3-6S FC

• FC firmware:BF ZEUSF722_AIO (HGLR)
• Input voltage:3-6S
• Size:32.5x32.5mm

• Battery: 4S: 550mah - 1000mAh

• 1x 1x Rekon FPV Rekon4 FR HD Digital Freestyle Quadcopter w/ RunCam Phoenix + Link - 4S - PNP
• 2x Gemfan 4023 4-inch 3-blade Propeller (Set of 4)
• 1x Hammer antenna (L Screen Printing)
