Lumenier QAV-S MINI 3" 4S Freestyle Quadcopter RTF w/ Caddx Polar Micro Vista (HD)
Lumenier QAV-S MINI 3" 4S Freestyle Quadcopter RTF w/ Caddx Polar Micro Vista (HD)
About this product

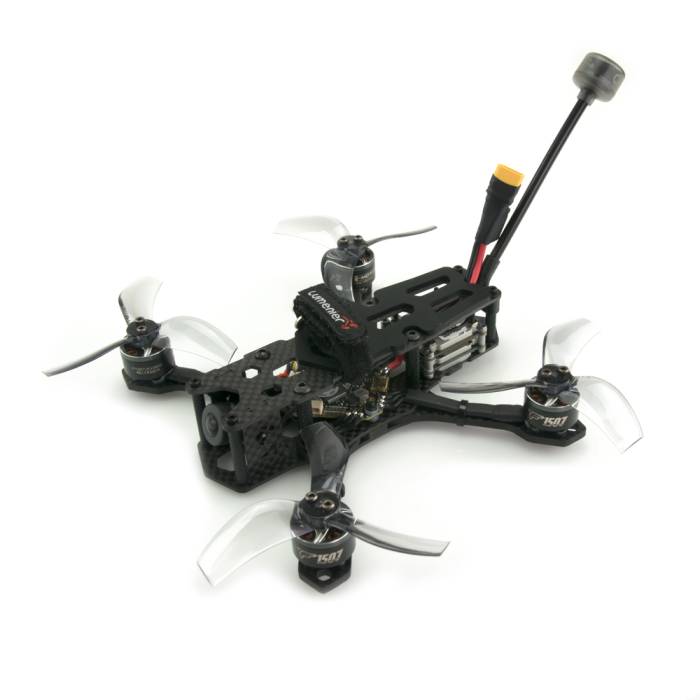

Lumenier QAV-S 3" 4S Freestyle Quadcopter RTF
This RTF has been fully built and test flown for you, so you can simply bind your radio and go! Our professional build team takes the guesswork out of building and tuning for you by pre-programming the flight controller settings and using only high-quality motors, ESCs, and FPV gear.
About the Airframe
After several months of work and research, Santiago Espindola "EspeedyFPV", Lumenier designer and FPV pilot, came up with an airframe that could serve his needs of constant traveling, freestyle, and workflow in the cinematic industry. As a result, Santiago created the QAV-S, which includes features like fast carbon fiber maintenance, lightweight body construction, stack mounting options, and an option for an analog or HD digital system, like the Caddx Polar Micro Vista. All of these features, plus the strong construction make this frame the perfect platform for pilots who need a sub250 freestyle rig.
The arm locking system includes a hinge with a press nut that secures the arms and requires just one screw to swap the arm. The split bottom plate gives enough room for a micro camera in the front, while also reducing the rear deck space, which can be used to mount any VTX even a Caddx vista HD module. The QAV-S MINI 3 inch has isolated 16x16, 20x20, and 26.5x26.5 stack mounting that lets you take care of your electronics stack without the need to alter the frame structure and overall build.
VIDEO: "You Can Build This!"
Features
- RTF fully built and test flown by our technicians at our Florida facility
- Equipped with the Caddx Polar Micro Vista digital video transmission system vista kit + long antenna
- Full 3K Carbon Fiber airframe with silky clear coat
- T-Motor V2 F1507 3800kv motors designed just for this kit (No Shaft- New Release).
- BetaFPV F405 2-6S AIO FC V4 20A BLheli_32 ESC (New Release)
- Pre-tuned with smooth freestyle settings
- Fly in style in an all-black color scheme
- Black Oxide steel screws
Specifications
- Camera/VTX: Caddx Polar Micro Vista digital video transmission system vista kit + long antenna
- Props: HQ Durable Prop - T76 Cinewhoop Grey (Set- 2cw +2ccw) Poly Carbonate
- Motors: T-Motor V2 F1507 3800kv motor
- GPS: Matek SAM M8Q GPS w/ Mount
- FC: BetaFPV F405 2-6S AIO FC
- ESC: V4 20A BLheli_32 ESC
Recommended (Not Included)
Propellers
- HQ 3X3X3: https://www.getfpv.com/hqprop-dp-3x3x3-pc-propeller-3-blade-black-set-of-4.html
- Gemfan 3028: https://www.getfpv.com/gemfan-windancer-3028-propeller-set-of-4.html
- HQ 3X2.5X3: https://www.getfpv.com/hqprop-t3x2-5x3-propeller-set-of-4.html
- T-motor T76: https://www.getfpv.com/t-motor-t76-3-ducted-propeller-set-of-4.html
Batteries
Receiver
- Crossfire Nano: https://www.getfpv.com/tbs-crossfire-nano-rx.html
- Inmortal T: https://www.getfpv.com/tbs-crossfire-immortal-t-antenna-v2-extra-extended.html
- Frsky R-XSR: https://www.getfpv.com/frsky-r-xsr-2-4ghz-16ch-accst-micro-receiver-w-s-bus-cppm.html
- Frsky XM+: https://www.getfpv.com/frsky-xm-sbus-mini-receiver.html
- Frsky XM Micro: https://www.getfpv.com/frsky-xm-receiver.html
FPV Goggles
- Premium: DJI FPV Goggles V2 (Digital)
Radio Transmitter
- DJI: DJI FPV Remote Controller (Mode 2) (No additional receiver needed, pairs directly to Vista unit inside drone)
- Midrange: FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter
- Premium: FrSky Taranis X9D Plus Special Edition 2019 ACCESS 2.4G 24CH Radio Transmitter
Includes
- 1 x Lumenier QAV - S Mini 3" 4S Freestyle Quadcopter RTF
More Information
SKU | 15982 |
---|---|
UPC (GTIN) | 751313220189 |
Manufacturer | Lumenier |
NDAA Compliant | No |
Item Returns | This item can be returned |
