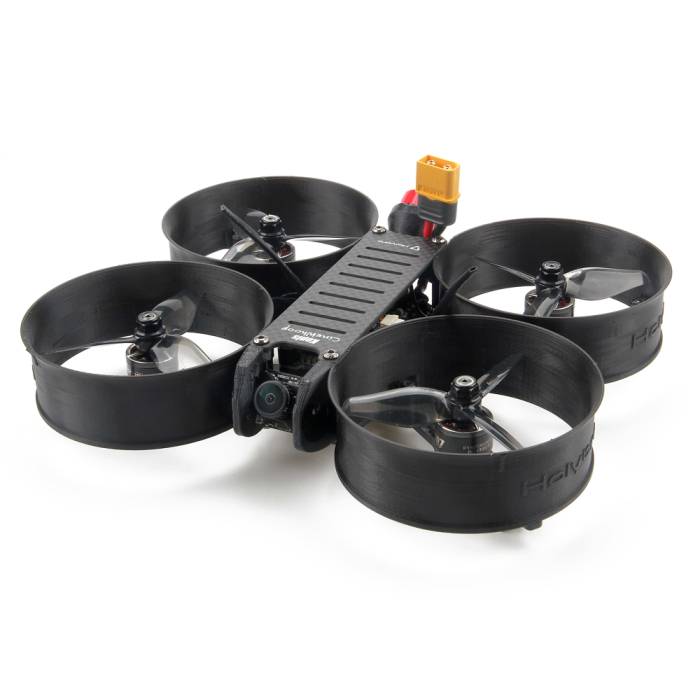

This Kopis CineWhoop is a PNP version of the high-performance 3" ducted RTF. This is the Analog VTX version without a receiver.

Experience the amazing HD footage from this powerful and agile 3" cinewhoop! Holybro's latest creation features a custom frame designed just for the DJI Air Unit, complemented by high-quality components from both Holybro and T-Motor.

Note: HolyBro Kopis Cinewhoop propeller protection duct has been upgraded from 3D printing PLA to plastic injection molding part. The new duct is of beautiful shape and more convenient for you to mount it on the frame.

Features

• All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”.
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• Adjustable camera uptilt from 0 degrees to 90 degrees - Buzzer included.
• 6 hardware UARTS (UART1,2,3,4,6,7)
• MCU: STM32F745 32-bit processor
• TF card for Blackbox logging
• IMU: MPU6000 (SPI)
• Barometer: BMP280

Specifications

• Camera:1200TVL Foxeer Micro Razer FPV Camera
• Recommend battery: 650mah~1300mah 4s
• ESC: Tekko32 F3 4in1 45A mini ESC
• Weight: 237g (includes DJI air unit)
• Flight Controller: Kakute F7 HDV
• Motors: F1507 KV3800 (3-4S)
• Frame: 3mm 3k carbon fiber
• Dimensions:178*205*40mm
• VTX: Analog Atlatl HV V2
• Wheelbase: 148.6mm
• Battery plug: XT60
• Propeller: T3140

3D Print

• Camera Mount(Left)-TPU_Kopis-CineWhoop(NEW)
• Camera Mount(Right)-TPU_Kopis-CineWhoop (NEW)
• Camera Mount(Left)-TPU_Kopis-CineWhoop.stl
• Camera Mount(Right)-TPU_Kopis-CineWhoop.stl
• Protector(Left)-PLA_Kopis-CineWhoop.stl
• Protector(Right)-PLA_Kopis-CineWhoop.stl
• XT60-Holder-TPU_Kopis-CineWhoop.stl

Settings

• Kopis CineWhoop_3inch(Analog_VTx_version)DUMP

Manual

• Holybro_Kopis_CineWhoop(Analog VTx version)_Manual.pdf

Includes

• 1x Kopis CineWhoop PNP RTF (Analog Version) - no receiver
• 1x Protective Case Mount for GoPro Hero5
• 1x Battery Strap (pre-installed)
• 4x T3140 Propeller
• 1x Carrying case
