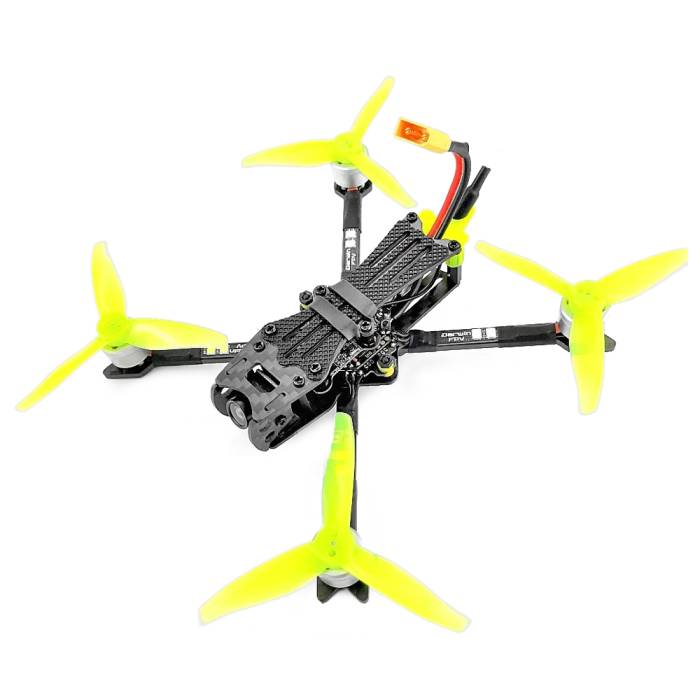

DarwinFPV Baby Ape 3" Quadcopter w/ 700TVL Camera
DarwinFPV Baby Ape 3" Quadcopter w/ 700TVL Camera
Select options for stock status
About this product
The DarwinFPV Baby Ape is a 3" quadcopter that features a Darwin700 TVL camera for those wanting to dive into beginner FPV skill sets. This quad includes and F411 flight controller, 15A ESC, and a 40 CH Switchable VTX for the ultimate FPV flight experience!
Note: PNP comes with Gray Props, R81 and ELRS come with Yellow Props
VIDEO: Best value quadcopter under $100: DarwinFPV Baby Ape
Features
- Yellow Props (R81 and ELRS) or Gray Props (PNP)
- Darwin 700TVL Camera
- F411 Flight Controller
- 1104 4300KV Motors
- Carbon Frame
- 40 CH VTX
- 15 ESC
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
PRE-TUNED AND PRE-SETUP
This RTF is fully built and test-flown by build technicians at our Florida facility.
Specifications
- Propellers: 30163 Polycarbonate - Yellow (Note: PNP comes with Gray Props)
- Receiver Options: PNP, R81, ELRS 2.4GHz
- Motors: 1104 4300KV 2-3S Brushless
- Arm Size: 3"
5.8G 40CH 0mw/25mw/200mw SWITCHABLE VTX
- Transmitting power: 0mW/25mW/100mW/200mW switchable
- With copper pipe mini antenna (ipex antenna)
- Power dissipation: +12V/600MW
- Weight: ≤3.2g (except antenna)
- Full video format: NTSC/PAL
- Supports TBS SmartAudio
- Input voltage: 7V~24V
- Size: 25×20×6mm
- Channel: 40CH
AIO 4 IN 1 15A BLHELI_S ESC
- Firmware upgrade: Supports Dshot600/Oneshot125
- Main control chip:EFM8BB21
- Continuous current: 15A
- Input voltage: 1-3SLiPo
- Peak current:17A (10S)
- BEC output: no
- MOS: 3*3
F411 AIO FLIGHT CONTROLLER
- Mounting holes distance: 25.5*25.5mm
- PPM/DSM/IBUS/UAR share: UART1-RX
- Sensor: MPU6000 or ICM20689
- Main control chip: STM32F411
- Supports Betaflight firmware
- Integrated OSD
TVL DARWIN 700 TVL CAMERA
- Propellers: 30163 Polycarbonate
- TV System: PAL/NTSC
- Resolution:700TVL
- Input: 3.5-5V
- Lens: 1.8mm
- Arm Size: 3"
IMPORTANT NOTES
- The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won't need to set up another receiver. If you don't have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
- If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
- Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x DarwinFPV Baby Ape 3" Quadcopter w/ 700TVL Camera (Choose Receiver)
- 1x 3016 3-Blade Propellers (Set of 4) (Color Varies)
- 1x Hardware Kit
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19975 |
---|---|
Manufacturer | DarwinFPV |
NDAA Compliant | No |
Item Returns | This item can be returned |
