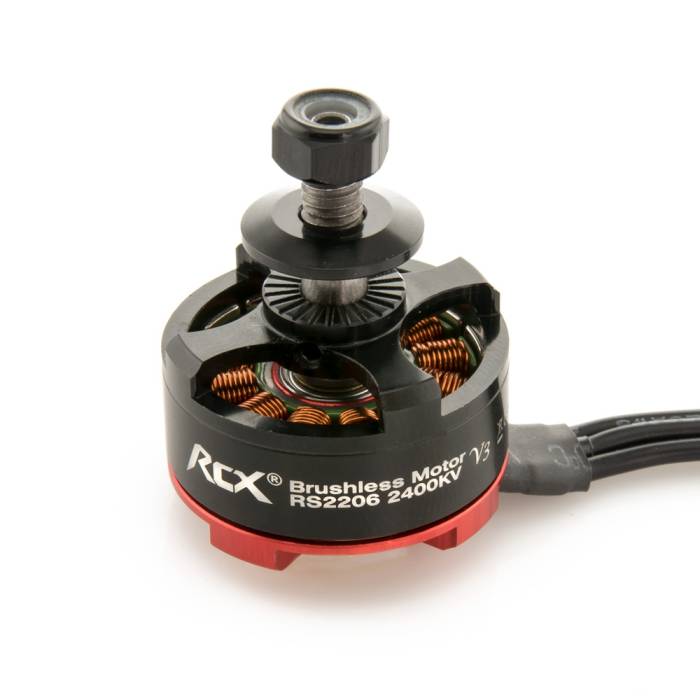

RCX RS2206 V3 2400kv Brushless Motor

More Views

RCX RS2206 V3 2400kv Brushless Motor
The RCX RS2206 V3 2400kv Brushless Motor.
Will Not Restock

Regular Price: $18.99

Special Price $14.99

Description

The RCX RS2206 V3 2400kv Brushless Motor comes with improvements over the previous version. Notably, the bell housing which helps contain and protect the magnets better than the V2. This motor was soldered with long soft AWG cables for easy soldering and wiring. Unlike most other brands who do not balance their motors, (or just lie that the motor has been balanced) all of the RS2206 V3 motors have been balanced by a dynamic balancing machine. It takes time so the production quantity is limited. You will see balancing mud in most of RCX RS-Motors. Additionally, it uses two grub screws to prevent the shaft from slipping out to make sure the motor bell will not fly off during flight.

Specifications

  • Model: RS2206 V3
  • KV: 2400KV
  • Weight: Approx. 32.8g (net weight included long AWG cables)
    • you can lower the weight if you shorten the long AWG cables.
  • AWG Cable: 15cm
  • Prop Shaft Diameter: 5mm (CW)
  • Stator Diameter: 22mm
  • Stator Length: 6mm
  • Shaft Diameter: 3mm
  • Configuration: 12N14P
  • Rotor: N52SH Arc Magnets
  • Shaft: Titanium Alloy Hollow Shaft
    • Top 5mm Hollow
    • Bottom 4mm Solid (even harder)
  • Stator: 0.15mm Nippon Steel Silicon Steel
  • Bearings:  Japan EZO Bearing 4x9x4mm (684ZZ)
  • CNC Material: High-Quality AL 7075
  • Motor Dimensions: Φ--mm
  • Idle Current: 0.00A @ 10V
  • Internal Resistance: 0.00Ω
  • Suitable ESC: 20-40A
  • Suitable Battery: 3-4S

Includes

  • 1 x RCX RS2206 V3 2400KV FPV Racing Edition Motor
  • 1 x Hex Locknuts M5 (Slip-Resistant) - CW
  • 1 x Circle Plate
  • 1 x Set of M3*5 Screw
Additional Information
SKU 7962
Manufacturer RCX
UPC (GTIN) 704817767360
Popo Compatible No
