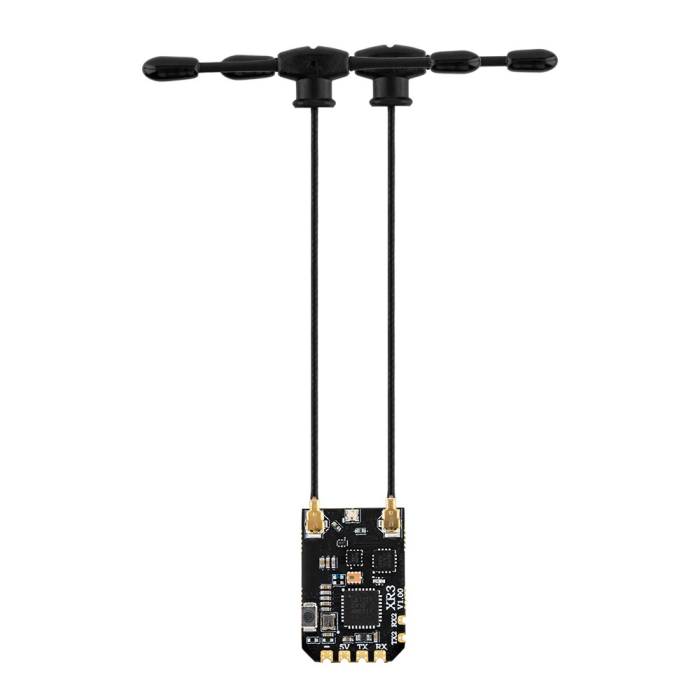

RadioMaster XR3 Nano Multi-Frequency Diversity Receiver - ELRS 2.4GHz
$38.99
Out of Stock
Only left for same day shipping. Order now!
RadioMaster XR3 Nano Multi-Frequency Diversity Receiver - ELRS 2.4GHz
The XR3 Receiver is a compact ExpressLRS receiver, measuring 20 x 15mm and powered by the third-generation Semtech LR1121 transceiver. It operates on 2.4GHz, offering exceptional range and sensitivity in a lightweight design, which is ideal for any build.
About this product
The XR3 Receiver is a compact ExpressLRS receiver, measuring 20 x 15mm and powered by the third-generation Semtech LR1121 transceiver. It operates on 2.4GHz, offering exceptional range and sensitivity in a lightweight design, which is ideal for any build. With built-in Wi-Fi, configuration, and firmware updates are effortless via an intuitive WebUI on your PC or mobile device.
Features
- High-Performance MCU
- Advanced Transceiver
- Additional UART Port
- Antenna Diversity
- Secondary Port
- Castled Pads
Specifications
- Item: XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS Receiver
- Maximum Receive Refresh Rate: DK500Hz / K1000Hz
- Firmware Target: RadioMaster XR3 2.4 Diversity RX
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- Frequency Range: 2.4GHz [ISM 2.4GHz]
- Minimum Receiver Refresh Rate: 25Hz
- Dimensions: 22mm x 15mm x 4mm
- Antenna: 2x T-Antenna (Dual Band)
- Working Voltage: DC 5.0 - 12.6V
- Weight: 1.3g (without antenna)
- Telemetry Power: 100mW
- RF Connector: IPEX-1 x 2
- Bus Interface 2: UART
- Bus Interface 1: CRSF
- RF Chip: LR1121
- MCU: ESP32C3
- Type: ISM 2.4
Includes
- 1x RadioMaster XR3 Nano Multi-Frequency Diversity Receiver - ELRS 2.4GHz
More Information
| SKU | 22849 |
|---|---|
| UPC (GTIN) | 723326370151 |
| Manufacturer | RadioMaster |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Radio Receiver Protocol | ELRS |
| RX Frequency | 2.4GHz/900MHz |
| Antenna Mode | Diversity |
