RadioMaster XR1 Nano Multi-Frequency Receiver - ELRS 2.4GHz
$15.99
In Stock
Only left for same day shipping. Order now!
RadioMaster XR1 Nano Multi-Frequency Receiver - ELRS 2.4GHz

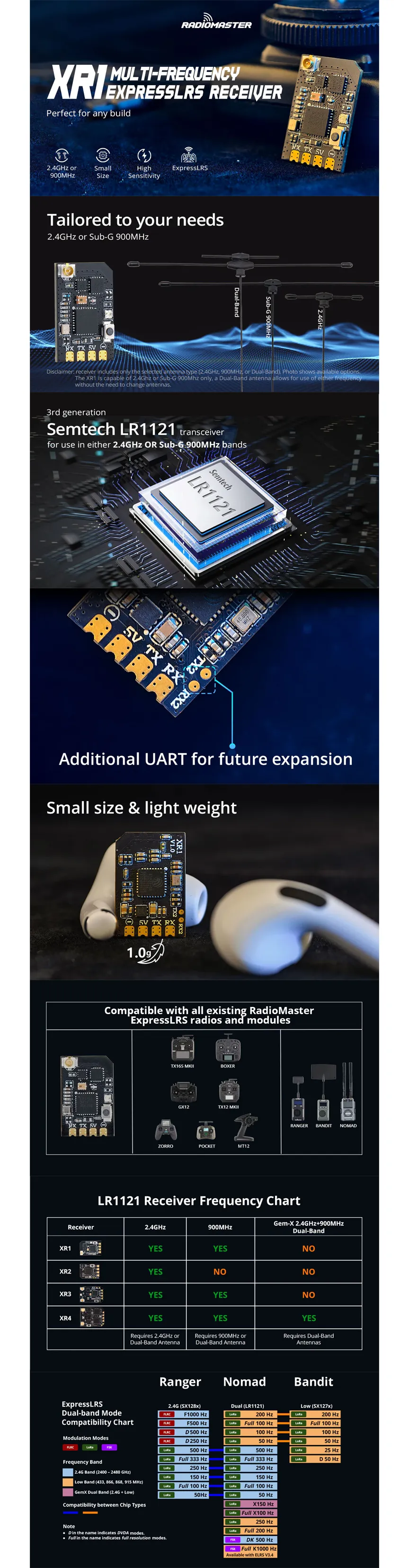

The XR1 Receiver is a compact ExpressLRS receiver, measuring 20 x 13mm. Powered by the third-generation Semtech LR1121 transceiver, it operates on 2.4GHz, offering excellent range and sensitivity in a lightweight design.
About this product
The XR1 Receiver is a compact ExpressLRS receiver, measuring 20 x 13mm. Powered by the third-generation Semtech LR1121 transceiver, it operates on 2.4GHz, offering excellent range and sensitivity in a lightweight design. With built-in Wi-Fi, the XR1 allows easy configuration and firmware updates through a WebUI on your PC or mobile device.
Features
- High-Performance MCU
- Advanced Transceiver
- Secondary UART Port
- Telemetry RF Power
- Castled Pads
Specifications
- Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- Maximum Packet Rate: DK500Hz / K1000Hz
- Firmware Target: RadioMaster XR1 2.4
- Minimum Packet Refresh Rate: 50Hz
- Dimensions: 20mm x 13mm x 3mm
- Weight: 1.0g (without antenna)
- Frequency Range: 2.4GHz
- Telemetry Power: 100mW
- RF Chip: Semtech LR1121
- Antenna: 1x T-Antenna
- Bus Interface 2: UART
- RF Connector: IPEX-1
- Bus Interface 1: CRSF
- Working Voltage: 5V
- MCU: ESP32C3
- Type: ISM 2.4
Includes
- 1x RadioMaster XR1 Nano Multi-Frequency Receiver - ELRS 2.4GHz
More Information
| SKU | 22846 |
|---|---|
| UPC (GTIN) | 723326370182 |
| Manufacturer | RadioMaster |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Radio Receiver Protocol | ELRS |
| RX Frequency | 2.4GHz/900MHz |
| Antenna Mode | Single |
