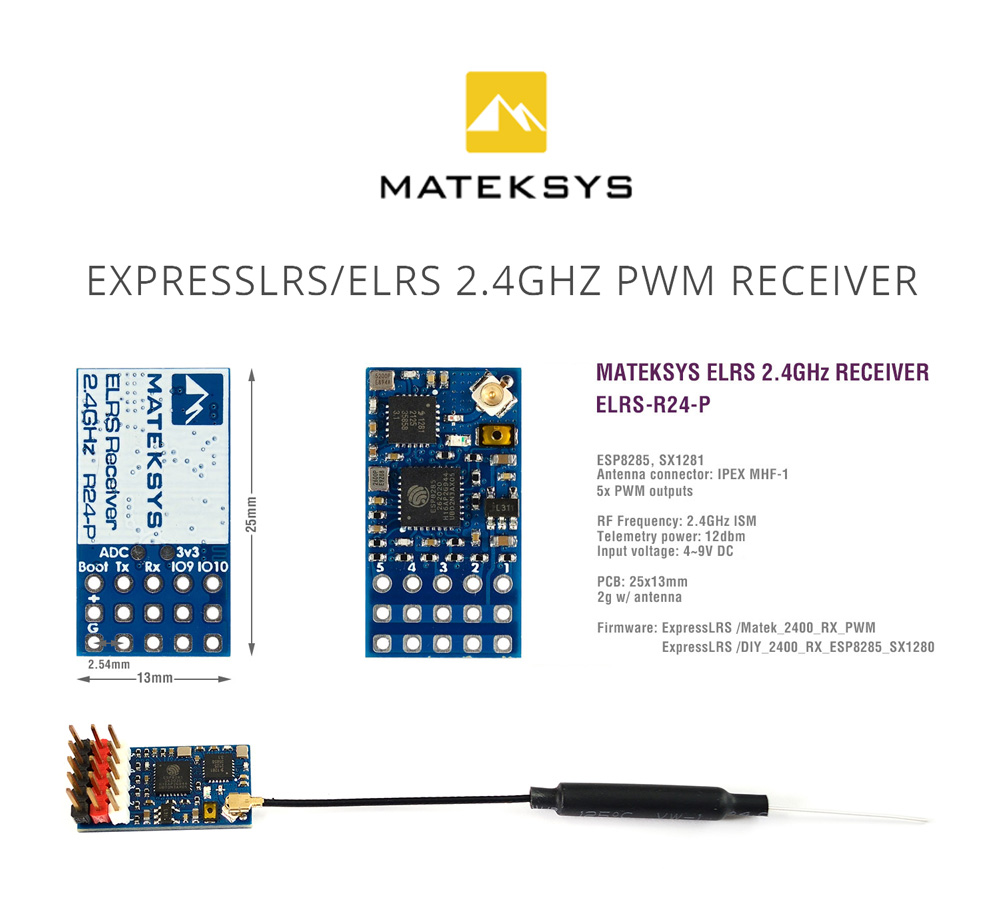

The MATEKSYS ELRS R24 P Receiver is a 2.4GHz ExpressLRS PMW receiver with 12dbm Telemetry Power.

Features

• 12dbm Telemetry Power
• 2.4GHz Frequency
• ExpressLRS

Specifications

• Power dissipation: 45mA(binding), 85mA(wifi mode)
• RF Frequency: 2.4GHz (2400~2480MHz)
• Input voltage: 4~9V DC @ 5V pad
• Receiver protocol: PMW or CRSF
• Antenna Connector: IPEX MHF 1
• PCB size: 215mm x 13mm
• Weight: 2g (With Antenna)
• Telemetry power: 12dbm
• ESP8285, SX1280/1281
• Outputs: 5 PMW

FIRMWARE TIPS

• ExpressLRS MATEK_2400_RX_PWM, or DIY_2400_RX_PWMP, PWM receiver via 1~5 PWM outputs
• ExpressLRS DIY_2400_RX_ESP8285_SX1280, CRSF Serial receiver via TX and RX
• Firmware update via UART or WIFI

Includes

• 1x MATEKSYS ExpressLRS 2.4GHz Receiver - PWM ELRS R24 P
• 1x IPEX MHF1 Antenna
