MATEKSYS ExpressLRS 2.4GHz Receiver - ELRS R24 D
MATEKSYS ExpressLRS 2.4GHz Receiver - ELRS R24 D
In Stock
About this product

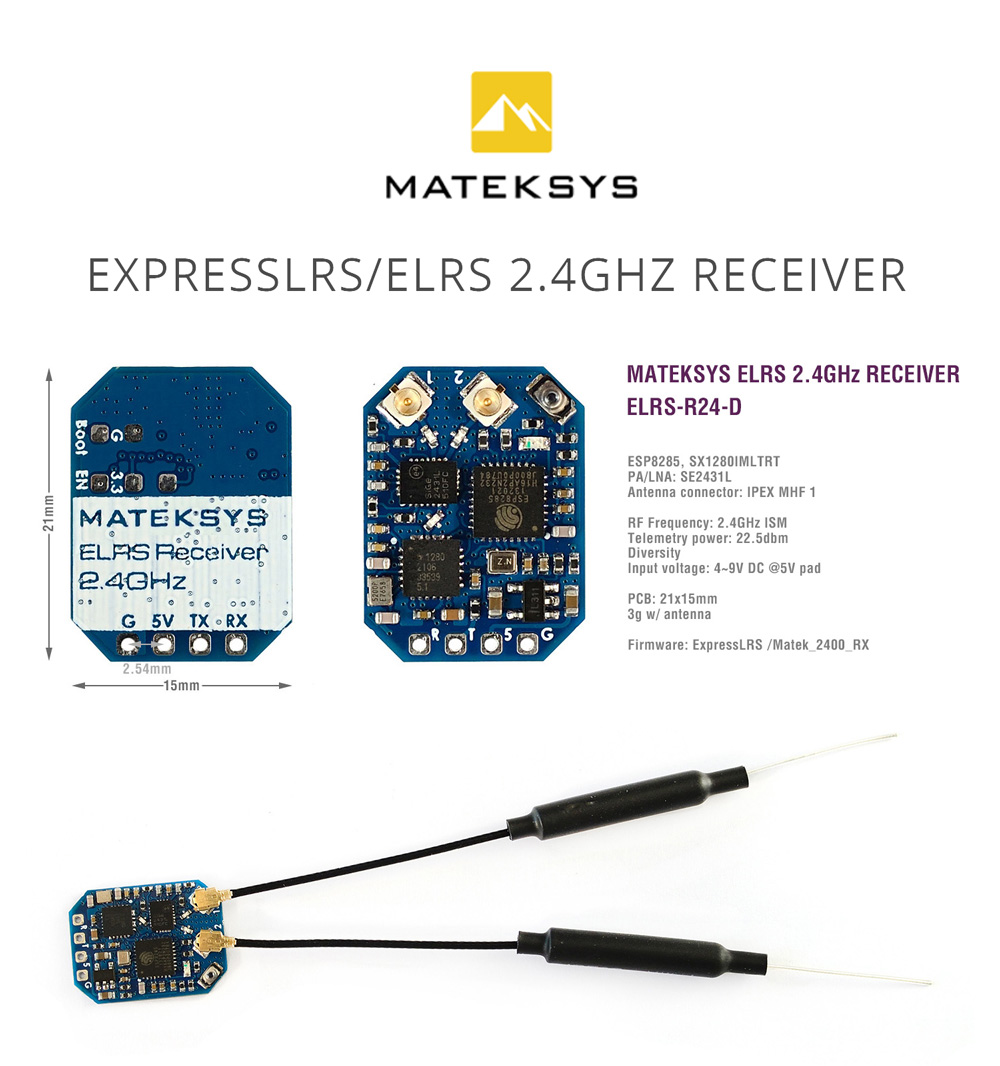

The MATEKSYS ELRS R24 D Receiver is a 2.4GHz ExpressLRS diversity receiver with 22.5dbm Telemetry Power and two IPEX MHF 1 antennas.
VIDEO: Mateksys Express LRS receivers ELRS-R24-S and ELRS-R24-D under a microscope
Features
- 22.5dbm Telemetry Power
- IPEX MHF1 Antennas
- 2.4GHz Frequency
- ExpressLRS
Specifications
- Power dissipation: 40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)
- Diversity (antenna-switching), default ANT2
- RF Frequency: 2.4GHz (2400~2480MHz)
- Telemetry power: 22.5dbm~23dbm
- Input voltage: 4~9V DC @ 5V pad
- Antenna connector: IPEX MHF 1
- ESP8285, SX1280/1281IMLTRT
- SE2431L RX_gain: 12.5dB
- Weight: 3g (With Antennas)
- PCB size: 21mm x 15mm
- Receiver protocol: CRSF
- PA/LNA: SE2431L
FIRMWARE TIPS
- ELRS-R24-D: Enable “USE_DIVERSITY” (checked) when flashing in ExpressLRS configurator
- Firmware: ExpressLRS MATEK_2400_RX
- Firmware update via UART or WIFI
Downloads
- ELRS_V2.0.0_NoPhrase_ELRS-R24-D.bin
- ELRS_V1.2.0_NoPhrase_ELRS-R24-D.bin
- ESP_NodeMCU-PyFlasher.exe
- 3D Step File
Includes
- 1x MATEKSYS ExpressLRS 2.4GHz Receiver - ELRS R24 D
- 2x IPEX MHF1 Antennas
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
| SKU | 17210 |
|---|---|
| UPC (GTIN) | 764613350227 |
| Manufacturer | Matek Systems |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
