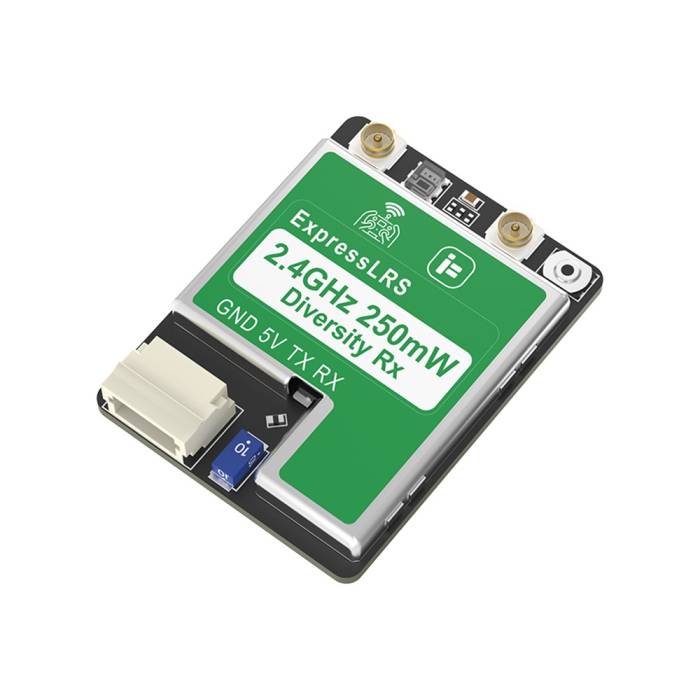

iFlight ELRS True Diversity 2.4GHz Receiver + 2x220mm Antenna

The iFlight ELRS True Diversity 2.4GHz Receiver + 2x220mm Antenna is a true dual-antenna diversity receiver with exceptional frequency stability. The ELRS diversity receiver features well-placed dual antennas with shielding covers, enhancing its resistance to interference, widening signal reception, and ensuring a more stable connection compared to conventional single-antenna receiver systems. It incorporates a TCXO temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations. It sufficiently meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.

• Gemini mode and True Diversity mode compatible
• Integrated shields protect electronic components and enhance anti-interference capabilities.
• Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high-frequency stability
• Up to 250mW telemetry transmission, resulting in stronger telemetry signals and significantly reducing instances of telemetry loss.
• High-performance at 2400MHz or 900MHz (900 / 868 bands available)

• MCU: ESP32-Pico D4
• Receiver Type: Gemini/True Diversity
• Firmware: iFlight 2.4GHz 250mW Diversity RX(2.4G)
• Lua Script: iFlight 2G4 250mW GRX(2.4G)
• Frequency bands: 868MHz EU/900MHz FCC and 2.4GHz ISM
• Telemetry Power: 50-250mW (17-24dBm)(2.4G)
• Dimension: 24.5*18.6*6.3mm(2.4G)
• Protocol: CRSF
• LNA: YES (2.4G)
• Weight: 3.3g (2.4G)

• 1x iFlight ELRS True Diversity 2.4GHz Receiver
• 2x Antenna
