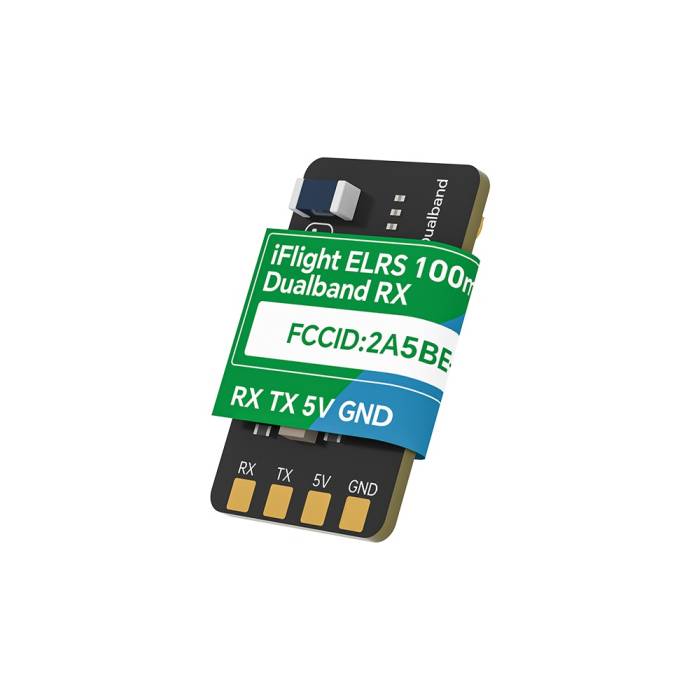

iFlight ELRS Dualband 100mW Receiver - 160mm Antenna

The iFlight ELRS Dualband 100mW Receiver - 160mm Antenna supports 2.4GHz, 868MHz, and 900MHz frequencies for exceptional stability and reliability. It incorporates a TCXO temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations. The receiver's compact and ultra-lightweight design saves precious space on your aircraft. It sufficiently meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.

• Weighs only 0.5g, saving space and reducing aircraft weight.
• SUR 0.8 Connector simplifies installation and setup.
• CXO Technology minimizes frequency deviation for precise and stable performance.
• High-performance at 2400MHz or 900MHz (900 / 868 bands available)

• MCU: ESP32 C3
• Receiver Type: Single antenna
• Firmware: ELRS 3.5.3
• Frequency bands: 868MHz EU/900MHz FCC and 2.4GHz ISM
• Telemetry Power: 100mW (20dBm)
• Dimension: 18*11mm(±0.2)
• Protocol: CRSF
• LNA: N/A(868/900MHz) / YES (2.4G)
• Weight: 0.8g(±0.5g)

• 1x iFlight ELRS Dualband 100mW RX Receiver
• 1x Antenna - 160mm
