Happymodel TCXO ExpressLRS 2.4GHz 6CH PMW Receiver - EPW6
The Happymodel EPW6 TCXO is a 2.4GHz ELRS receiver with PWM capabilities and two antennas.
About this product
The Happymodel EPW6 TCXO is a 2.4GHz ELRS receiver with PWM capabilities and two antennas. This TCXO receiver uses a temperature-compensated crystal oscillator to help with accurate MCU clock frequency, thus improving the performance and reliability of your RC link. Despite the small size, the low latency and high refresh rate of the ELRS system allow this receiver to be used on fixed-wing planes.
Features
- Built-in TCXO (temperature-compensated crystal oscillator)
- Excellent performance in extreme temperatures
- 2.4GHz ELRS RX
- PWM Capabilites
- Two Antennas
Specifications
- Item: Happymodel EPW6 TCXO 2.4GHz PWM receiver
- RF Frequency: 2.4GHz (2400~2480MHz)
- Antenna connector: IPEX MHF 1/U.FL
- Receiver protocol: PWM or CRSF
- PCB size: 19mm x 17.5m
- ESP8285, SX1280/1281
- Telemetry power: 12dbm
- Weight: 1.49g / antenna
- Input voltage: +5v~8.4v
- PWM outputs: 6x
FIRMWARE
- Target option1: Generic ESP8285 6xPWM 2.4Ghz RX
- Target option2:HappyModel_EP_2400_RX
- CRSF Serial receiver via TX and RX
- PWM receiver via 1~6 PWM outputs
- Firmware update via WIFI
Includes

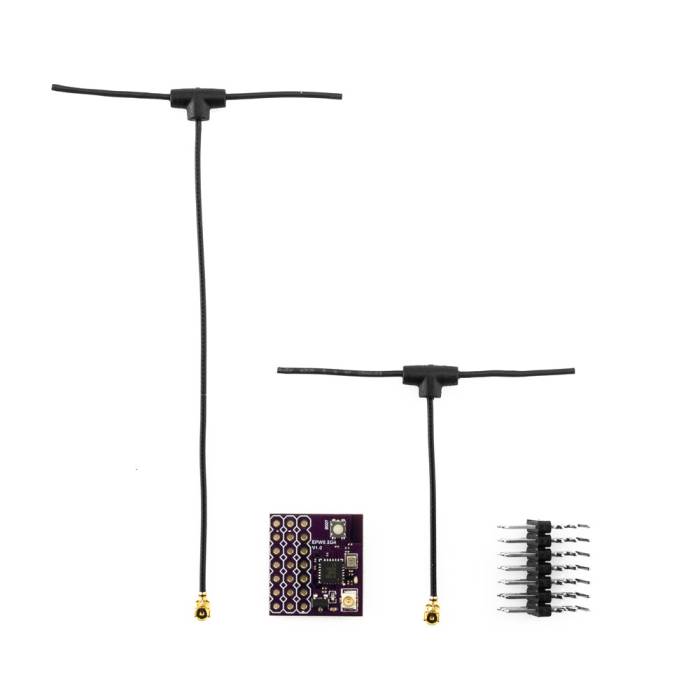

- 1x Happymodel TCXO ExpressLRS 2.4GHz 6CH PMW Receiver - EPW6
- 2x 2.4GHz antenna
- 3x 7pin 2.54mm
- 2x Stickers
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 20542 |
|---|---|
| UPC (GTIN) | 724376351879 |
| Manufacturer | Happymodel |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Radio Receiver Protocol | ELRS |
| RX Frequency | 2.4GHz |
| Antenna Mode | Single |
