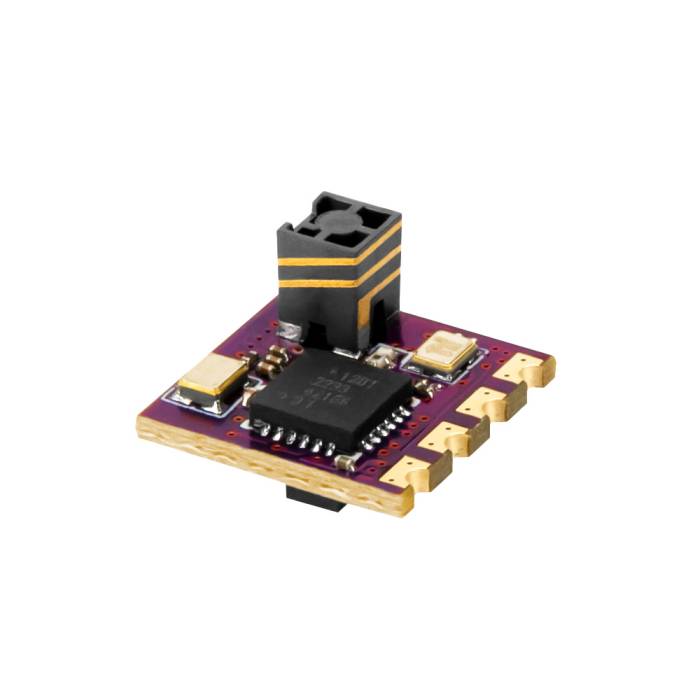

The Happymodel EP2 TCXO RX is a nano-sized true diversity 2.4GHz ELRS receiver with RF amps. This TCXO Rx receiver uses a temperature-compensated crystal oscillator to help with accurate MCU clock frequency, thus improving the performance and reliability of your RC link. Despite the small size, the low latency and high refresh rate of the ELRS system allow this receiver to be used on full-size/long-range quads, while also being small enough to be used on whoop-size quads! The Happymodel EP1 RX includes an IPEX connector for a dipole antenna, while the EP2 RX includes a built-in SMD antenna.

The EP1, EP2, and EP1 Dual modules are based on the ESP8285 MCU that allows for upgrading via WiFi, along with the SX1280(SX1281)IMLTRT RF Module.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Excellent performance in extreme temperatures
• Uses a temperature-compensated crystal oscillator
• SMD Ceramic antenna
• ESP8285 MCU
• High-refresh-rate RF module

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Type: ISM2.4GHz
• ESP8285 MCU
• SX1280(SX1281)IMLTRT RF Module
• SMD Ceramic antenna
• Frequency Range: 2400 MHz to 2500 MHz
• Receive refresh rate: 25HZ~500Hz
• Working voltage: 5v
• Weight: 0.44 gram
• Dimension: 10mm*10mm*6mm
• Peak gain: 3.7dB

Firmware

• Default Firmware out of the factory: HappyModel_EP_2400_RX V2.2 version
• Built-in a TCXO (temperature-compensated crystal oscillator)

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Happymodel ExpressLRS Nano 2.4GHz EP2 TCXO RX
