Frsky TD R6 2.4GHz/900MHz Dual Receiver

The Tandem dual-band Receiver simultaneously operates on 2.4GHz and 900MHz, delivering low latency, long-range, and reliable, anti-interference performance. With a dual-band antenna for wide signal coverage and a built-in black box for telemetry data, they simplify flight analysis. The compact TD R6 receiver features 6 PWM outputs, SBUS Out, and FBUS/S.Port compatibility, enabling seamless integration with telemetry devices and easy setup.

• Simultaneous operation in 2.4G & 900M dual-band TD mode
• Dual-band antenna design for multi-directional coverage
• SBUS Out (supports 16CH / 24CH mode)
• Over-The-Air (OTA) firmware updates
• Long control range (up to 50–100 km)
• 4ms race mode with telemetry
• Compact, lightweight design
• FBUS / S.Port support
• 6 PWM channel ports
• Black Box function

• Voltage Measurement Range via AIN2 (External Device): 0–30 V
• Compatibility: TANDEM series radios & RF module in TD mode
• Operating Voltage: 3.5–10 V (recommended: 3.7–8.4 V)

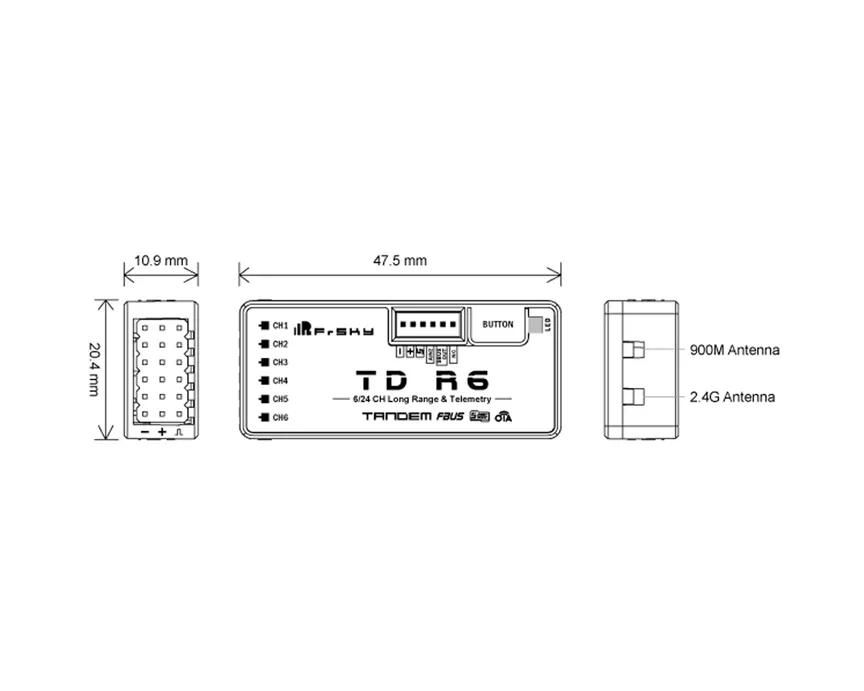

• Dimensions: 47.5 × 20.4 × 10.9 mm (L × W × H)
• 2.4G/900M Antenna Connector: IPEX1
• Operating Current: ≤110 mA @ 5 V
• Frequency: 2.4 GHz & 900 MHz
• Weight: 11.5g

• 1x Frsky TD R6 2.4GHz/900MHz Dual Receiver
