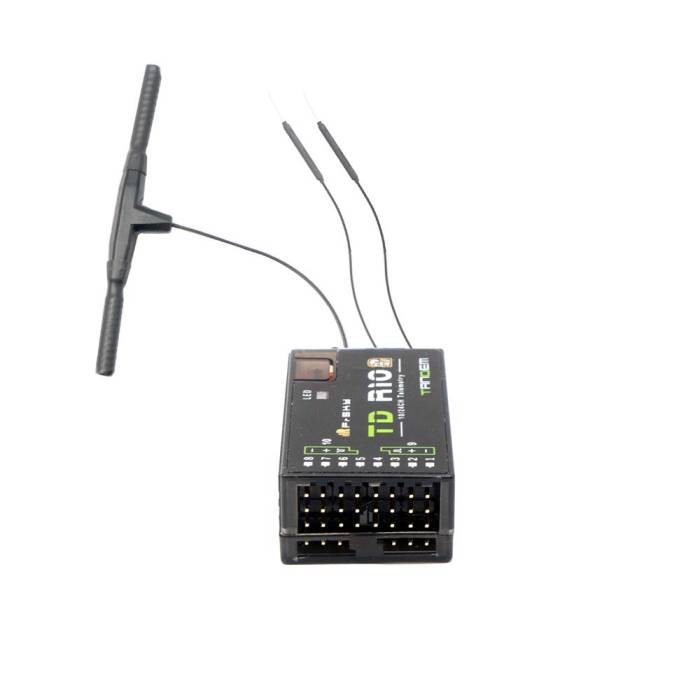

FrSky TD R10 2.4GHz 900M Dual Band Tandem Receiver w/ Antennas
FrSky TD R10 2.4GHz 900M Dual Band Tandem Receiver w/ Antennas
In Stock
About this product
The FrSky TD R10 2.4GHz 900M Dual Band Tandem Receiver w/ Antennas is unlike any other FrSky 2.4Ghz or 900Mhz receiver - the TD R10 works simultaneously at both 900Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only low latency signal and long-range control, but also benefit from the enhanced level of high reliability and anti-interference performance. The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the remote signal. The data (Power & Signal related) under unusual status during the flight can be recorded by Tandem receivers through a built-in black box module. The configurable 10-channel ports are a big feature of TD R10, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the builds setup.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: FrSKY TD R10 and MX Dual Band receivers
Features
- 10 Configurable Channel Ports: CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In and CP2-10: PWM / SBUS Out / FBUS / S.Port
- Supply current range(every single port:)Instantaneous current:5A/ Continuous current:3A
- Triple antenna design for multi-directional coverage
- Simultaneous working dual-band TD mode
- Long control range (up to 50KM – 100KM)
- 4ms Race Mode with Telemetry
- Over-The-Air (OTA) FW update
- Built-in voltage sensor
- Black Box function
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
(INSERT FLIGHT CONTROLLER TITLE HERE IN BOLD CAPS)
- Antenna: Triple 2.4G/900M Antenna (External 2.4G antenna (IPEX1)Â and External 900M antenna (IPEX1)
- Compatibility: Tandem series transmitter & TD protocol capable RF module
- Dimension: 46.5*26.3*14.7mm (L*W*H)
- Operating Current: ≤180mA@5V
- Operating Voltage: 3.5-10v DC
- Frequency: 2.4GHz & 900MHz
- Weight: 16.6g
(INSERT ESC TITLE HERE IN BOLD CAPS)
- Â
(INSERT VTX TITLE HERE IN BOLD CAPS)
- Â
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Includes
- 1x FrSky TD R10 2.4GHz 900M Dual Band Tandem Receiver w/ Antennas
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19404 |
---|---|
UPC (GTIN) | 764613352252 |
Manufacturer | FrSky |
NDAA Compliant | No |
Item Returns | This item can be returned |
