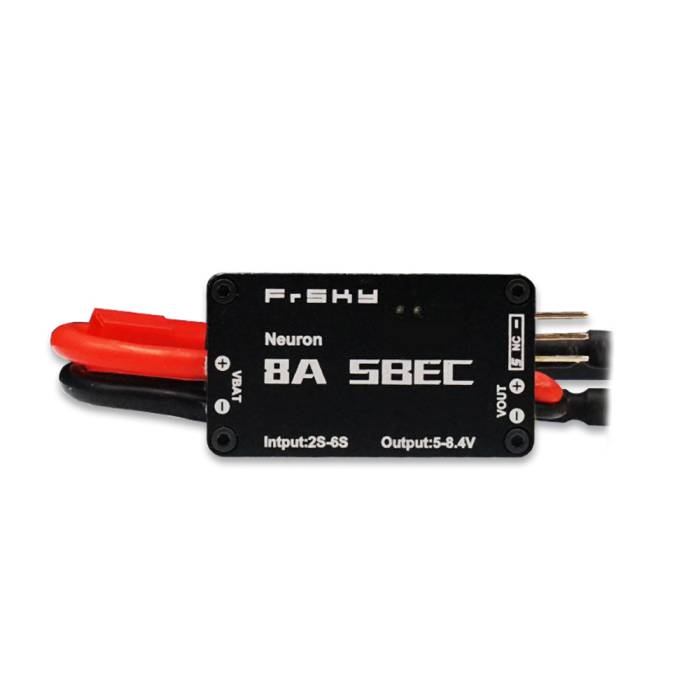

FrSky S.Port Neuron 8A SBEC Regulator for Transmitter and Receiver
FrSky S.Port Neuron 8A SBEC Regulator for Transmitter and Receiver
About this product
The 8A SBEC is the latest S.Port-capable accessory in the Neuron Series line-up.
The 8A SBEC acts as an independent regulator and supports a maximum current of up to 8 amps. The unit can be used to provide regulated power to receivers, lights, sound systems, and servos that require a constant voltage at higher amps to operate.
The Neuron SBEC is completely S.Port compatible by connecting directly to FrSky S.Port receivers. Upload the LUA script for your FrSky transmitter and the SBEC voltage can be changed from 5~8.4V remotely. In addition, the voltage can also be adjusted by Free Link App by connecting the S.Port to an Airlink S Wireless Module.
Features
- Smart Port enabled and telemetry data (Current & Voltage) transmission supported
- Adjustable SBEC output voltage through LUA script or through Free Link App with Airlink S
- Supports maximum current up to 8 amps
Specifications
- Dimension: 38.6*21.6*9 mm (L×W×H)
- Weight: 21.5g
- Adjustable Output Voltage: 5~8.4V
- Max Output Current: 8A
- LiPo Cells Input: 2S (MAX 5A@5V) ~ 6S
Manual
Includes
- 1 x FrSky S.Port Neuron 8A SBEC for Transmitter and Receiver
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
SKU | 13409 |
---|---|
UPC (GTIN) | 751313215215 |
Manufacturer | FrSky |
NDAA Compliant | No |
Item Returns | This item can be returned |
