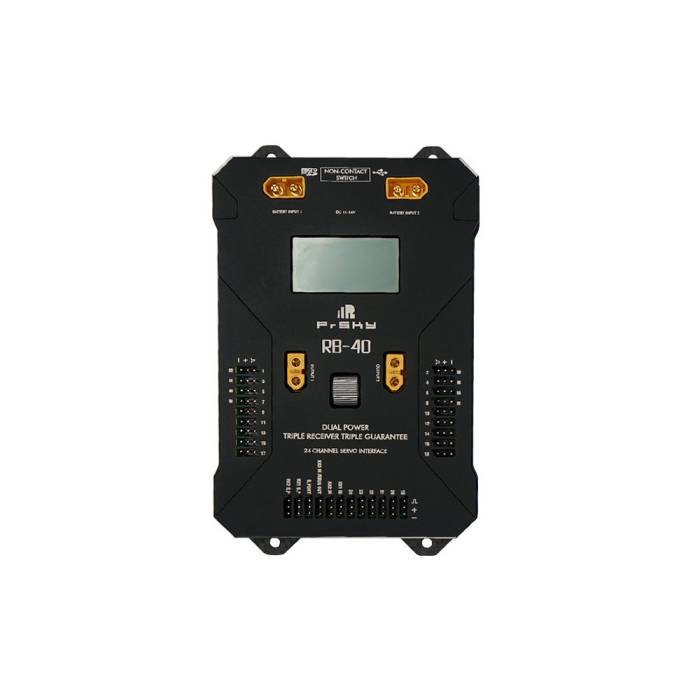

The FrSky RB-40 24CH PWM Receiver Redundancy Bus w/ Menu Scroll Button & LCD Screen features Dual Power and Triple Receiver. It supports up to 24 high-voltage PWM servos each with overload protection, including 8 channels with current detection. Previous redundancy bus models offered a dual-power with a dual-receiver design. The RB-40 allows the user to use a triple redundancy by adding a multiplex port (RX3 IN / SBUS Out) and uses a set of standard XT60 plugs which provides a safe and efficient way to provide power. The RB-40 is an extensive sensor module with a built-in gyroscope that supports model stabilizing functions and includes other diversified telemetry feedback like voltage, power consumption, altitude, and a lot more. It can be used as an alternative to using a GR or S series receiver. The non-contact NFC switch is an external device that enables the power to be switched on/off on command without the need to plug/unplug the battery connections. Once power is connected, the black-box function is automatically activated and immediately starts recording the data. The RB-40 features a display screen and a scroll button for convenient navigating and configuring of telemetry data.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing

• Various S.Port Telemetry Feedbacks (Voltage, Current, Alt, VSpd, Power Consumption, etc.)
• Supports Stabilization Function with Built-in Gyroscope Sensor
• Multiple configuration methods (Lua script and FreeLink)
• High-voltage Servo Supported (Up to 24 PWM servos)
• Dual Power & Triple Receiver Guarantee
• Compatible with FrSky S.Port products
• Channel 1 – 8 with Current Detection
• Overload Protection on Each Channel
• CNC Aluminum & Carbon Fiber Case
• LCD Screen with Menu Scroll Button
• Non-contact NFC Switch Function
• Black Box Data Record Function

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

(INSERT FLIGHT CONTROLLER TITLE HERE IN BOLD CAPS)

• OUTPUT1&OUTPUT2：SBEC OUTPUT, Continuous Current: 2*30A@5~8.4V
• Recommended input voltage range: DC 11~26V
• Number of Servo Connectors: up to 24
• Operating temperature:-20℃~75℃
• Dimension: 163.2*100*23.5mm
• Weight: 260g

(INSERT ESC TITLE HERE IN BOLD CAPS)

(INSERT VTX TITLE HERE IN BOLD CAPS)

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

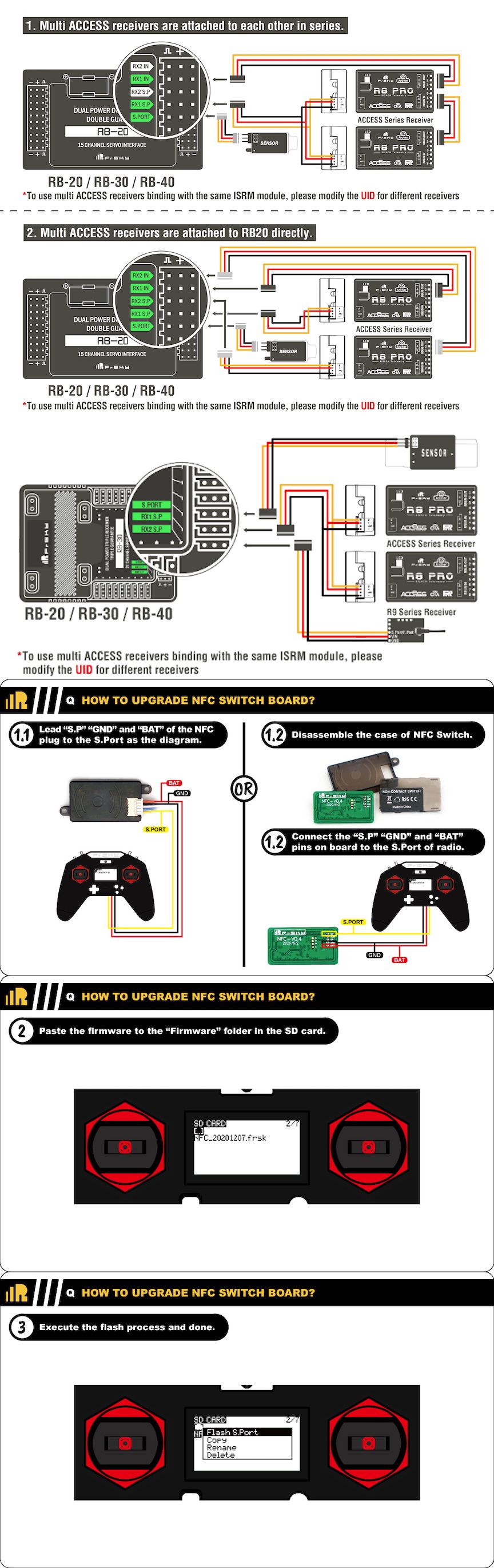

• Latest Firmware for NFC Power Switch
• Latest Lua Script - Open TX
• Latest RB-40 Firmware
• FrSky Freelink APP
• Manual

• 1x FrSky RB-40 24CH PWM Receiver Redundancy Bus w/ Menu Scroll Button & LCD Screen
