DeepSpace Nano ELRS 2.4GHz 100mW Receiver + 80mm Antenna
$16.99
In Stock
Only left for same day shipping. Order now!
DeepSpace Nano ELRS 2.4GHz 100mW Receiver + 80mm Antenna
The DeepSpace ELRS Nano 2.4GHz 100mW Receiver is a high-performance receiver built on the ExpressLRS platform, offering long-range control with ultra-low latency for FPV drones.
About this product
The DeepSpace ELRS Nano 2.4GHz 100mW Receiver is a high-performance receiver built on the ExpressLRS platform, offering long-range control with ultra-low latency for FPV drones. Its integrated Power Amplifier delivers strong, stable signal transmission, while a temperature-compensated oscillator ensures consistent performance across varying conditions. Designed for reliability and responsiveness, this receiver is ideal for freestyle, racing, and long-range FPV applications.
Features
- ESP32 chip
- Built-in TCXO
- Compact and lightweight design
- High sensitivity

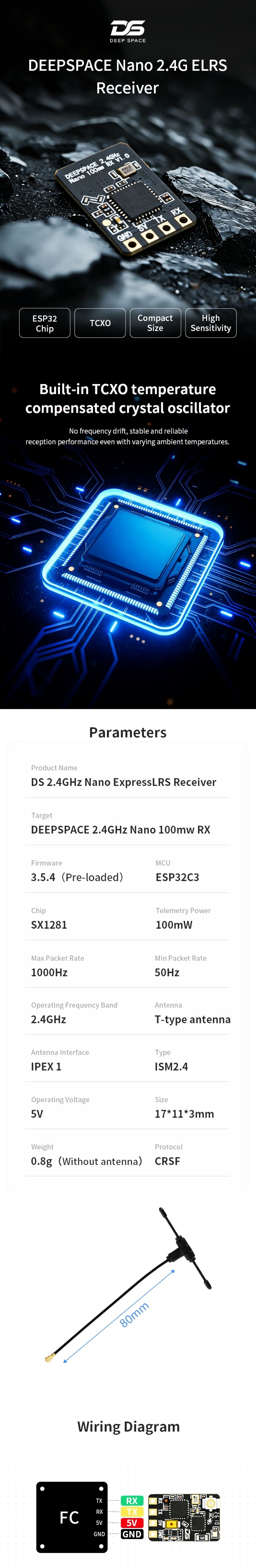

Specifications
- Model: DeepSpace ELRS Nano 2.4GHz
- RF Frequency: 2.4GHz ISM
- Chipset: ESP32C3, SX1281
- Crystal Oscillator: TCXO
- Telemetry Power: 100mW
- Protocol: CRSF
- Refresh Rate: 50Hz – 1000Hz
- Input Voltage: 5V
- Dimensions: 17mm x 11mm x 3mm
- Weight: 0.8g (without antenna)
Includes
- 1x DeepSpace Nano ELRS 2.4GHz 100mW Receiver
- 1x Twisted Connector Cable
- 1x 80mm Antenna
- 2x Heat Shrink Tubing
More Information
| SKU | G24122CN1Z |
|---|---|
| UPC (GTIN) | 723326380099 |
| Manufacturer | DeepSpace |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Radio Receiver Protocol | ELRS |
| RX Frequency | 2.4GHz |
| Antenna Mode | Single |
| Antenna Connector / Length | IPEX-1 |
| Antenna Frequency | 2.4GHz |
