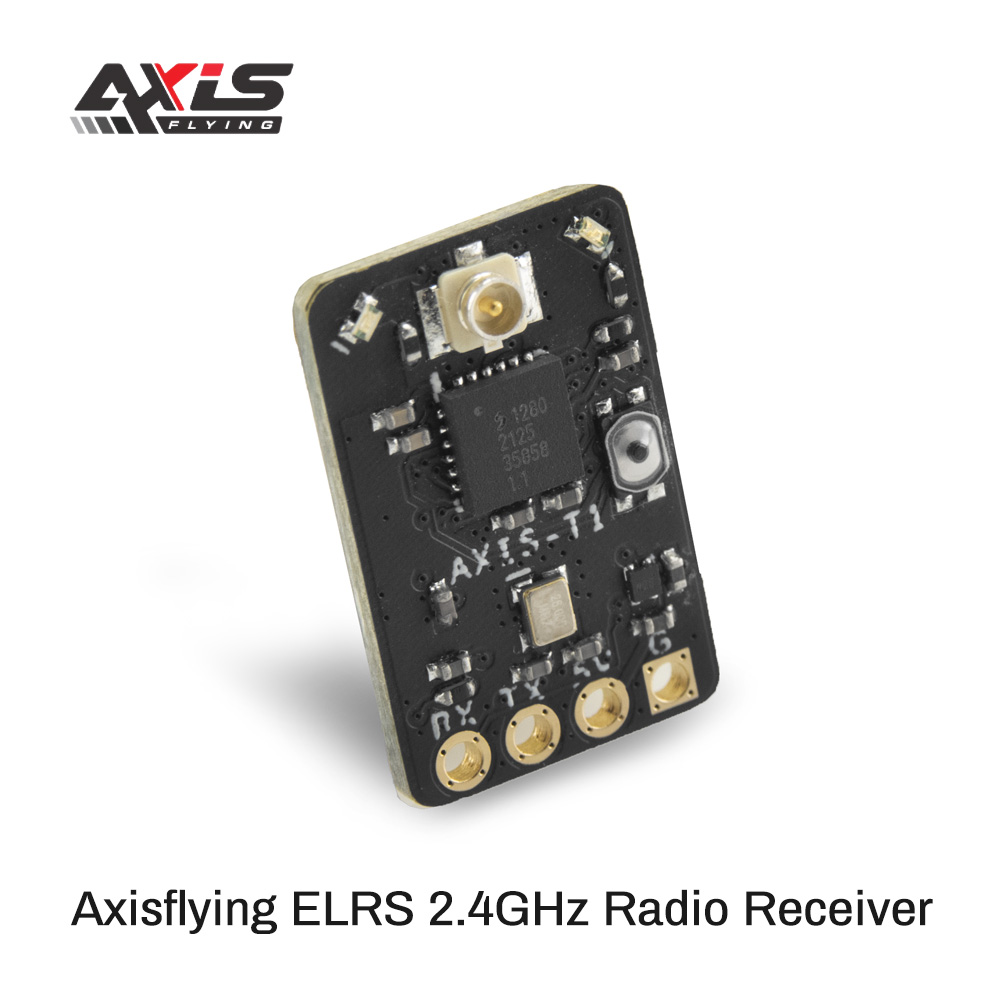

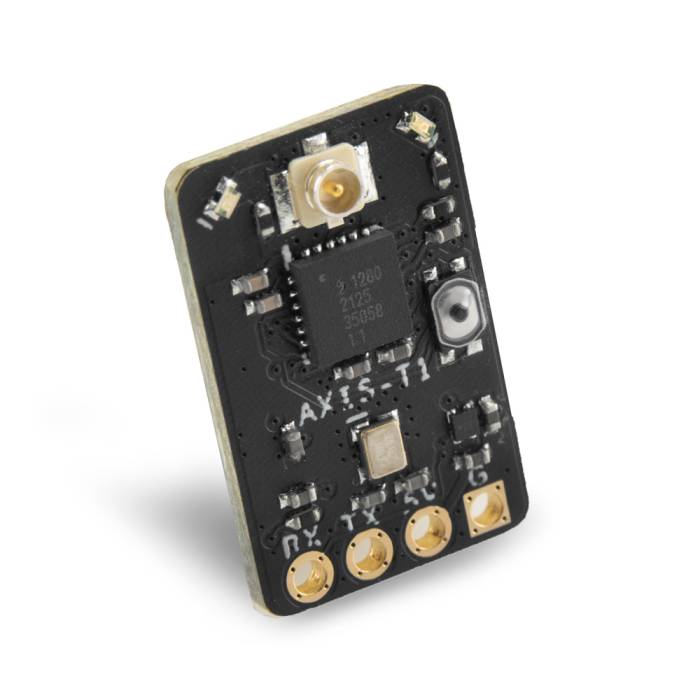

Axisflying ELRS 2.4Ghz Radio Receiver

The Axisflying ELRS Radio Receiver is a radio receiver based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance. Featuring a 2.4Ghz frequency, this receiver connects well with the Thor TX Pro Micro Module.

Features

• 2.4GHz Frequency
• IPEX Connector
• ELRS Reciever

Specifications

• Weight: 0.8g(Reciever only), 2.4g (W/ Antenna)
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum Receive Refresh Rate: 500Hz
• Minimum Receiver Refresh Rate: 25Hz
• Dimension: 18.2x11.75x3mm
• RF Module: SX1280IMLTRT
• Antenna Connector: IPEX
• Receiver Protocol: CRSF
• Working Voltage: 5V
• MUC: ESP8285
• Type: ISM

WIRING PINOUT

• Receiver protocol: Serial-based receiver – CRSF
• Receiver RX — FC UART_TX for Telemetry
• Receiver TX — FC UART_RX for Control
• Receiver 5V — FC 5V or 4v5
• Receiver G — FC GND

Includes

• 1x Axisflying ELRS 2.4GHz Radio Receiver
• 1x 2.4Ghz T-Antenna (For Reciever)
• 1x Silicone Wiring
• 1x Heat Shrink
