MATEKSYS mLRS 2.4GHz TX Module Kit - mR24-30 TX
In Stock
About this product
The MATEKSYS mLRS 2.4GHz TX Module Kit - mR24-30 TX offers reliable long-range communication, ideal for drone flights and remote control applications. It includes the mR24-30-TX module, IPEX MHF1 to SMA and RP-SMA adapter cables (5cm each), and a 5V fan (25×25×10mm) for stable operation. Customize your setup as needed.
Note: SMA antenna and 3D-printed case not included.
VIDEO: (Insert Video Title here in Bold)
Features
- Reliable Long-Range Communication
- Adapter Cables Included
- mR24-30-TX Module
- Customizable Setup
- Cooling Fan
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
mR24-30
- RF Power: 13dBm (min) / 20dBm / 24dBm / 27dBm / 30dBm (1000mW)
- Antenna Connector: IPEX MHF-1 to SMA/RP-SMA
- STM32G431KB: mLRS firmware
- RF Frequency: 2.4GHz ISM
- LoRa SX1281: TCXO
- PA/LNA: SKY68383-11

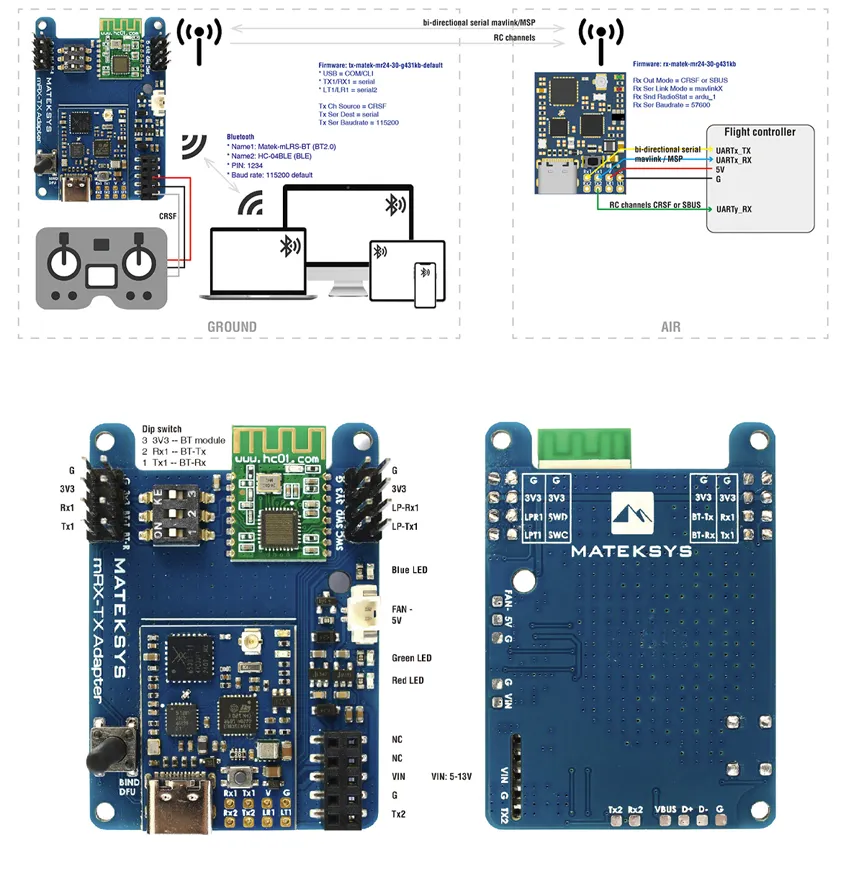

mRx-Tx ADAPTER
- Built-in: 5V fan controller, running if output power ≥ 500mW
- Power Supply: 5-13V DC @ JR_PIN3 (VIN)
- Red and Green LEDs: for mLRS status
- One button: DFU mode and Bind
- Built-in: HC-04 Bluetooth module
- Blue LED: Bluetooth status
- TX2: RC IN (CRSF)
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
Binding
- After powering on, press the bind button (for approximately 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternately at approximately 2.5 Hz.
Binding Documentation - Binding Manual
Firmware
- Target: tx-matek-mr900-30-g431kb-default
- mLRS: Firmware Repository

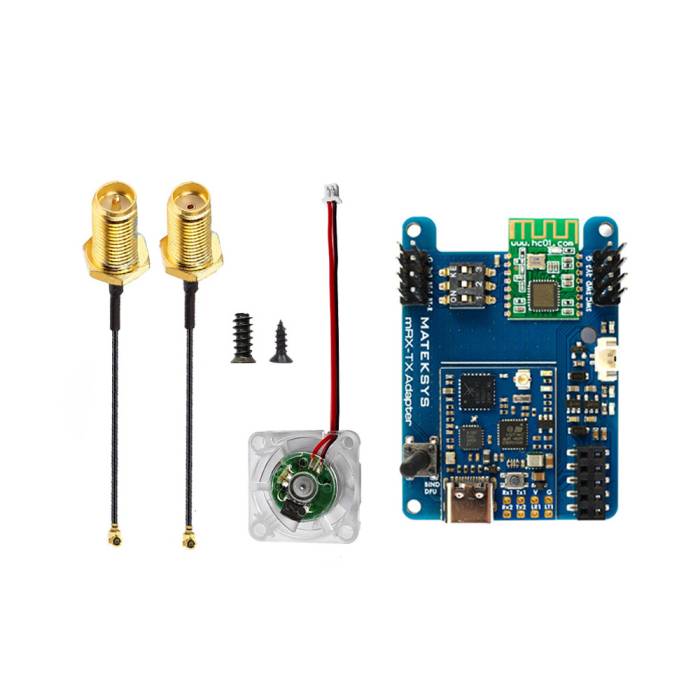

Includes
- 1x MATEKSYS mLRS 2.4GHz TX Module Kit - mR24-30 TX
- 1x IPEX MHF1 to RP-SMA adapter cable (5cm)
- 1x IPEX MHF1 to SMA adapter cable (5cm)
- 1x 5V Fan (25×25×10mm)
- 1x Hardware Kit
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22453 |
|---|---|
| UPC (GTIN) | 723326368899 |
| Manufacturer | MatekSys |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Transmitter Protocol | mLRS |
| Tx Frequencies | 2.4GHz |
| Transmitter Module Type | JR Module |
