Holybro SiK Telemetry Radio V3 (2pcs) - 100mW 915MHz
Holybro SiK Telemetry Radio V3 (2pcs) - 100mW 915MHz
In Stock
About this product

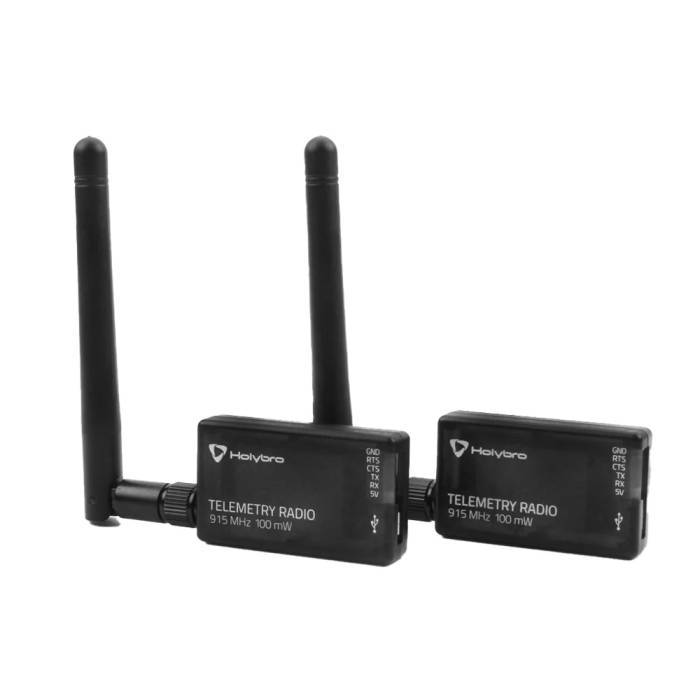

This Holybro SiK Telemetry V3 Radio is a small, light, and inexpensive open-source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometers using a patch antenna on the ground). This radio is plug-and-play for all Pixhawk Standard and other Flight controllers, providing the easiest way to connect telemetry between your autopilot and a ground station. It uses open-source firmware specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4 Autopilot.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Error correction corrects up to 25% of bit errors. Open-source SIK firmware
- 2-way full-duplex communication through adaptive TDM UART interface
- Configurable through Mission Planner & APM Planner
- Plug-n-play for Pixhawk Standard Flight Controllers
- Connect your Autopilot and Ground Station easily
- Micro-USB port (Type-C Adapter Cable Included)
- Interchangeable air and ground radio
- 6-position JST-GH connector
- Open-source SIK firmware
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Maximum output power (adjustable): 100 mW -117 dBm receive sensitivity
- Configurable duty cycle: Frequency Hopping Spread Spectrum (FHSS)
- Electrical Data:
- Supply voltage: 5V DC (from USB or JST-GH)
- Transmit current: 100 mA at 20dBm
- Serial interface: 3.3 V UART
- Receive current: 25 mA
- Dimensions: 28 x 53 x 10.7mm (without antenna)
- FT230X/FT231: USB to BASIC UART IC
- FCC IDENTIFIER: 2AP22-HT03-V3
- Protocol framing: MAVLink
- Serial link: Transparent
- Connector: RP-SMA
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
Includes
- 2x Holybro SiK Telemetry Radio V3 - 100mW/915MHz w/ Antennas
- 1x JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
- 1x JST-GH-6P to JST-GH-6P cable (for Pixhawk Standard FC)
- 1x Micro-USB to Micro-USB OTG adapter cable
- 1x Micro USB to Type C Adapter
- 1x Micro-USB to USB-A cable
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 21512 |
---|---|
UPC (GTIN) | 724376358397 |
Manufacturer | Holybro |
NDAA Compliant | No |
Frequencies | 915MHz |
Item Returns | This item can be returned |
