BETAFPV Micro Bay to Nano Module Adapter

The BETAFPV Micro to Nano Module Adapter allows nano-sized transmitter modules to be used with radios that feature a JR-style micro module bay. This adapter provides a simple way to run compact nano modules, such as the BETAFPV Nano ELRS module, on transmitters designed for larger micro modules. It offers a clean and convenient solution for expanding radio compatibility while keeping your setup lightweight.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

• Compatible with nano-size transmitter modules and JR-style micro module bays
• Allows nano modules to be used on transmitters with a micro module port
• Optimized for use with BETAFPV Nano ELRS modules in 900MHz or 2.4GHz versions

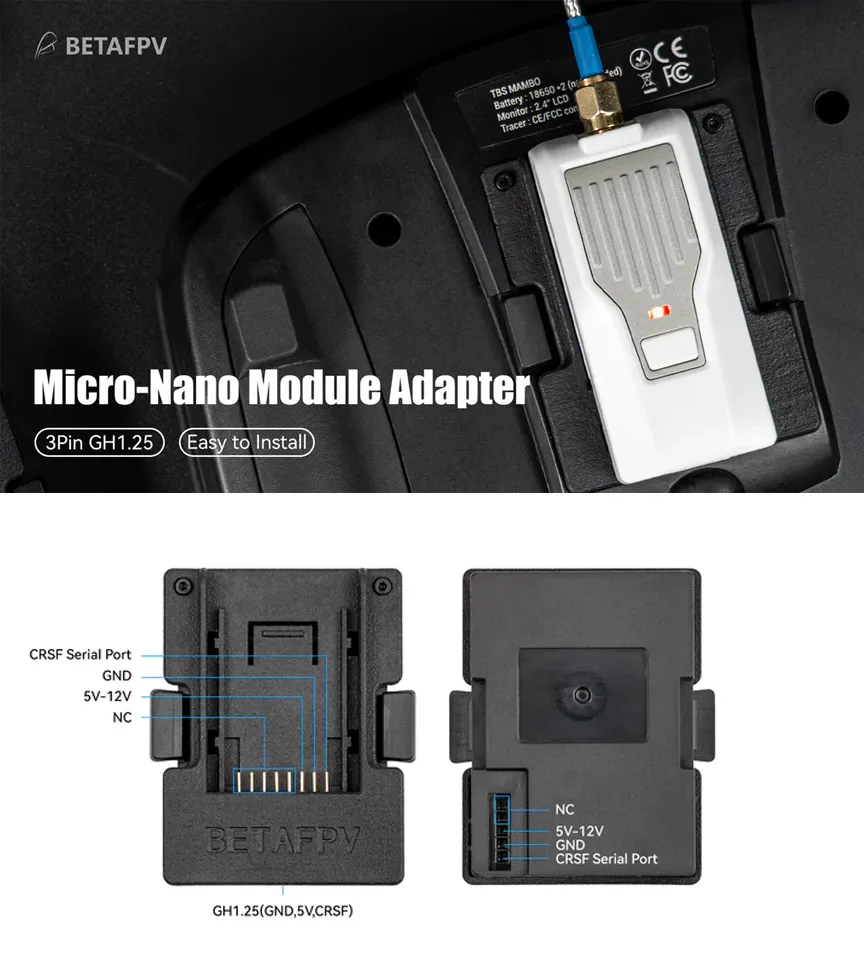

• Input: JR module bay (Micro module bay)
• Output: Nano module bay (Lite module bay)
• Supported Radio Transmitters: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S,
• Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro,
• Radiomaster TX16S/TX18S, TBS Mambo
• Supported TX Modules: BETAFPV Nano TX Module, TBS Crossfire Nano TX、Frsky XJT Lite/R9M Lite/R9M Lite Pro.
• Dimensions: 65x48x28mm
• Weight: 24.8g

• 1x BETAFPV Micro-Nano Module Adapter
• 1x Converter cable
