RadioMaster TX16S CNC AG01 Hall Gimbal (Set of 2) w/ Self Centering + Throttle (Hollow)
RadioMaster TX16S CNC AG01 Hall Gimbal (Set of 2) w/ Self Centering + Throttle (Hollow)
Back Ordered
About this product

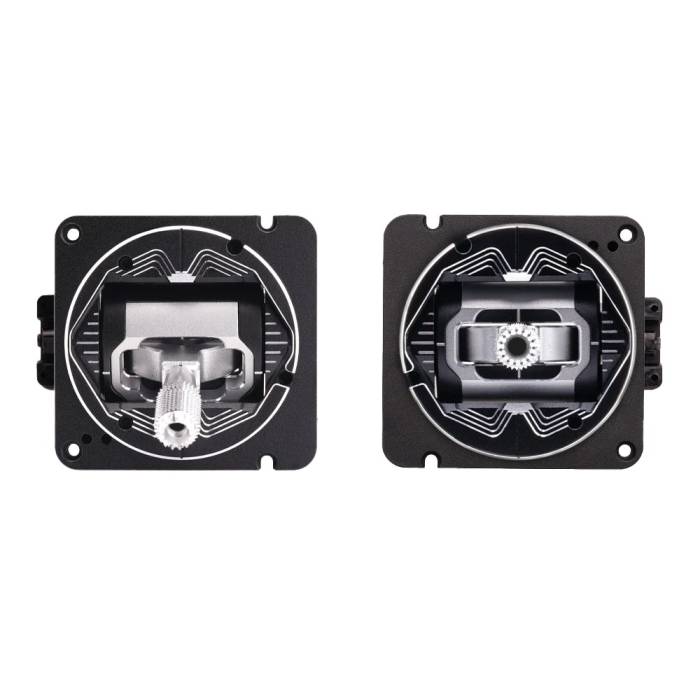

This Radiomaster AG01 Full CNC Hall Gimbal Set (Hollow Shaft) set was designed and tested and features both the Self-Centering Gimbal and the Throttle Gimbal. The AG01 is fully CNC milled for ultimate precision with quad-ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning. The AG01 will take your TX16s to the next level. The AG01 gimbals have been in development with our engineers and champion pro pilots. These gimbals have a hollow shaft to allow wiring for aftermarket 4mm gimbal stick ends with buttons, switches, etc. These are for special use cases only.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
Features
- With a hollow shaft to allow wiring for aftermarket 4mm, gimbal stick ends with buttons, switches, etc
- Non-contact hall sensors for accurate control inputs and precise centering
- Designed specifically for the RadioMaster TX16S Radio
- Quad precision bearings for an unparalleled stick feel
- Mode Switching Throttle Tension Adjustment
- CNC Aviation-Grade Aluminum
- Spring Tension Adjustment
- Quad Precision Bearings
- Stick Travel Adjustment
- Ergonomic Stick Ends
- Sticky360 Stick Ends
- Hollow Stick Version
- Adjustable Exterior
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Item: AG01 CNC Hall Gimbal- HOLLOWSHAFT- Set
- Adjustable travel range: 38°—54°
- Temperature range: -20°c-85°c
- Linearity: Real-time (No delay)
- Working voltage: DC 3.3V
- Adjustable tension: Yes
- Adjustable mode: Yes
- Quad bearing: Yes
- Size: 60*53*56mm
- Sensing type: Hall
- Weight: 162g/set
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- RadioMaster TX16S MKII MAX PRO Multi-Protocol 2.4GHz Radio Transmitter w/ AG01 Gimbals - Lumenier Edition
- RadioMaster TX16S CNC AG01 Hall Gimbal (Set of 2) w/ Self Centering + Throttle - Black
- RadioMaster TX16S CNC AG01 Hall Gimbal Set - Lumenier Edition (Blue)
- RadioMaster TX16S CNC Upgrade Parts Set
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Radiomaster TX16S CNC Hall Gimbal - Self-Centering (Hollow Shaft)
- 1x Radiomaster TX16S CNC Hall Gimbal - Throttle (Hollow Shaft)
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 20653 |
---|---|
UPC (GTIN) | 724376354399 |
Manufacturer | RadioMaster |
NDAA Compliant | No |
Item Returns | This item can be returned |
