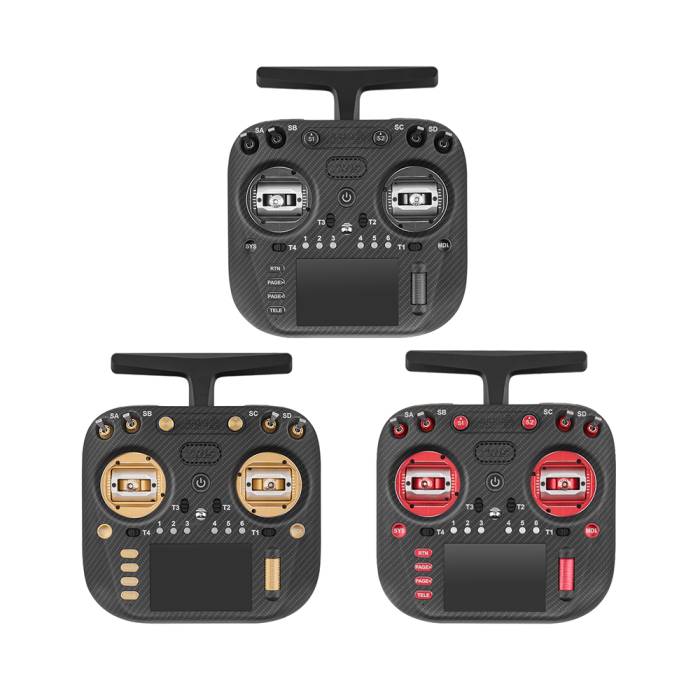

RadioMaster TX15 Max Radio Transmitter - ELRS 2.4GHz

The RadioMaster TX15 Max Radio Transmitter - ELRS 2.4GHz continues to redefine the open-source remote control landscape after years of collaboration with our open-source partners and users. Driven by the high-performance STM32 H7 chip, it’s the powerhouse behind our fastest radio ever — enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes. The TX15 MAX is built to perform. A smart balance battery circuit maximizes flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.

Note: Batteries are not included.

Lumenier NAV 3000mAh 1S 18650 Li-ion (2Pcs)

VIDEO: RADIOMASTER TX15 &TX15 MAX | Next-Level Performance!

• Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
• Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
• Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.
• Built-in ExpressLRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and long-range control.
• Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
• Powerful, Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
• AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.
• Customizable RGB Gimbal Light- Ring: Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.
• Foldable Antenna: Compact and easy to store without compromising signal strength.
• Built-in Microphone: For future feature expansion.
• Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
• Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
• Interchangeable Shoulder Switches: Customize your controls to match your flying style.

EDGETX OPERATING SYSTEM AND EXPRESSLRS RF SYSTEM PRE-INSTALLED

Preinstalled with EdgeTX and ExpressLRS, the BOXER Crush Radio features cutting-edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute to and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.

• Item: TX15 Max Radio Transmitter
• Size: 178*168*81mm
• Weight: 672g (without battery)
• Color: Red/ Black/ Gold
• Frequency: 2.400GHz OR Sub-G 900MHz
• Internal RF: ELRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Transmitter Module: Built-in ELRS
• Built-in Flash Size: 4GB
• Built-in Microphone: Yes (Future expansion)
• Built-in Gyro: Yes (ICM-42607-C)
• MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
• Antenna Gain: 2dB (transmit power adjustable)
• Current: 875mA at max power output
• Voltage Range: 6.6 - 8.4V DC
• Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
• Module Firmware: ExpressLRS
• Channels: Max 16 channels (Receiver dependent)
• Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included) / Lumenier NAV 3000mAh 1S 18650 Li-ion (2Pcs)
• Connectivity: USB-C
• Gimbals: AG02 CNC Hall sensor gimbals
• Gimbal Sticks: M4
• Upgrade Method: USB-C (UF2)
• Module Bay: JR-compatible module bay for additional modules

IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won't need to set up another receiver. If you don't have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
• If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
• Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.

• RadioMaster TX15 MAX Manual

• 1x TX15 Max Radio Controller
• 1x Signature Carry Case
• 1x Short 2-position Latching Shoulder Toggle Switch Assembly
• 1x Short 2-position Momentary Shoulder Toggle  Switch Assembly
• 1x 18650 Battery Tray
• 1x USB-C Cable
• 1x Screen Protector
• 1x 1.5mm Hex Wrench
• 4x High Tension Gimbals Springs
• 2x Gimbal Stick Set Screw
• 1x Stickers Set
• 1x User Manual
• 1x Inventory Card

Batteries NOT included. Check out the Lumenier NAV 3000mAh 1S 18650 Li-ion (2Pcs)
