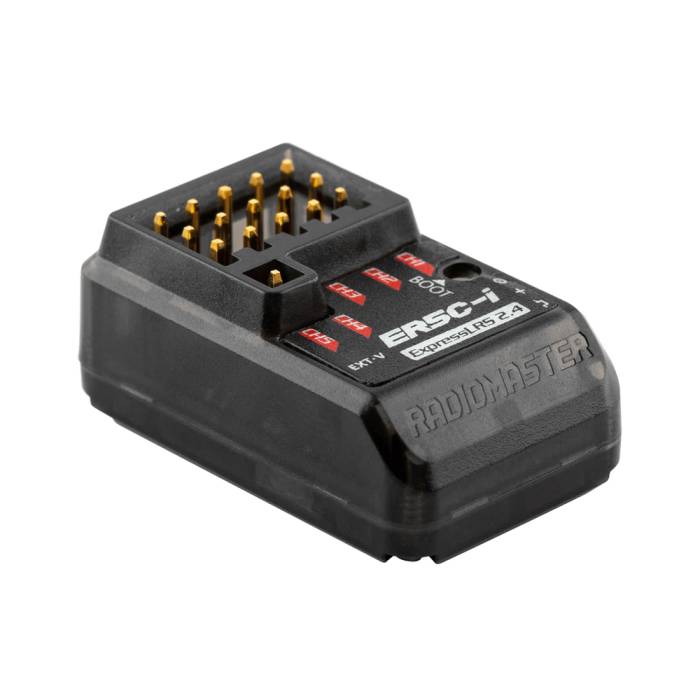

RadioMaster ER5C-i ExpressLRS 2.4GHz PWM Receiver w/ Built-in Antenna

RadioMaster ER5C-i ExpressLRS 2.4GHz PWM Receiver w/ Built-in Antenna

In Stock

Only left for same day shipping. Order now!
Earn
RadioMaster ER5C-i ExpressLRS 2.4GHz PWM Receiver w/ Built-in Antenna
The RadioMaster ER5C-i receiver harnesses the advanced ExpressLRS system, offering exceptional reliability, customizable settings, rapid response, and extended reception range for an unparalleled user experience.

About this product

The RadioMaster ER5C-i receiver harnesses the advanced ExpressLRS system, offering exceptional reliability, customizable settings, rapid response, and extended reception range for an unparalleled user experience. The ER5C-i ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry to detect which voltage input to use automatically. The ER5C-i features a built-in high-sensitivity ceramic antenna; it is designed for all surface models and provides a clean installation without antenna wires.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

Features

  • Built-in high-sensitivity ceramic antenna
  • Based on the Revolutionary ExpressLRS System
  • High performance, high reliability, flexible configuration, fast response speed and ultra-long range
  • Supports 5 PWM Channels
  • Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
  • Optimized ground-up PCB design
  • Supports Wi-Fi updates and WEBUI configuration
  • Built-in a TCXO (temperature-compensated crystal oscillator) ensures stable and accurate performance in any environment
  • Designed for all types of surface models

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • Item: ER5C-i 2.4GHz ELRS PWM Receiver
  • Power supply: DC 4.5 - 8.4V
  • Antenna type: Built-in high-sensitivity ceramic antenna
  • Wireless protocol: ExpressLRS 3.3.0 pre-installed
  • Output channel: 5CH PWM
  • Telemetry power: 10mW
  • Battery voltage detection range: DC 4.0 - 35V
  • Weight: 5.0 grams
  • Dimensions: 30.0*18.5*13.0 mm
  • Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER5C-i

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x RadioMaster ER5C-i 2.4GHz ELRS PWM Receiver
  • 1x Voltage Telemetry Wire
  • 1x User Card

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 21462
UPC (GTIN) 724376356225
Manufacturer RadioMaster
NDAA Compliant No
Item Returns This item can be returned
