Radiomaster ER5A V2 ExpressLRS 2.4GHz PWM Receiver w/ External Antenna

Radiomaster ER5A V2 ExpressLRS 2.4GHz PWM Receiver w/ External Antenna

In Stock

Only left for same day shipping. Order now!
Earn

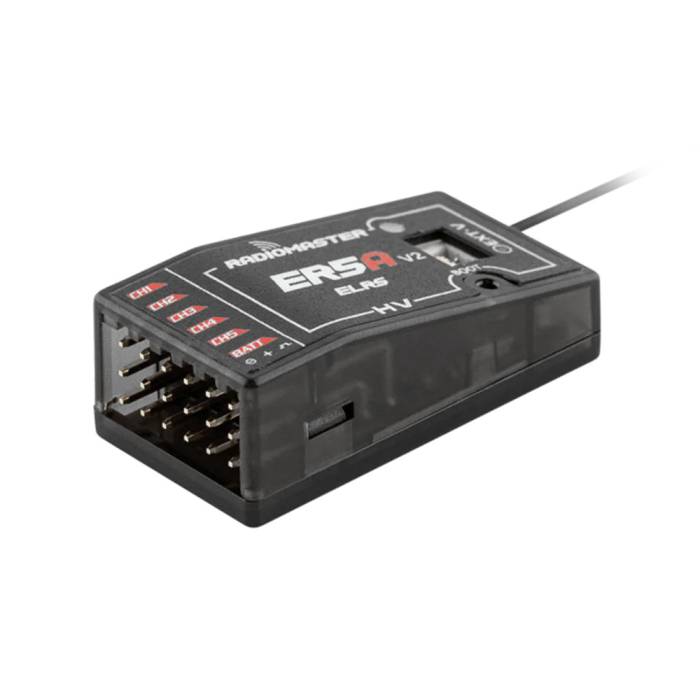

Radiomaster ER5A V2 ExpressLRS 2.4GHz PWM Receiver w/ External Antenna
The RadioMaster ER5A V2 receiver harnesses the advanced ExpressLRS system, offering exceptional reliability, customizable settings, rapid response, and extended reception range for an unparalleled user experience.

About this product

The RadioMaster ER5A V2 receiver harnesses the advanced ExpressLRS system, offering exceptional reliability, customizable settings, rapid response, and extended reception range for an unparalleled user experience. This ELRS receiver controls up to 5 servos, incorporates receiver voltage and battery telemetry, and automatically selects the appropriate voltage input. It's specially crafted for aircraft applications.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

Features

  • Based on the Revolutionary ExpressLRS System
  • High performance, high reliability, flexible configuration, fast response speed and ultra-long range
  • Support 5 PWM Channels
  • Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
  • Built-in a TCXO (temperature-compensated crystal oscillator), ensures stable and accurate performance in any environment
  • Optimized ground-up PCB design
  • Supports Wi-Fi updates and WEBUI configuration
  • Compact size, easy to install. Perfect for aircraft applications

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • Item: ER5A V2 2.4GHz ELRS PWM Receiver
  • Power supply: DC 4.5-8.4V
  • Antenna type: High-sensitivity antenna
  • Wireless Protocol: ELRS 3.3.0 pre-installed
  • Channels: 5
  • Telemetry Voltage Detection Range: DC 4.0 - 35V
  • RF Telemetry: Yes
  • Telemetry Power: 10mw
  • Weight: 6.7 grams
  • Size: 37.0 * 19.3 * 13.0mm
  • Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x RadioMaster ER5A V2 2.4GHz ELRS PWM Receiver
  • 1x Voltage Telemetry Wire
  • 1x User Card

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 21464
UPC (GTIN) 724376356201
Manufacturer RadioMaster
NDAA Compliant No
Item Returns This item can be returned
