RadioMaster Bandit Micro 915MHz ExpressLRS RF Module
RadioMaster Bandit Micro 915MHz ExpressLRS RF Module
Back Ordered
About this product

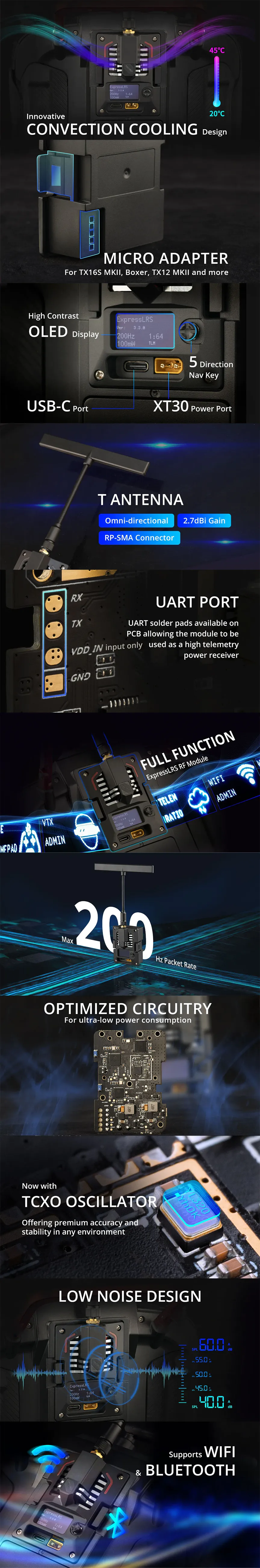

Introducing the all-new RadioMaster Bandit Micro ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for your long-range drone and UAV applications. With its innovative convection cooling system and built-in turbo fan, the Bandit Micro ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Micro form factor is ready to go with our TX16S MKII, Boxer, TX12 MKII, and other radios with a Micro Module bay.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: RadioMaster Bandit 868Mhz/915Mhz ELRS modules
Features
- Up to 1 Watt power output
- Packet rates up to 200Hz
- Optimized circuitry for ultra-low power consumption
- Built-in TCXO oscillator
- Low noise, high comfort
- High contrast OLED display
- Innovative convection cooling design
- Wifi and Bluetooth support
- Built-in ExpressLRS backpack
- 5 Directional nav key
- 915/868MHz T Antenna included
- With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Item: Bandit Micro ExpressLRS RF Module
- Regulatory Domain: FCC915
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- RF Chip: SEMTECH SX1276
- Refresh Rate Min/Max: 25Hz/200Hz
- RF Output Power: 1000mW/30dBm
- Micro standard 5pin connector
- Built-in OLED screen
- XT30 Power Supply Voltage: DC 6V ~ 16.8V
- Weight: 78.0grams (with T antenna)
- Dimension: 64.1*49.6*34.1mm
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x RadioMaster Bandit Micro 915MHz ExpressLRS RF Module
- 1x 900Mhz T-Antenna
- 1x Manual
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 21603 |
|---|---|
| UPC (GTIN) | 724376357963 |
| Manufacturer | RadioMaster |
| NDAA Compliant | No |
| Frequencies | 915MHz |
| Item Returns | This item can be returned |
