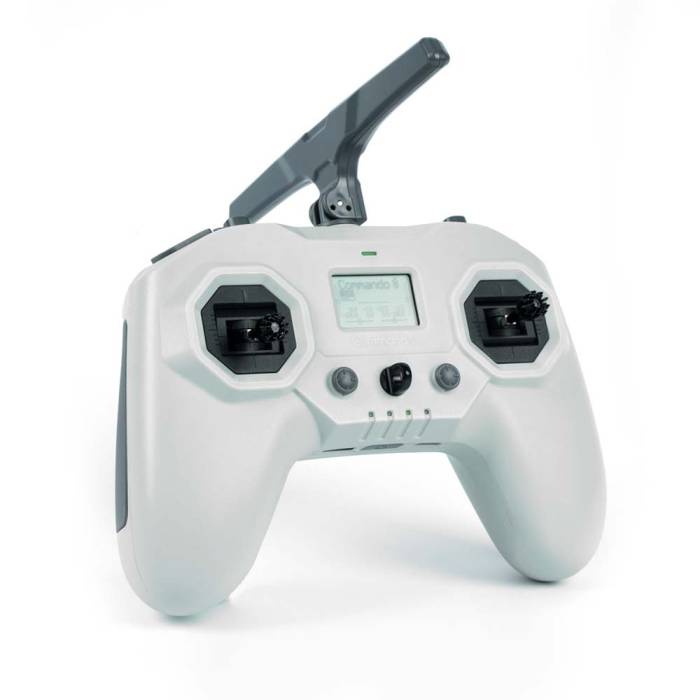

iFlight Commando 8 Radio Transmitter
The iFlight Commando 8 ExpressLRS Radio Transmitter is a game-style radio controller that comes with a built-in ExpressLRS module for best-in-class RF performance! Its compact size allows the user to easily carry it on trips or to the field. Full-featured and powerful, this is a great radio for any purpose.

About this product

The iFlight Commando 8 ExpressLRS Radio Transmitter is a game-style radio controller that comes with a built-in ExpressLRS module for best-in-class RF performance! Its compact size allows the user to easily carry it on trips or to the field. Full-featured and powerful, this is a great radio for any purpose.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: iFlight Commando8 // QuickStart Guide

Features

  •  Internal iFlight ExpressLRS (ELRS) transmitter (additional fan for cooling)
  • Market's lowest crystal frequency deviation (low packet loss, high-frequency stability)
  • Highest quality digital hall sensor gimbals for maximum precision
  • High-performance PCB Single and Dual Band (900/2400MHz) radio antenna
  • Inbuilt 4000mAh for up to 20h power (2x 2000mAh 18650 batteries)
  • Stock EdgeTX firmware with pre-installed Lua scripts
  • Several Gimbal Stick Ends available (stock 18mm)
iFlight Commando 8 Description

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • ExpressLRS 2.4GHz // Max Output 500mW
  • Radio Channels: 8
  • Input: Mini High Precision Digital Hall Gimbals with NMB bearings
  • Gimbal Stick Ends: Stock length 18mm
  • Charging: Type-C 20W Quick Charge
  • Battery: Built-in 4000mAh 1S2P 18650 Battery
  • Charging Connector: Type-C
  • Weight: 310g

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

ELRS Option Only (Single TX)

  • Single ELRS option includes 1x ELRS TX module (please select band) pre-installed in the back of the radio
  • A cooling fan is inside the flat back cover
  • Single Band or Dual Band antenna option (for future upgrades or module changes)
  • Dual Band antenna option for convenient multi-band use without changing the antenna

Button Functionality

  • 2 x 5-Axis menu buttons for full OpenTX or EdgeTx control
  • 2 x 2-position switches (not momentary)
  • 2 x 3-position switches

Antenna Options

  • Dual-Band (868/915MHz+2.4GHz)
  • Single-Band (2.4GHz)
  • Single-Band (868/915MHz)

Band Options

The 900MHz as well as 2400MHz band have outstanding performance and long range capabilities. If you're not sure what to get, please checkout the official ELRS Long Range Competition to see what has been achieved. https://www.expresslrs.org/2.0/info/long-range/

What can I expect? Due to local regulations, the 915MHz FCC region seems to have a better performance than the 868MHz EU region. The 2400MHz band works great in any region, has a higher packet rate up to 500hz. This is not a common 2400MHz protocol and cannot be compared to anything prior on the market.

RF Power

  • 2.4GHz system: SX1280
  • 868/915MHz system: SX1276
  • ExpressLRS 2.4GHz // Max Output 500mW
  • ExpressLRS 868/915MHz // Max Output 1000mW
  • BASE CC2500 2.4GHz Multiprotocol // Max Output 100mW
  • Radio Channels: 8
  •  Input: Mini High Precision Digital Hall Gimbals with NMB bearings
  • Gimbal Stick Ends: Stock length 18mm
  • Charging: Type-C 20W Quick Charge
  • Battery: Built-in 4000mAh 1S2P 18650 Battery
  • Charging Connector: Type-C
  • Weight: 310g

Links

Includes

  • 1 x iFlight Commando 8 2.4GHz Radio Transmitter - ELRS
  • 2 x 18650 Li-Ion batteries included (pre-installed)

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 19378
Manufacturer iFlight
NDAA Compliant No
Frequencies 2.4GHz
Item Returns This item can be returned
