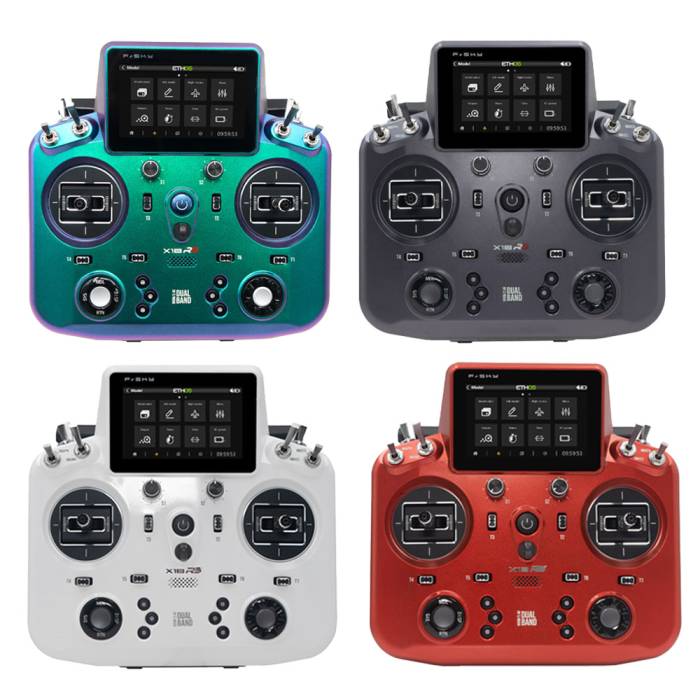

FrSky Tandem X18RS Dual Band 900MHz/2.4GHz Radio Transmitter

The FrSky TANDEM X18RS delivers top-tier RC performance with its TD-ISRM RS RF module, supporting dual-band 900M/2.4G and multiple protocols. Simultaneous ACCESS 2.4G and R9 modes ensure reliable long-range control. Its durable antenna handle, external LoRa connectors, sunlight-readable display, and adjustable CNC gimbals make it a rugged and precise choice for pilots.

Choose a Color:

• Porcelain White
• Meteorite Gray
• Chameleon
• Ruby Red

VIDEO: FRSKY | TANDEM X18RS 900M 2.4G DUAL-BAND TELEMETRY ETHOS RADIO

• Data Transmission & Recharge System via USB Type-C Interface
• Built-in TD-ISRM RS Dual-Band Internal RF Module
• Easy-to-Reach Top Switches and Sliders
• Built-in 512MB Flash Drive Storage
• Built-in 6-axis Gyroscope Sensor
• Convenience and Compatibility
• Performance and Connectivity
• Precision Control Gimbals
• Ergonomics and Controls
• High-Quality Display
• Advanced Features

UPGRADED DISPLAY AND COMPONENTS & 45°/60° TRAVEL-ADJUSTABLE MC18 GIMBALS

The X18RS features an upgraded 800 × 480 resolution screen with excellent sunlight visibility. Primary components, including trim caps and knobs, are crafted from metal, ensuring rugged quality and enhanced durability for outdoor use. The MC18 gimbals, CNC-machined from metal, can be adjusted to a 45° travel position from the default 60° setup straight out of the box.

UPGRADED ROBUST ANTENNA HANDLE & EXTERNAL LORA ANTENNA CONNECTORS

The newly upgraded antenna handle offers enhanced impact resistance, making it ideal for tough outdoor conditions. The reinforced, thickened antenna casing provides a more comfortable grip without compromising performance. In fact, the redesigned antenna transmits signal data more effectively, offering pilots a more reliable flying control experience. The X18RS is also equipped with two external antenna connectors, allowing the addition of 2.4G and 900M antennas to further enhance RF capabilities in LoRa modes, achieving improved long-range control.

TD-ISRM RS RF PERFORMANCE

With solid performance based on the dual-band 900M/2.4G RF signal link and multiple operating combinations of RF modes, the TANDEM X18RS is equipped with the built-in TD-ISRM RS RF module, which supports multiple protocols (such as TW, TD, etc.). The TD-ISRM RS RF module features dual 2.4G TW RF mode and supports simultaneous operation under ACCESS 2.4G and R9 modes. In this configuration, the ACCESS 2.4G and R9 receivers can be connected via the SBUS IN/OUT ports to provide redundant backup. This further enhances the RF signal's reliability, particularly in long-distance RC operation scenarios.

• Compatibility: ACCST D16, ACCESS 2.4G, R9 ACCESS, TD, and TW receivers
• Color Options: Chameleon, Ruby Red, Meteorite Grey, Porcelain White
• Recharge System: For 2S Li-ion Battery (USB Type-C Interface)
• Weight: 740 g (Battery Excluded) / 880 g (Battery Included)
• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Operating Voltage Range: 6.5–8.4 V (2S Li-battery)
• Backlit Touchable LCD Resolution: 800 × 480
• Dimensions: 200 × 192 × 98 mm (L × W × H)
• Operating Current: 500 mA @ 7.4 V (typ.)
• Charging Current: ≤1 A ±200 mA
• USB Adapter Voltage: 5 V ± 0.2 V
• Internal RF Module: TD-ISRM RS
• Built-in Flash Storage: 512 MB
• Lite Type External Module Bay
• Number of Channels: Up to 24
• USB Adapter Current: >2.0 A
• Operating System: ETHOS

• FrSky Tandem X18RS Dual Band 900MHz/2.4GHz Radio Transmitter Manual

• 1x FrSky Tandem X18RS Dual Band 900MHz/2.4GHz Radio Transmitter

VIDEO: FIRST LOOK: FRSKY X18RS
