CubePilot Herelink Controller Unit V1.1
$919.99
In Stock
Only left for same day shipping. Order now!
CubePilot Herelink Controller Unit V1.1

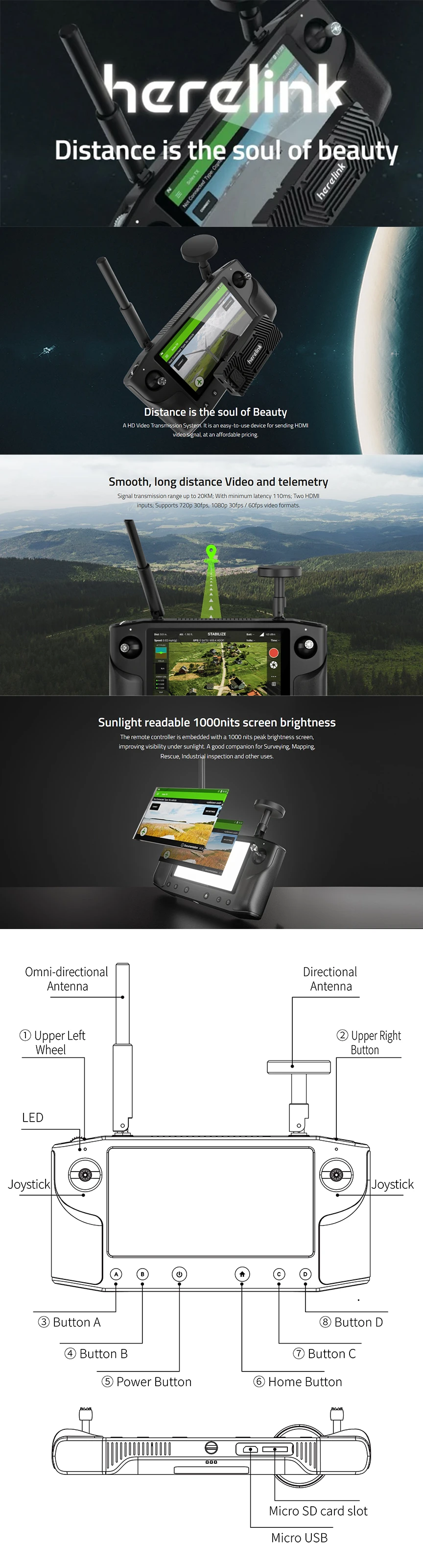

The Herelink Controller Unit V1.1 is part of the latest HD video transmission system from CubePilot.
About this product
The Herelink Controller Unit V1.1 is part of the latest HD video transmission system from CubePilot. Herelink is an integrated remote controller, ground station, and wireless digital transmission system designed to be used with the Cube autopilot, Ardupilot, or PX4. Herelink allows RC control and HD video and telemetry data to be transmitted up to 20km between the Air Unit and Controller. The Herelink Controller features custom Solex TX and QGC applications.
Features
- Bright 5.46″ 1080p capacitive touch display with up to 1000 nit brightness
- 8-core processor for responsive performance and custom apps
- Dual Hall-effect gimbals with removable sticks and backlit buttons
- Built-in Bluetooth, Wi-Fi, and long-range GPS transmission
- Average power consumption does not exceed 4W
Specifications
- Case Material: Plastic
- Weight: Herelink 1.1 – 536 g (including 2 antennas)
- Size: 217 × 106 × 31 mm (not including external antennas and joysticks)
- Screen: 5.46 inch, 1080P, 16 million colors, capacitive touch
- Screen Brightness: Herelink 1.1 – 1000 nit
- Audio: Built-in speaker × 1, built-in microphone × 2
- Remote: Hall effect gimbals with removable sticks × 2, scroll wheel × 1, bottom buttons × 6 with backlight, top button × 1 (right)
- Wireless Communication: Bluetooth / WiFi / GPS / 2.4 GHz map transmission ground
- Indicator Light: Tricolor LED × 2 (upper right and left corners)
- Interface: MicroUSB × 1, Micro SD × 1 (supports up to 64 GB)
- External Antenna: Directional antenna (5 dBi) × 1 detachable, omnidirectional antenna (2dBi) × 1 detachable
- Built-in Antenna: Built-in WiFi antenna, built-in GPS antenna, external GPS antenna interface × 1
- Power: Built-in 4950 mAh LiPo battery
- Charging: Supports micro USB 5 V, 2 A current charging
- Power Consumption: Average ≤ 4 W (picture transmission only, medium screen brightness, WiFi off, GPS off)
Links
Includes
- 1x Herelink Controller Unit V1.1
- 2x Herelink Controller Joystick
- 1x Herelink Omni-directional Antenna
- 1x Herelink Directional Antenna
- 1x Herelink Setup Tips Card
More Information
| SKU | G24168TW1Z |
|---|---|
| UPC (GTIN) | 723326380839 |
| Manufacturer | CubePilot |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Tx Frequencies | 2.4GHz |
| Radio Controller Style | Full-Size |
