The Herelink Blue Controller V1.1 is an all-in-one remote control and ground station designed for long-range drone operation, combining RC control, HD video, and telemetry into a single portable unit. With a bright capacitive touchscreen and powerful onboard processing, it delivers responsive performance and expanded connectivity for advanced flight applications.
CubePilot Herelink Blue Controller V1.1
$2,699.00
Out of Stock
Only left for same day shipping. Order now!
CubePilot Herelink Blue Controller V1.1
The Herelink Blue Controller V1.1 is an all-in-one remote control and ground station designed for long-range drone operation, combining RC control, HD video, and telemetry into a single portable unit.
NDAA Compliant Product
About this product
Features
- Bright 5.46″ 1080p capacitive touch display with up to 1000 nit brightness
- Integrated remote control, ground station, and video receiver in one unit
- 8-core processor for responsive performance and custom apps
- Dual Hall-effect gimbals with removable sticks and backlit buttons
- Built-in Bluetooth, Wi-Fi, and long-range 2.4 GHz/5.8 GHz communication
Specifications
- Case Material: 6061 Aluminum with Cerakote coating
- Weight: Herelink Blue 1.0 – 961 g | Herelink Blue 1.1 – 725 g (including 2 antennas)
- Size: 240 × 110 × 40 mm (not including external antennas and joysticks)
- Screen: 5.46 inch, 1080P, 16 million colors, capacitive touch
- Screen Brightness: Herelink Blue 1.0 – 600 nit | Herelink Blue 1.1 – 1000 nit
- Audio: Built-in speaker × 1, built-in microphone × 2

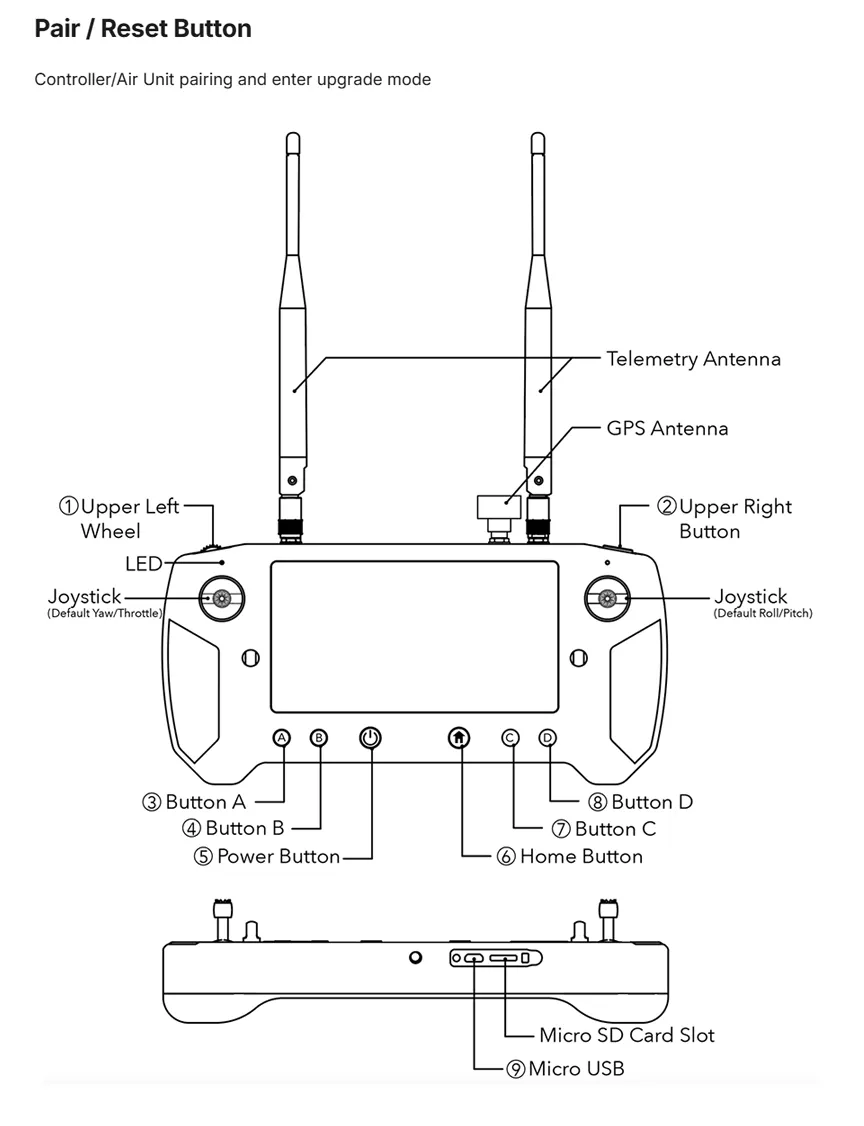

- Remote: Hall effect gimbals with removable sticks × 2, scroll wheel × 1, bottom buttons × 6 with backlight, top button × 1 (right)
- Wireless Communication: Bluetooth / WiFi / 2.4 GHz map transmission ground / 5.8 GHz WiFi
- Indicator Light: Tricolor LED × 2 (upper right and left corners)
- Interface: MicroUSB × 1, Micro SD × 1 (supports up to 64 GB)
- External Antenna: Omnidirectional antenna (3 dBi) × 2, detachable
- Built-in Antenna: Built-in WiFi antenna
- Power: Built-in 4950 mAh LiPo battery
- Charging: Supports micro USB 5 V, 2 A current charging
- Power Consumption: Average ≤ 4 W (picture transmission only, medium screen brightness, WiFi off, GPS off)
Includes
- 1x Herelink Blue v1.1 Controller Unit
- 2x Controller Joystick
- 2x Omni-directional Antenna
- 2x Neck Lanyard Clips
- 1x Neck Lanyard
- 1x Wall Charger
- 1x Micro USB Cable
- 1x Waterproof Storage Case
- 1x GPS Antenna
"Free Shipping" Not Available
Please note that due to the size and/or weight of this product, we can not offer "Free Shipping" for orders containing this product.
More Information
| SKU | G24169US1Z |
|---|---|
| UPC (GTIN) | 723326378973 |
| Manufacturer | CubePilot |
| Country of Manufacture | United States |
| NDAA Compliant | Yes |
| Tx Frequencies | 2.4GHz |
| Radio Controller Style | Full-Size |
