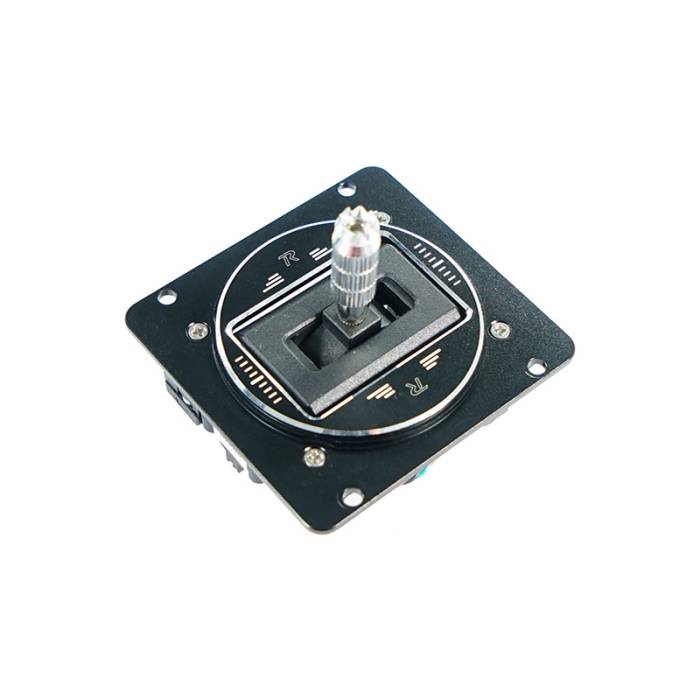

FrSky M7-R Black Hall Sensor Gimbal for FrSky Taranis Q X7
FrSky M7-R hall sensor gimbal is specially designed for FPV racing, 3D and acrobatic fixed wing and 3D Heli pilots who are using the FrSky Taranis Q X7/X7S Transmitter. The shorter 45° throttle throw on the M7-R will allow you to achieve a quicker throttle response compared to the stock gimbals.
Share

About this product

Upgrade your Taranis Q X7 or X7S with this plug-n-play high-resolution M7-R Gimbal from FrSky. The M7-R Gimbal is made specifically for pilots who want faster throttle response, such as in FPV racing or 3D Heli. This is achieved by having only a 45° throttle throw, allowing super fast throttle cuts or punch outs.

Features

  • 45°throttle travel for quick throttle response
  • Hall sensor
  • 4 ball bearings
  • Adjustable tension
  • Ideal for FPV Racing, 3D and acrobatic fixed wing, 3D Heli

Specifications

  • Model: Gimbal M7-R Black
  • Supply Voltage (VCC): DC 3.0±0.5V
  • Sensitivity: 2.50 mV/G
  • Linear Output Voltage Range: 0.1 ~ (VCC +0.1) V
  • Quiescent Output (TA = 25℃, B = 0 G): 0.5 × VCC
  • Noise (no load): ≤40mVpp​
  • Throttle Travel: 45°
  • Position Sensor: Hall
  • Movement: Ball Bearing
  • Stick Tension: Adjustable Spring
  • Stick Height: Adjustable

Includes

  • 1x FrSky M7-R Black Hall Sensor Gimbal for FrSky Taranis Q X7/X7S


More Information

SKU 8414
UPC (GTIN) 652118489286
Manufacturer FrSky
NDAA Compliant No
